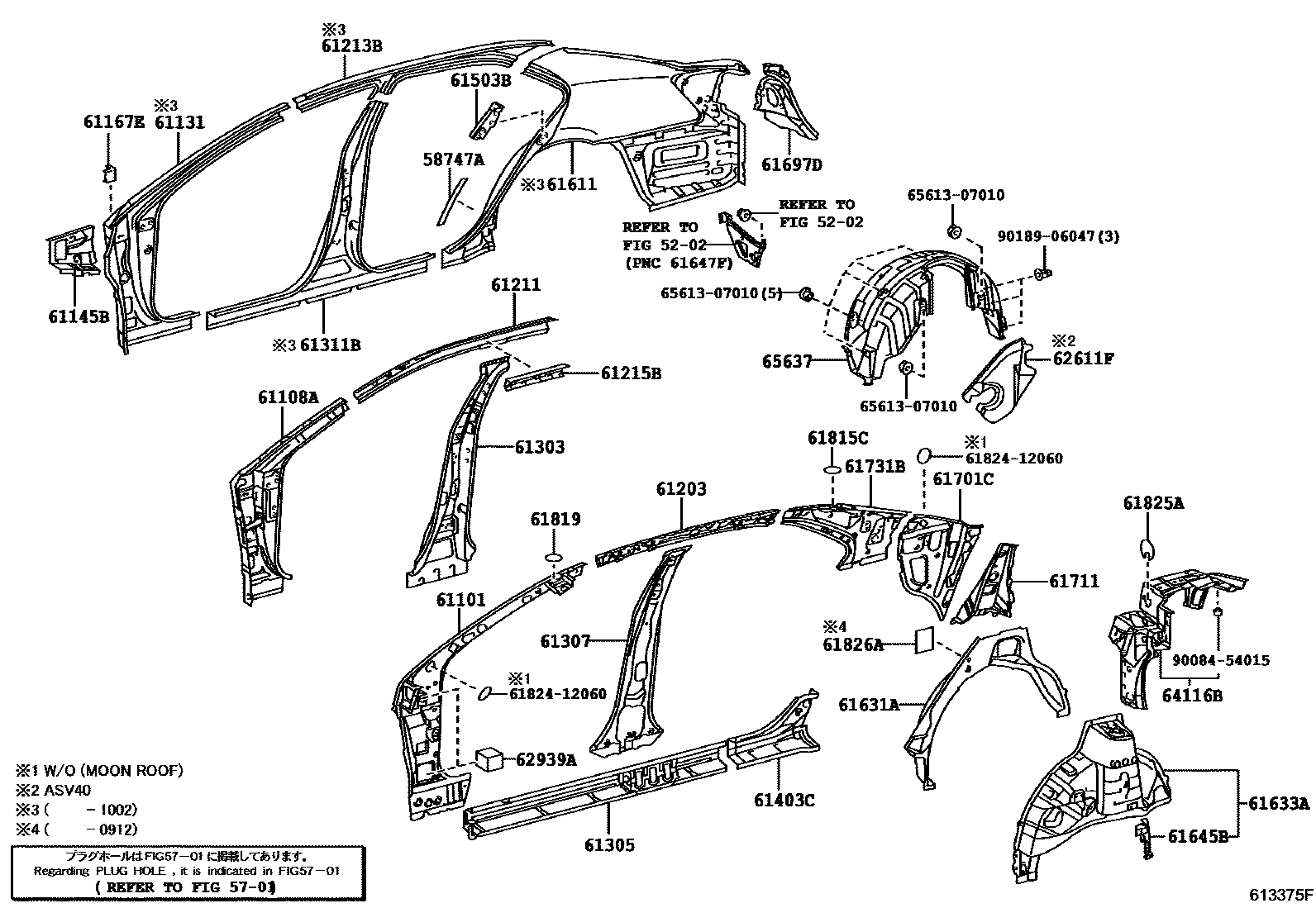

SIDE MEMBER
5202
5701
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
CANADA SPEC
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61167EBRACKET, NO.6 PILLAR OUTER
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
CANADA SPEC
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
CANADA SPEC
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61611PANEL, QUARTER, RH
CANADA SPEC
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61697DHOUSING, QUARTER PANEL END, RH
61701CPANEL SUB-ASSY, ROOF SIDE, OUTER RH
61711PANEL, ROOF SIDE, OUTER RH
sub61711-33070
61731BPANEL, ROOF SIDE, INNER RH
61815CCOVER, ROOF SIDE, INNER UPPER
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
62939ASILENCER, QUARTER VENT
64116BREINFORCEMENT, UPPER BACK, RH
sub64201-33050
65637LINER, REAR WHEEL HOUSE, RH
6182412060PLATE, NOISE CONTROL, NO.1
main61824-12060
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
9008454015
main90084-54015
9018906047
main90189-06047
38 parts on this diagram · 2 diagrams in section
