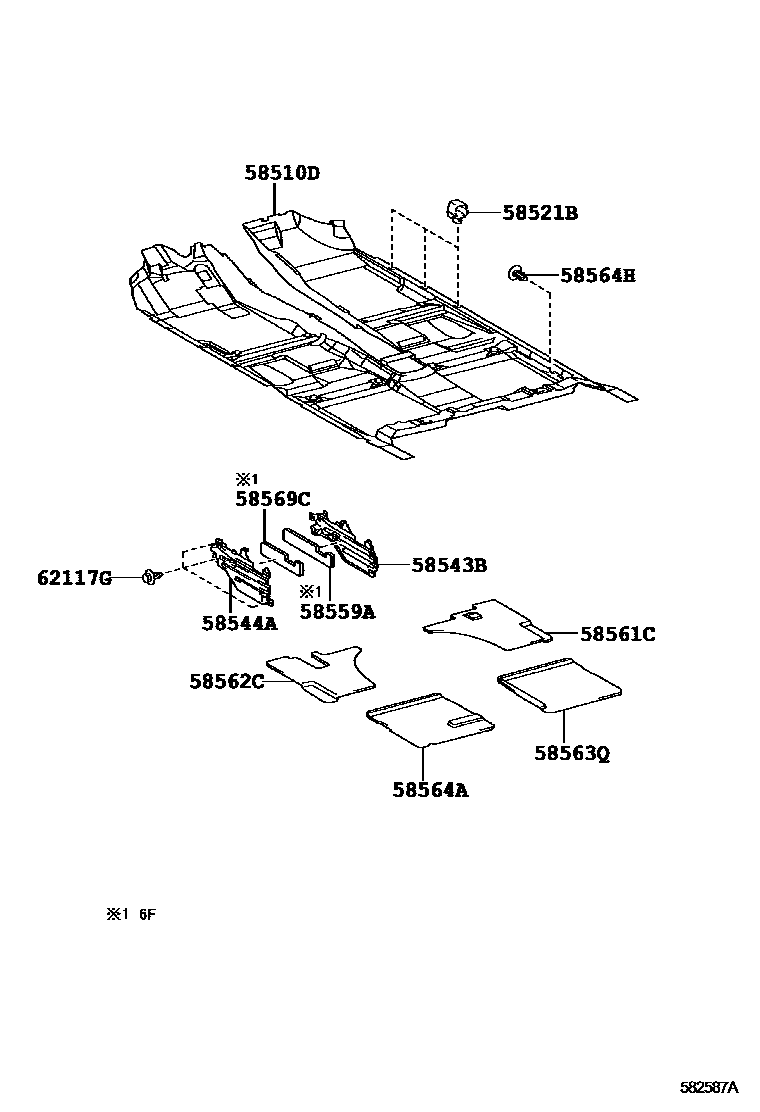

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
MD. GRAY,TRIM14
MD. GRAY,TRIM1#
DK. GRAY FLOOR CARPET,TRIM15
GREGE,TRIM4#
58521BHOOK, FLOOR CARPET
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58559APAD, FRONT FLOOR SIDE, RH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58564HCLIP(FOR REAR FLOOR CARPET)
58569CPAD, FRONT FLOOR SIDE, LH
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
BLACK
12 parts on this diagram · 1 diagram in section
