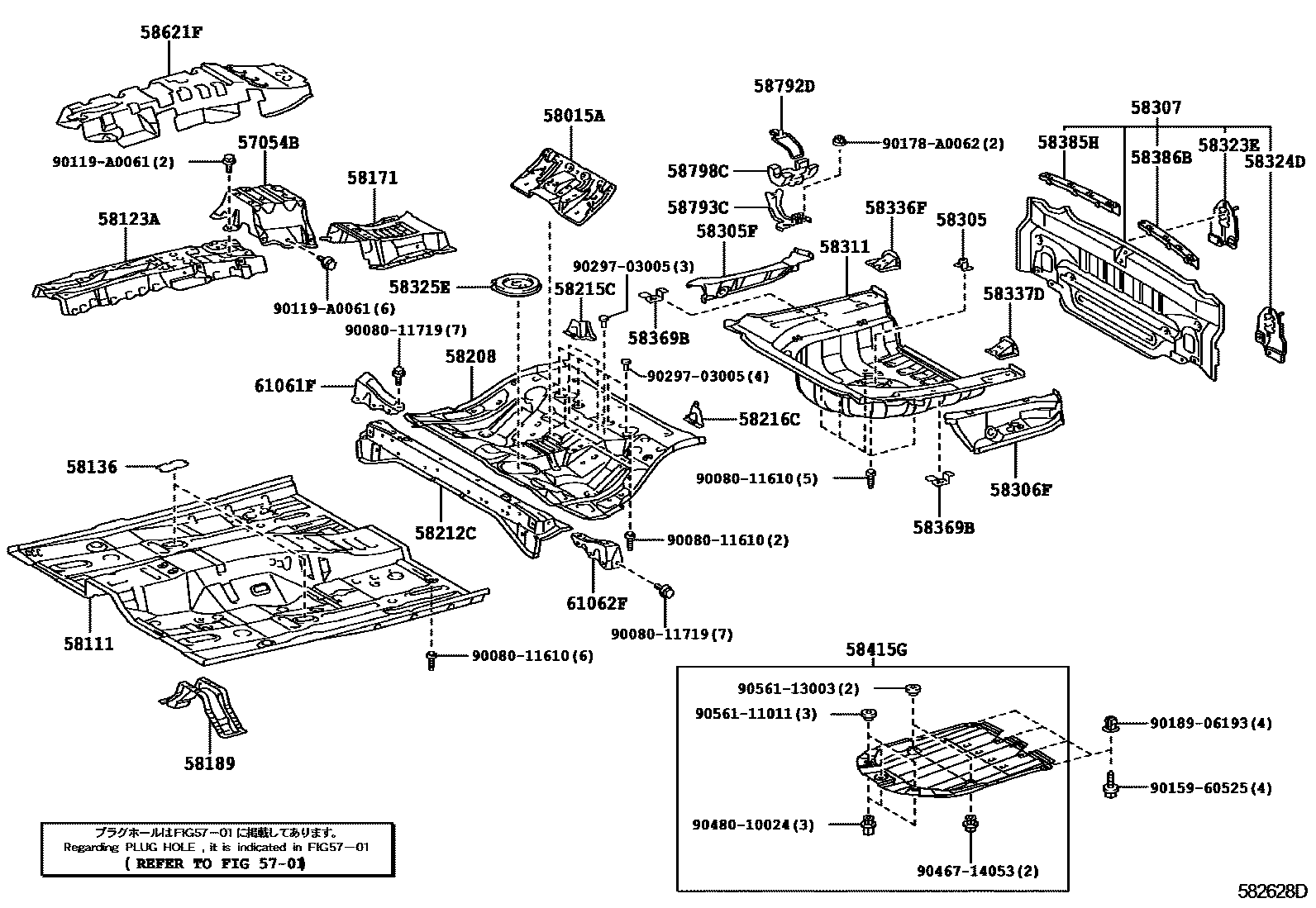

FLOOR PAN & LOWER BACK PANEL
5701
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58111PAN, FRONT FLOOR
sub58111-06061
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58369BBRACKET, FUEL TUBE, NO.3
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58415GBOARD, REAR FLOOR, NO.1
58621FSILENCER, CENTER CONSOLE, NO.1
58792DSUPPORT, JACK
58793CBRACKET, JACK CARRIER, NO.1
58798CCUSHION, JACK CARRIER
61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1
61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2
9008011610
main90080-11610
9008011719
main90080-11719
90119A0061
main90119-A0061
9015960525
main90159-60525
90178A0062
main90178-A0062
9018906193
main90189-06193
9029703005
main90297-03005
9046714053
main90467-14053
9048010024
main90480-10024
9056111011
main90561-11011
9056113003
main90561-13003
43 parts on this diagram · 1 diagram in section
