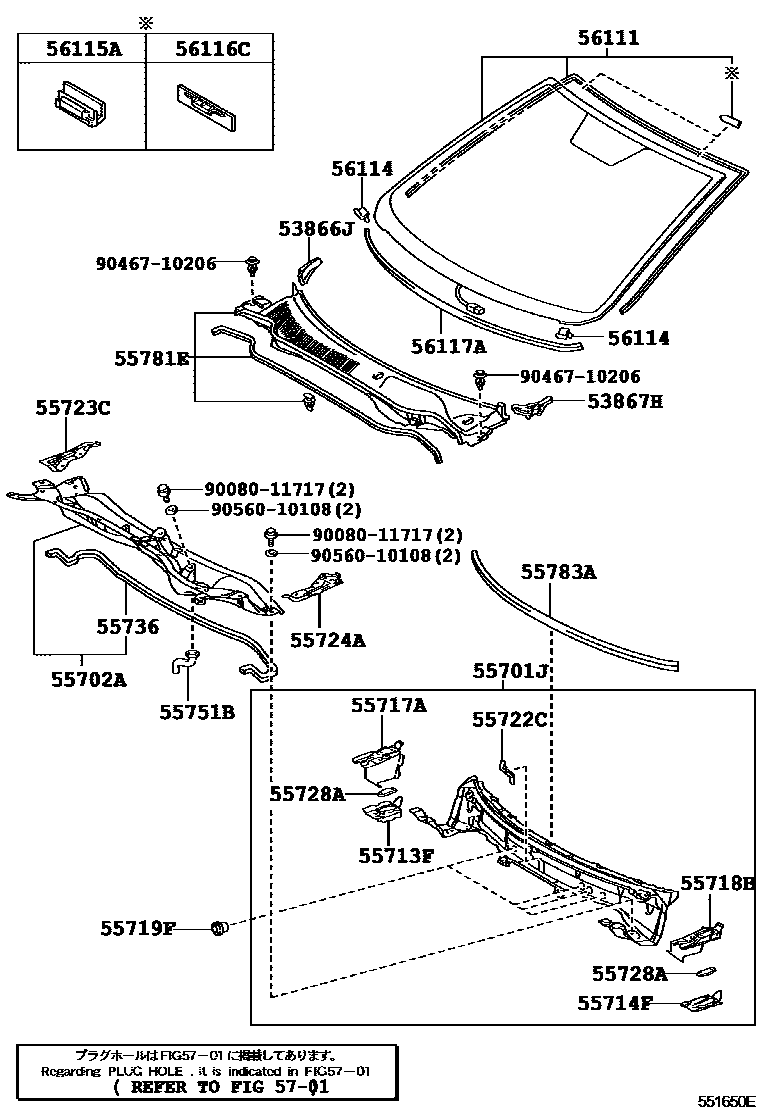

COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06020iASV40,GSV40..NAP200602-201109

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06020iACV40,GSV40..NAP200602-201109

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06120iACV40,GSV40..NAP200602-201109

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-06010iACV40,GSV40..NAP200602-201109

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-06040iACV40,GSV40..NAP200602-201109

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55714-06040iACV40,GSV40..NAP200602-201109

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06060iACV40,GSV40..NAP200602-201109

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06060iACV40,GSV40..NAP200602-201109

55719FPACKING, FRONT LOWER PANEL

main55719-06020iACV40,GSV40..NAP200602-200802

sub55719-33020

main55719-33020iACV40,GSV40..NAP200802-201109

55722CBRACE, COWL TOP TO COWL, INNER

main55721-06010iACV40,GSV40..NAP200602-201109

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06050iACV40,GSV40..NAP200602-201109

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06060iACV40,GSV40..NAP200602-201109

55728AREINFORCEMENT, HOOD STOPPER

main55728-06030iACV40,GSV40..NAP200602-201109

55736SEAL, WATER GUARD PLATE

main55736-06010iACV40,GSV40..NAP200602-201109

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-06010iACV40,GSV40..NAP200602-201109

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06080iASV40,GSV40..NAP200602-201109

55783APAD, COWL TOP SILENCER

main55783-06030iASV40,GSV40..NAP200602-201109

56111GLASS, WINDSHIELD

main56101-06170iACV40,GSV40..NAP..(LE,SE)200602-200903

*LAM,T=4.76,GREEN

sub56101-06171

main56101-06171iASV40,GSV40..NAP..(LE,SE)200903-200909

*LAM,T=4.76,GREEN

sub56101-06172

main56101-06172iASV40,GSV40..NAP..(LE,SE)200910-201109

*LAM,T=4.76,GREEN

main56101-06180iACV40,GSV40..NAP..(LE,SE)200602-200903

*LAM,T=4.76,GREEN

sub56101-06181

main56101-06180iACV40,GSV40..NAP..(LE,SE)200602-200903

*LAM,T=4.76,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS

sub56101-06181

main56101-06181iASV40,GSV40..NAP..XLE200903-200909

*LAM,T=4.76,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS

sub56101-06182

main56101-06181iASV40,GSV40..NAP..(LE,SE)200903-200909

*LAM,T=4.76,GREEN

sub56101-06182

main56101-06182iASV40,GSV40..NAP..(LE,SE)200910-201109

*LAM,T=4.76,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS

main56101-06182iASV40,GSV40..NAP..XLE200910-201109

*LAM,T=4.76,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050iACV40,GSV40..NAP200602-200605

main56114-33050iACV40,GSV40..NAP200606-201109

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iACV40,GSV40..NAP200602-201109

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACV40,GSV40..NAP200602-201109

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06030iACV40,GSV40..NAP200602-200903

L=1480

sub56117-50140

main56117-06030iACV40,GSV40..NAP200602-200903

L=1480,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS

sub56117-50140

main90998-91004iASV40,GSV40..NAP200903-201109

L=1480

main90998-91004iASV40,GSV40..NAP200903-201109

L=1480,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS

5701

9008011717

main90080-11717

9046710206

main90467-10206

9056010108

main90560-10108

26 parts on this diagram · 1 diagram in section
