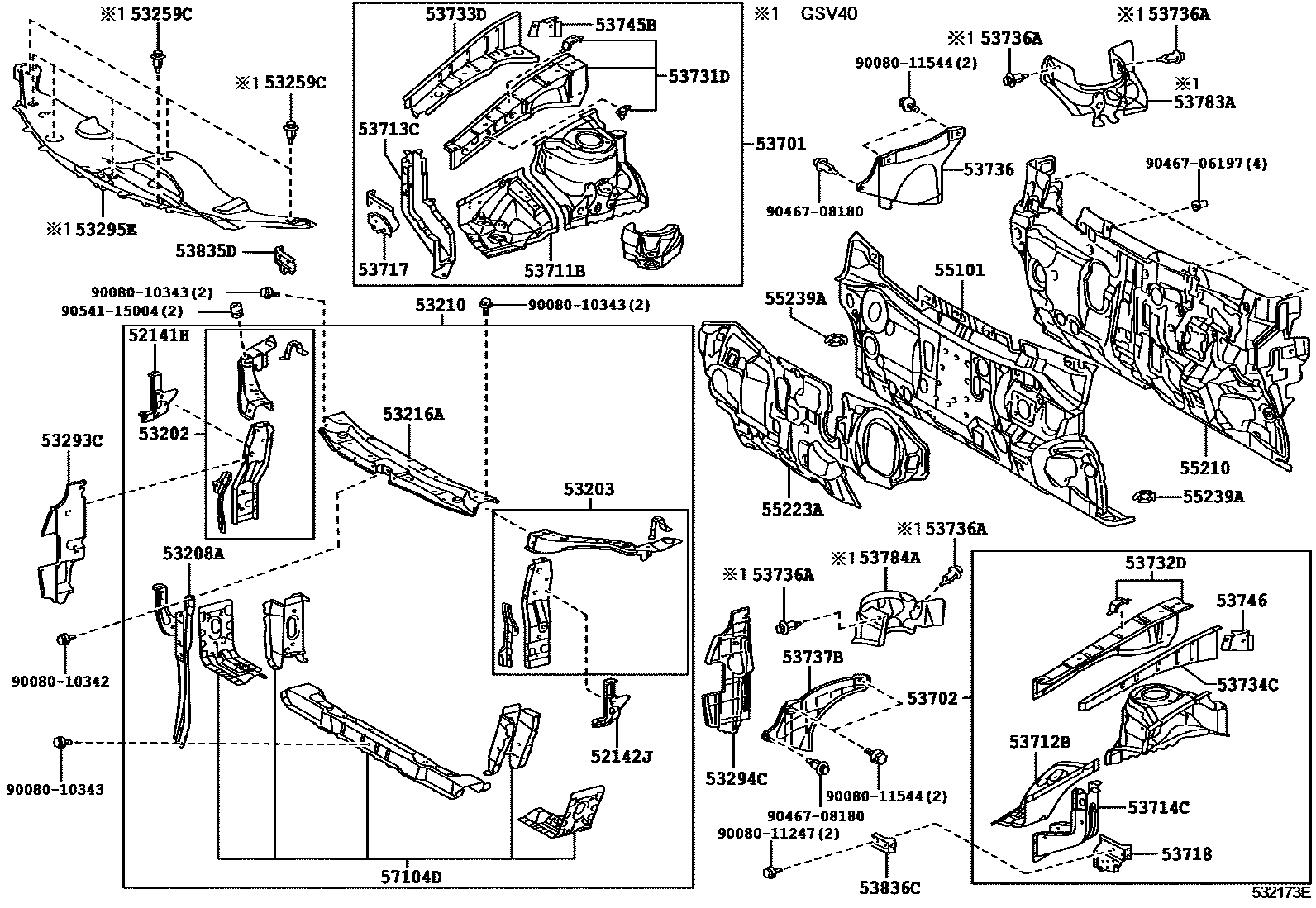

FRONT FENDER APRON & DASH PANEL
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
sub53202-06051
53203SUPPORT SUB-ASSY, RADIATOR, LH
sub53203-06091
53208ASUPPORT SUB-ASSY, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
BLACK
53737BSEAL, FRONT FENDER APRON, LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
55101PANEL SUB-ASSY, DASH
55223AINSULATOR, DASH PANEL, OUTER
55239APLATE, DASH PANEL INSULATOR, NO.3
9008010342
main90080-10342
9008010343
main90080-10343
9008011247
main90080-11247
9008011544
main90080-11544
9046706197
main90467-06197
9046708180
main90467-08180
9054115004
main90541-15004
44 parts on this diagram · 1 diagram in section
