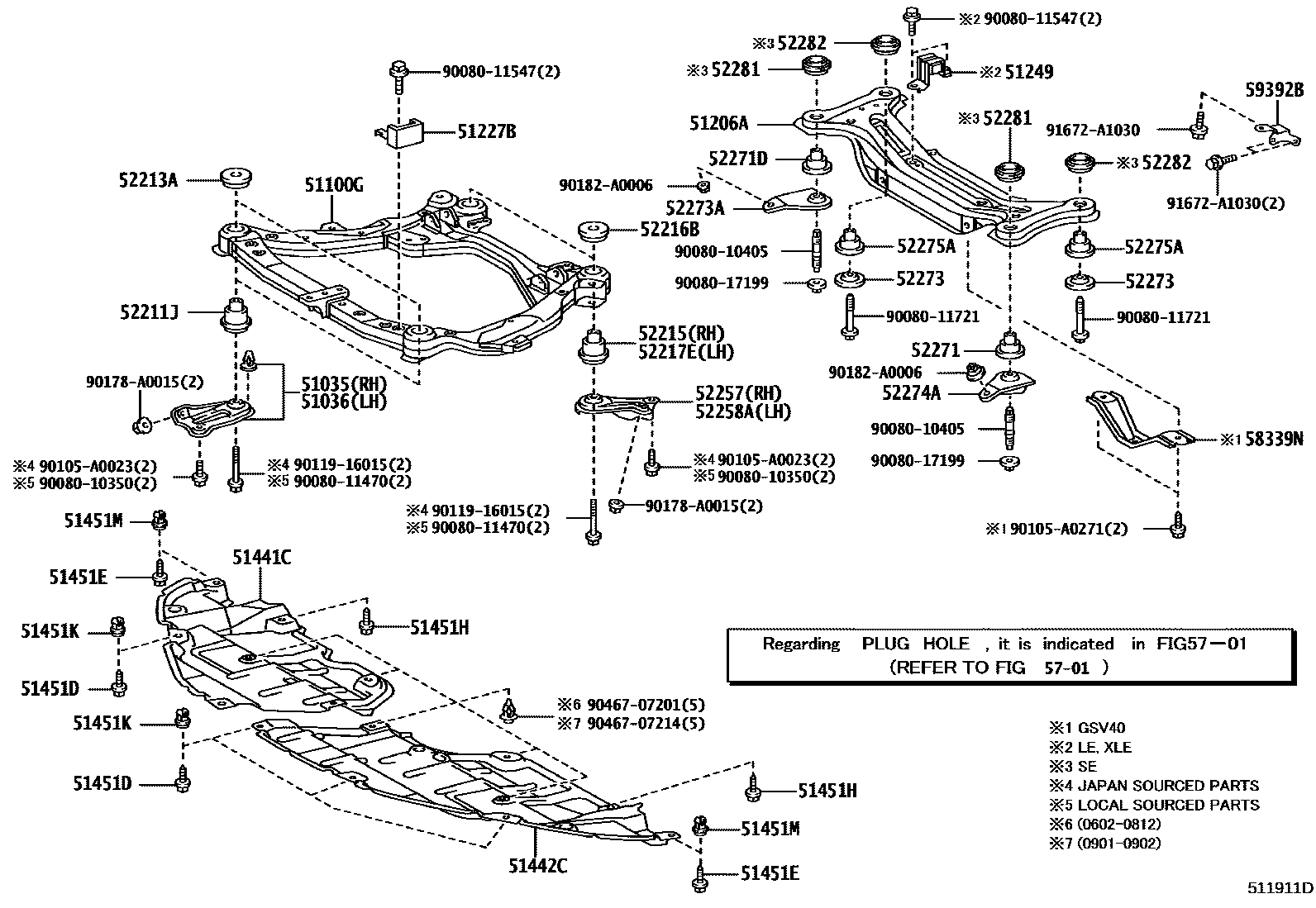

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-07010iACV40,GSV40..NAP200602-201109

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-07010iACV40,GSV40..NAP200602-201109

51100GFRAME ASSY, FRONT

main51100-06050iASV40,GSV40..NAP..6FC200602-201103

sub51100-07030

main51100-06070iACV40..NAP..5F200602-201103

sub51100-06180

main51100-06180iASV40..NAP..6F201103-201109

main51100-07030iASV40,GSV40..NAP..6FC201103-201109

sub51100-07031

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06100iACV40,GSV40..NAP200602-200710

sub51206-06103

main51206-06101iACV40,GSV40..NAP200710-200807

sub51206-06102

main51206-06102iACV40,GSV40..NAP200808-201007

sub51206-06103

main51206-06103iASV40,GSV40..NAP201008-201109

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iACV40,GSV40..NAP200602-201109

51249DAMPER, REAR SUSPENSION MEMBER

main51249-06050iACV40..NAP..(LE,XLE)200602-201004

51441CCOVER, ENGINE UNDER, RH

main51441-06060iACV40,GSV40..NAP200602-200903

main51441-06110iASV40,GSV40..NAP200903-201109

51442CCOVER, ENGINE UNDER, LH

main51442-06050iACV40,GSV40..NAP200602-200903

main51442-06100iASV40,GSV40..NAP200903-201109

51451DSCREW, NO.1

main90159-60525iASV40,GSV40..NAP200602-201109

51451ESCREW, NO.2

main90159-60525iASV40,GSV40..NAP200602-201109

51451HSCREW, NO.3

main90159-60525iACV40,GSV40..NAP200602-201109

51451KGROMMET, SCREW, NO.1

main90189-06193iACV40,GSV40..NAP200602-201109

main90467-09230iACV40,GSV40..NAP200604-200809

51451MGROMMET, SCREW, NO.2

main90189-06193iASV40,GSV40..NAP200602-201109

main90467-09230iACV40,GSV40..NAP200604-200809

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06070iACV40..NAP;GSV40..NAP..SE200602-201109

main52211-06080iGSV40..NAP..(LE,XLE)200602-201109

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06070iASV40..NAP;GSV40..NAP..SE200602-201109

main52213-06080iGSV40..NAP..(LE,XLE)200602-201109

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06060iACV40,GSV40..NAP..SE200602-201109

main52215-07030iACV40,GSV40..NAP..(LE,XLE)200602-201109

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06060iACV40,GSV40..NAP..SE200602-201109

main52216-07020iACV40,GSV40..NAP..(LE,XLE)200602-201109

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06040iACV40,GSV40..NAP..SE200602-201109

main52217-07010iACV40,GSV40..NAP..(LE,XLE)200602-201109

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-07010iACV40,GSV40..NAP200602-201109

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-07010iACV40,GSV40..NAP200602-201109

52271CUSHION, REAR SUSPENSION MEMBER

main52272-06040iACV40,GSV40..NAP..(LE,XLE)200602-201102

sub52272-06041

main52272-06041iASV40,GSV40..NAP..(LE,XLE)201103-201109

main52272-33060iACV40,GSV40..NAP..SE200602-201109

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06050iACV40,GSV40..NAP..(LE,XLE)200602-201102

sub52271-06051

main52271-06051iASV40,GSV40..NAP..(LE,XLE)201103-201109

main52271-33040iASV40,GSV40..NAP..SE200602-201109

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010iACV40,GSV40..NAP200602-201109

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-06010iASV40,GSV40..NAP200602-201109

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-06010iACV40,GSV40..NAP200602-201109

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050iACV40,GSV40..NAP..(LE,XLE)200602-201102

sub52275-06051

main52275-06051iASV40,GSV40..NAP..(LE,XLE)201103-201109

main52275-33060iASV40,GSV40..NAP..SE200602-201109

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33010iACV40,GSV40..NAP..SE200602-201109

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33050iACV40,GSV40..NAP..SE200602-201109

5701

58339NBRACKET, JACK UP

main58339-07010iGSV40..NAP200602-200706

sub58339-07011

main58339-07011iGSV40..NAP200707-201109

59392BRETAINER, REAR FLOOR, NO.2

main59392-33010iACV40,GSV40..NAP200602-201109

9008010350

main90080-10350

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

90105A0023

main90105-A0023

90105A0271

main90105-A0271

9011916015

main90119-16015

90178A0015

main90178-A0015

90182A0006

main90182-A0006

9046707201

main90467-07201

9046707214

main90467-07214

91672A1030

main91672-A1030
