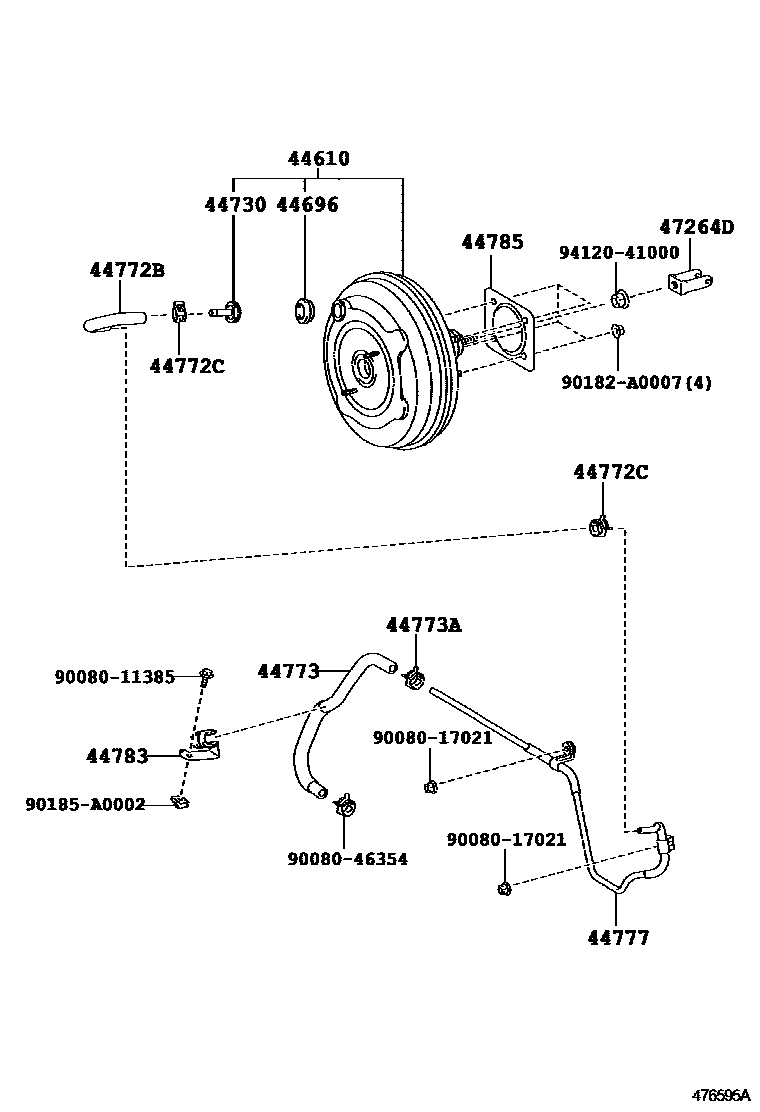

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1CALIFORNIA SPEC

44610BOOSTER ASSY, BRAKE

main44610-06300iACV40,GSV40..NAP200602-200604

sub44610-06301

main44610-06301iACV40,GSV40..NAP200605-200803

sub44610-06302

main44610-06302iACV40,GSV40..NAP200804-200903

main44610-07131iASV40,GSV40..NAP200903-200908

main44610-07132iASV40,GSV40..NAP200908-201109

44696GROMMET, CHECK VALVE

main90080-48071iASV40..NAP..6FC..(LE,XLE)200903-201109

CALIFORNIA SPEC

main90480-24439iACV40,GSV40..NAP200804-200903

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iACV40,GSV40..NAP200804-200903

main44730-22150iASV40,GSV40..NAP200903-201109

CALIFORNIA SPEC

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main90466-A0003

main90467-16014

main44773-06090

main44772-06100

main44772-06120

main44772-06130

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06130iACV40..NAP200602-201109

main44773-06090iGSV40..NAP200602-201109

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90466-A0003iACV40,GSV40..NAP200602-201109

44773HOSE, VACUUM, NO.2

main44772-06140iACV40..NAP200602-200903

main44772-06320iASV40..NAP200903-201109

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90467-16014iACV40..NAP200602-201109

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-06100iACV40..NAP200602-201109

44783CLAMP, VACUUM HOSE

main44783-06060iGSV40..NAP200602-201109

main44783-28010iACV40..NAP200602-200903

44785GASKET, BRAKE BOOSTER

main44785-07010iACV40,GSV40..NAP200602-201109

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iASV40,GSV40..NAP200602-201109

9008011385

main90080-11385

9008017021

main90080-17021

9008046354

main90080-46354

90182A0007

main90182-A0007

90185A0002

main90185-A0002

9412041000

main94120-41000

18 parts on this diagram · 4 diagrams in section
