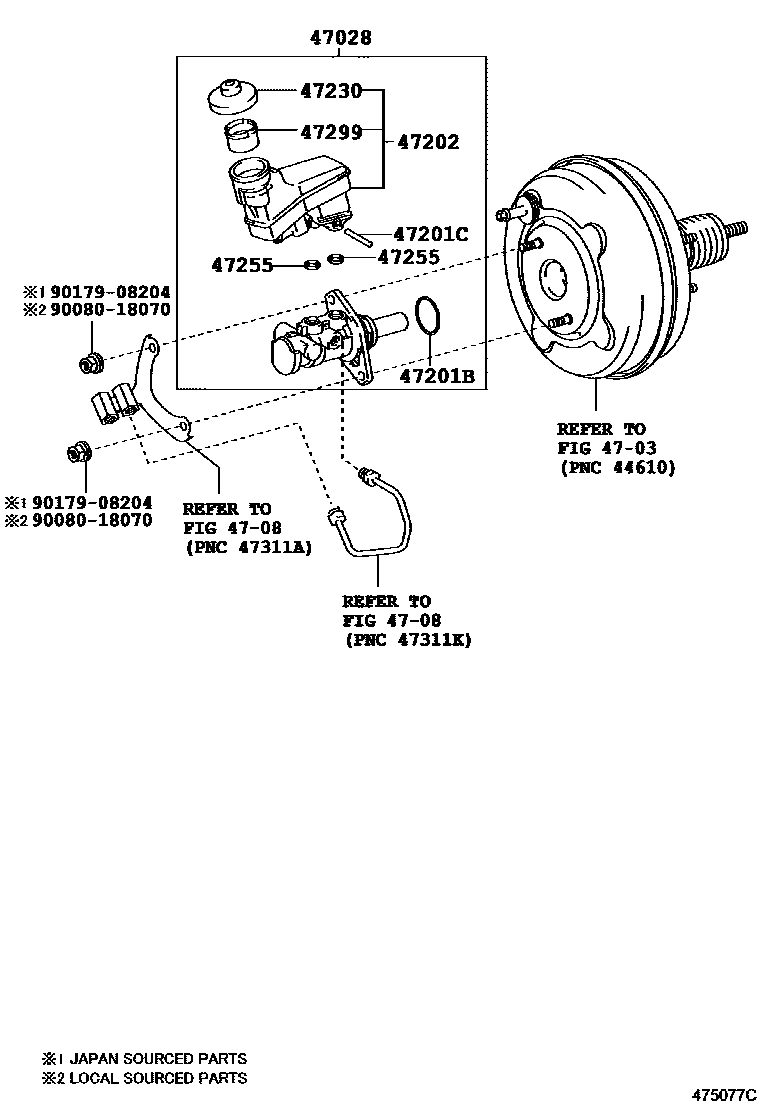

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-06010iACV40..NAP..5F200602-200710

sub47201-06300

main47028-06030iACV40,GSV40..NAP..ATM200602-200710

sub47201-06420

main47201-06300iACV40..NAP..5F200710-200903

sub47201-06301

main47201-06410iASV40..NAP..6F200904-201109

sub47201-06411

main47201-06420iACV40,GSV40..NAP..ATM200710-200903

sub47201-06422

main47201-06430iASV40,GSV40..NAP..6FC200903-201109

sub47201-06432

4703

4708

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iACV40,GSV40..NAP200602-201109

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASV40,GSV40..NAP200602-201109

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06100iACV40..NAP..5F200602-201109

main47220-06230iACV40,GSV40..NAP..ATM200602-201109

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASV40,GSV40..NAP200903-201109

sub47230-01031

main47230-12040iACV40,GSV40..NAP200602-200903

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iACV40,GSV40..NAP200602-201109

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACV40,GSV40..NAP200602-201109

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
