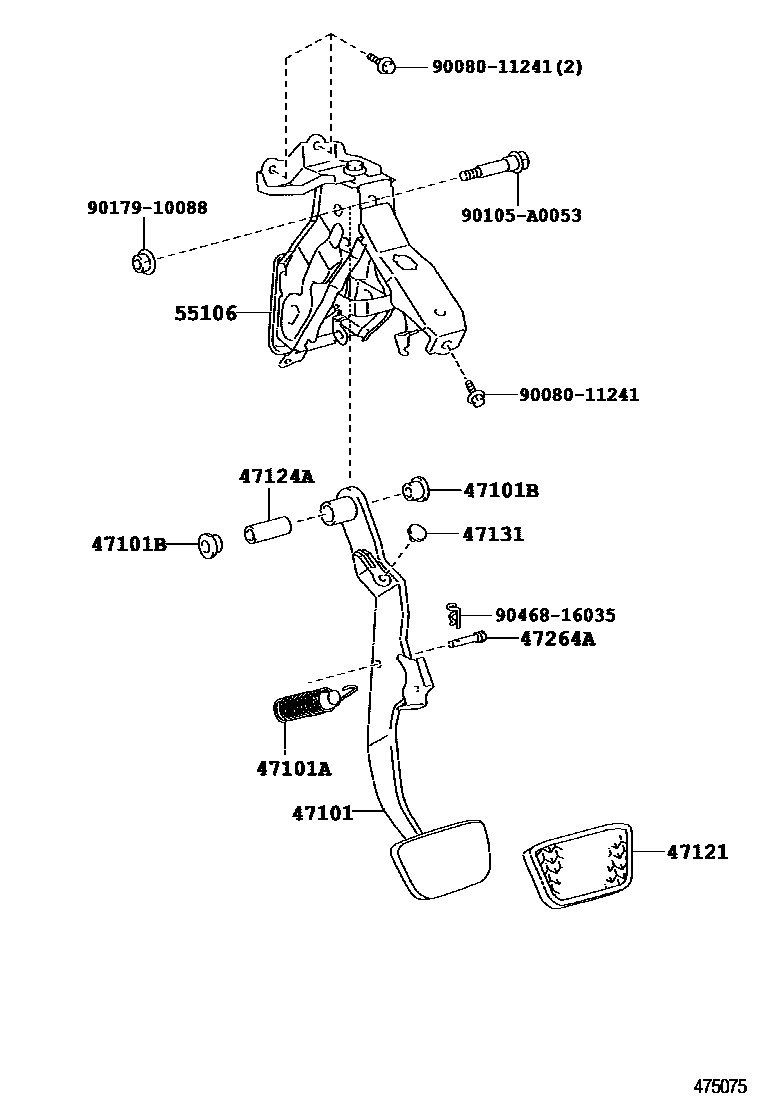

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-06170iACV40,GSV40..NAP..ATM200602-201109

main47101-06180iACV40..NAP..5F200602-201109

main47101-06230iASV40..NAP..6F..SE200904-201109

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14036iASV40,GSV40..NAP200602-201109

47101BBUSH(FOR BRAKE PEDAL)

main90080-38144iACV40,GSV40..NAP200602-201109

47121PAD, BRAKE PEDAL

main31321-52010iACV40..NAP..5F200602-201109

main31321-53010iASV40..NAP..6F..SE200904-201109

main47121-0E010iASV40,GSV40..NAP..6FC..(LE,XLE)200602-201109

main47121-53010iASV40,GSV40..NAP..6FC..SE200903-201109

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90080-38147iACV40,GSV40..NAP200602-201109

47131CUSHION(FOR STOP LAMP SWITCH)

main90080-54033iACV40,GSV40..NAP200602-201109

47264APIN(FOR PUSH ROD)

main90249-08256iACV40,GSV40..NAP200602-201109

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-06070iACV40,GSV40..NAP200602-201109

9008011241

main90080-11241

90105A0053

main90105-A0053

9017910088

main90179-10088

9046816035

main90468-16035

12 parts on this diagram · 1 diagram in section
