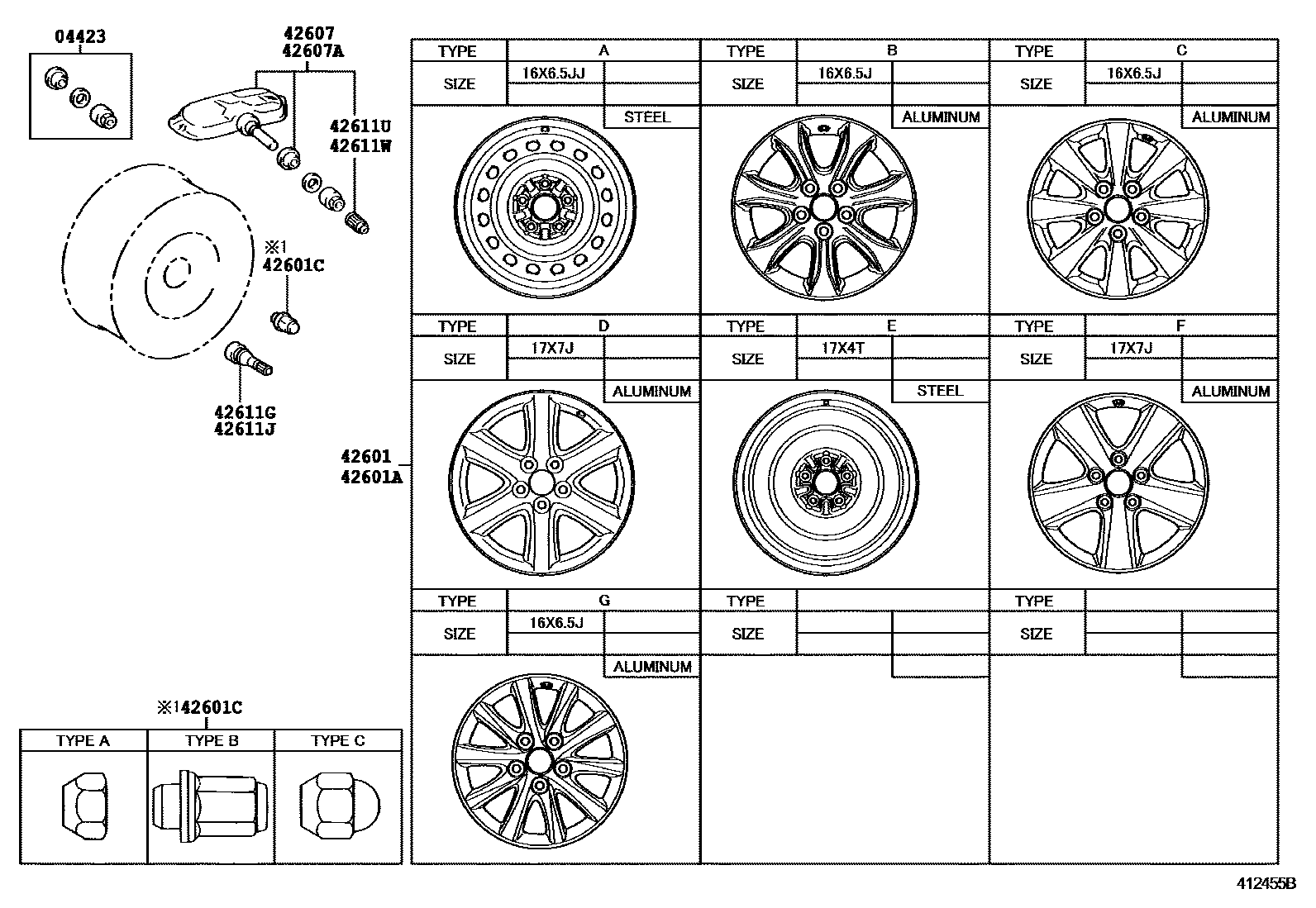

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
16X6.5JJ,#,TYPE A:REFER ILLUST.
16X6.5J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE F:REFER ILLUST.
16X6.5J,#,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/60R16 6.5J ALU(ACCESSORY PART),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/60R16 SUMMER TIRE 94V 6.5J ALUMINUM,TYPE B:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P215/60R16 6.5J ALUMI(ACCESSORY PART),TYPE B:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P215/60R16 ALL SEASON TIRE 94V 6.5J ALU.,TYPE B:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P215/60R16 ALL SEASON TIRE 94V 6.5J ALU,TYPE B:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P215/60R16 SUMMER TIRE 94V 6.5J ALU,TYPE B:REFER ILLUST.
sub90942-A1009
TYPE C:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-06012
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
10 parts on this diagram · 3 diagrams in section
