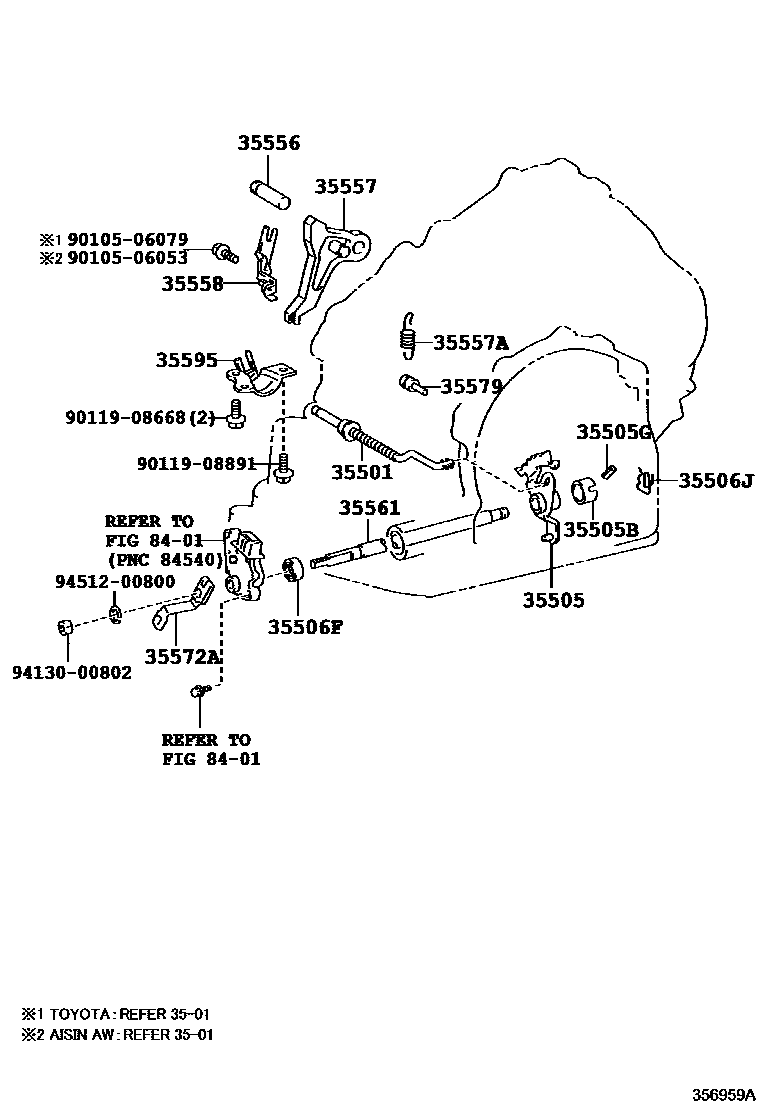

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U250E 0002 1U660E 0003 1U760E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV40..NAP..5FC¥1,720200602-200903

main35501-33020iASV40,GSV40..NAP..6FC¥1,010200602-201109

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV40..NAP..5FC¥1,760200602-200903

main35505-33010iGSV40..NAP¥1,850200602-200810

sub35505-33011¥1,860

main35505-33011iGSV40..NAP¥1,860200810-201109

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV40..NAP..5FC¥230200602-200903

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV40..NAP..5FC¥160200602-201109

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASV40..NAP..6FC¥1,710200903-201109

AISIN AW:REFER 35-01

main35506-73011iASV40..NAP..6FC200903-201109

TOYOTA:REFER 35-01

sub35506-33011¥1,710

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV40..NAP..5FC¥270200602-201109

(J)

main90311-A0009iGSV40..NAP200709-201109

(L)

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV40..NAP..5FC¥170200602-200903

main90524-09002iGSV40..NAP¥100200602-201109

(J)

main90524-A0001iGSV40..NAP200709-201109

(L)

35556SHAFT, PARKING LOCK PAWL

main35556-07030iGSV40..NAP200709-200808

(L)

sub35556-33010¥460

main35556-28020iACV40..NAP..5FC¥600200801-200903

AISIN AW:REFER 35-01

main35556-32030iACV40..NAP..5FC¥740200602-200903

TOYOTA:REFER 35-01

main35556-33010iGSV40..NAP¥460200602-200903

(J)

main35556-33010iGSV40..NAP¥460200903-201109

TOYOTA:REFER 35-01

main35556-33020iASV40..NAP..6FC¥460200903-201109

AISIN AW:REFER 35-01

35557PAWL, PARKING LOCK

main35557-33020iGSV40..NAP¥4,460200602-201109

sub35557-33021¥3,090

main35557-73010iASV40..NAP..6FC¥3,090200903-201109

main35590-32010iACV40..NAP..5FC¥4,100200602-200903

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACV40..NAP..5FC¥140200602-200903

35558CLAMP, PAWL SHAFT

main35558-28020iACV40..NAP..5FC¥340200801-200903

AISIN AW:REFER 35-01

main35558-32010iACV40..NAP..5FC¥430200602-200903

TOYOTA:REFER 35-01

main35558-33010iGSV40..NAP¥270200602-200903

main35558-33010iGSV40..NAP¥270200903-201109

TOYOTA:REFER 35-01

main35558-33020iASV40..NAP..6FC¥270200903-201109

AISIN AW:REFER 35-01

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV40..NAP..5FC¥2,480200602-200903

main35561-33020iGSV40..NAP¥2,710200602-201109

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-07020iGSV40..NAP200709-200908

(L)

sub35572-08020

main35572-08020iGSV40..NAP200908-201109

main35572-33020iGSV40..NAP¥670200602-201109

(J)

main35572-33040iACV40..NAP..5FC¥1,070200602-200903

TOYOTA:REFER 35-01

main35572-33050iACV40..NAP..5FC¥1,040200801-200903

AISIN AW:REFER 35-01

35579PIN, PARKING LOCK PAWL

main35594-21010iACV40..NAP..5FC¥360200602-200903

TOYOTA:REFER 35-01

main35594-28010iACV40..NAP..5FC¥290200801-200903

AISIN AW:REFER 35-01

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV40..NAP..5FC¥1,500200602-200903

8401

9010506053

main90105-06053¥70

9010506079

main90105-06079¥70

9011908668

main90119-08668¥100

9011908891

main90119-08891¥120

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

22 parts on this diagram · 3 diagrams in section
