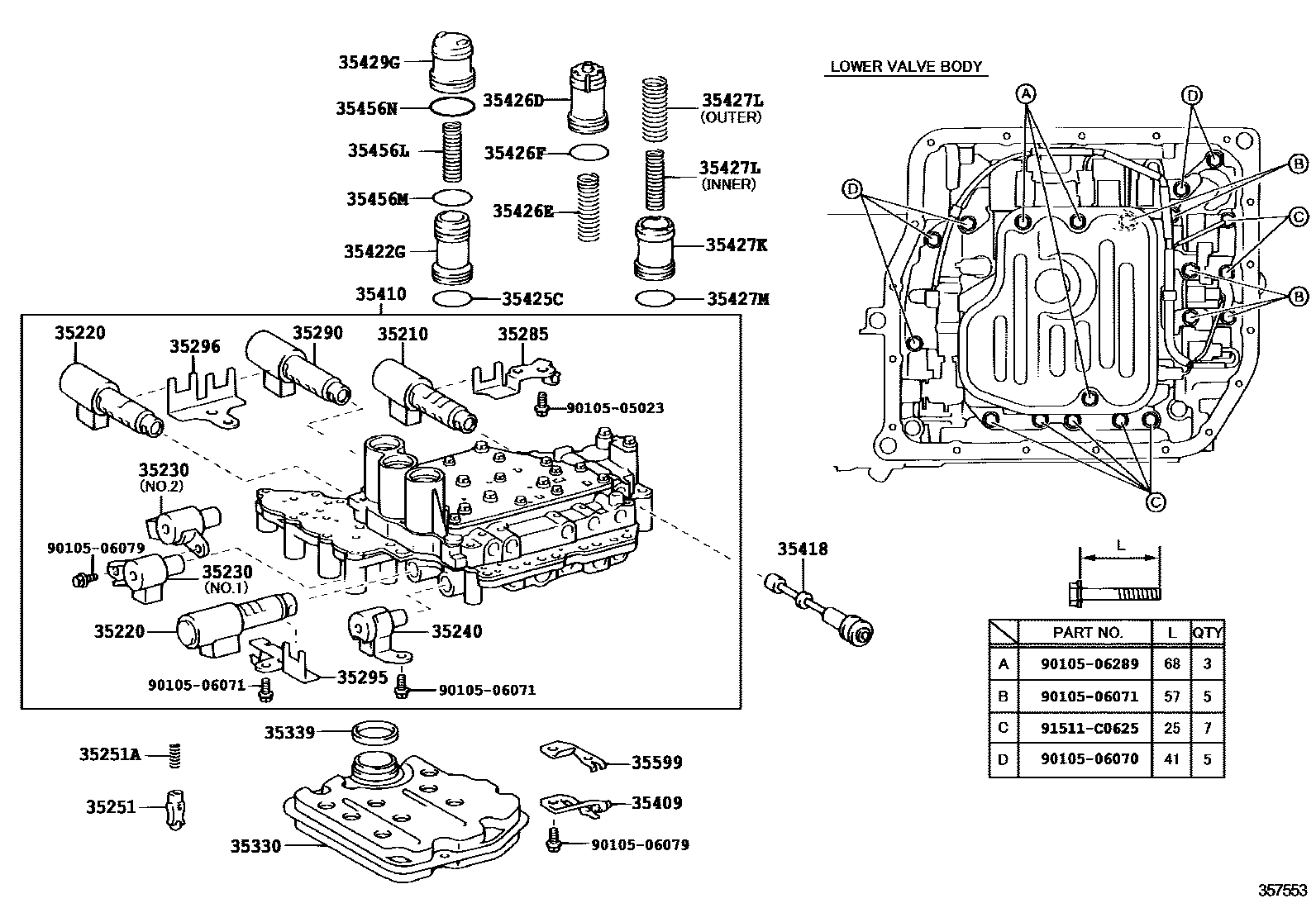

VALVE BODY & OIL STRAINER (ATM)
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
NO.1
NO.2
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35285PLATE, SOLENOID LOCK
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
35295PLATE, SOLENOID LOCK, NO.2
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
35296PLATE, SOLENOID LOCK, NO.3
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
35339GASKET, OIL STRAINER
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
sub35410-33171
AISIN AW:REFER 35-01
sub35410-33151
sub35410-33171
(J)
AISIN AW:REFER 35-01
35422GPISTON, REVERSE CLUTCH ACCUMULATOR
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427KPISTON, B-3 ACCUMULATOR
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
INNER
OUTER
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35429GSLEEVE, REVERSE CLUTCH ACCUMULATOR
35456LSPRING, COMPRESSION (FOR C-2 CONTROL VALVE)
35456MRING, O (FOR C-2 CONTROL)
35456NRING, O (FOR C-2 CONTROL)
35599COVER, MANUAL DETENT SPRING
9010505023
main90105-05023
9010506070
main90105-06070
9010506071
main90105-06071
9010506079
main90105-06079
9010506289
main90105-06289
91511C0625
main91511-C0625
34 parts on this diagram · 6 diagrams in section
