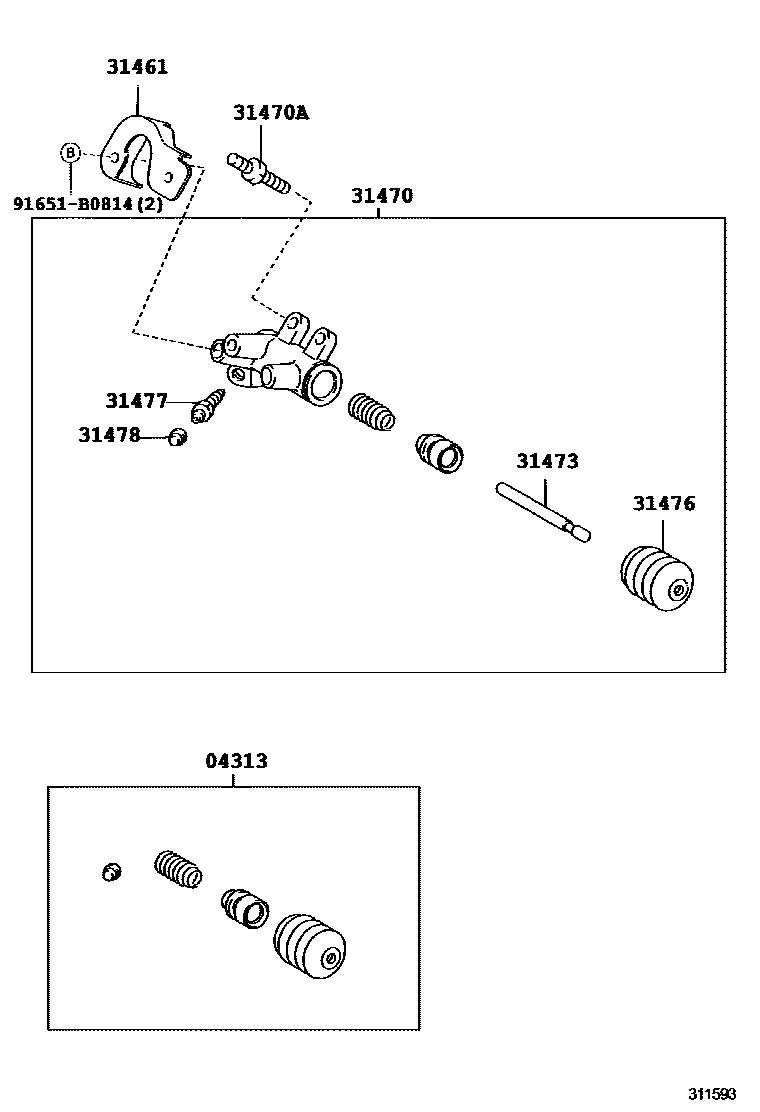

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52020iACV40..NAP..5F¥780200602-200903

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-42011iACV40..NAP..5F¥1,000200602-200903

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-42031iACV40..NAP..5F¥7,400200602-200903

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iACV40..NAP..5F¥80200602-200903

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iACV40..NAP..5F¥520200602-200903

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACV40..NAP..5F¥230200602-200903

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACV40..NAP..5F¥200200602-200903

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACV40..NAP..5F¥160200602-201109

91651B0814

main91651-B0814¥120

9 parts on this diagram · 2 diagrams in section
