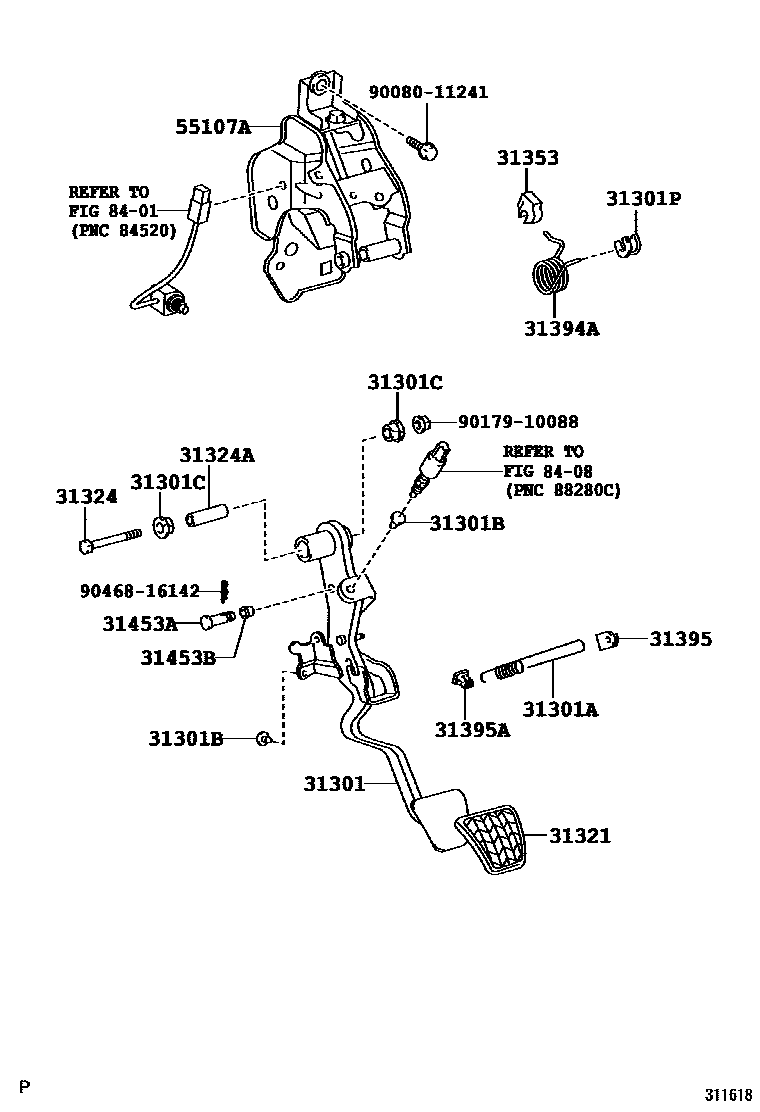

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33070iACV40..NAP..5F200602-200903

main31301-33100iASV40..NAP..6F..LE200904-201109

main31301-33110iASV40..NAP..6F..SE200904-201109

31301ASPRING(FOR CLUTCH PEDAL)

main90905-06079iACV40..NAP..5F200602-200903

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACV40..NAP..5F200602-201109

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACV40..NAP..5F200602-201109

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iACV40..NAP..5F200602-200903

31321PAD, CLUTCH PEDAL

main31321-52010iACV40..NAP..5F200602-201109

main31321-53010iASV40..NAP..6F..SE200904-201109

31324SHAFT, CLUTCH PEDAL

main90101-10164iACV40..NAP..5F200602-201109

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10105iACV40..NAP..5F200602-201109

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iACV40..NAP..5F200602-200903

main31353-33010iASV40..NAP..6F200904-201109

NO.1

main31353-33020iASV40..NAP..6F200904-201109

NO.2

31394ASPRING, PEDAL W/HOOK

main31394-33040iACV40..NAP..5F200602-200903

main31394-33060iASV40..NAP..6F200904-201109

31395HOOK, PEDAL SPRING

main31395-33010iACV40..NAP..5F200602-200903

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iACV40..NAP..5F200602-200903

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iACV40..NAP..5F200602-201109

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iACV40..NAP..5F200602-201109

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33060iACV40..NAP..5F200602-201109

8401

8408

9008011241

main90080-11241

9017910088

main90179-10088

9046816142

main90468-16142

20 parts on this diagram · 4 diagrams in section
