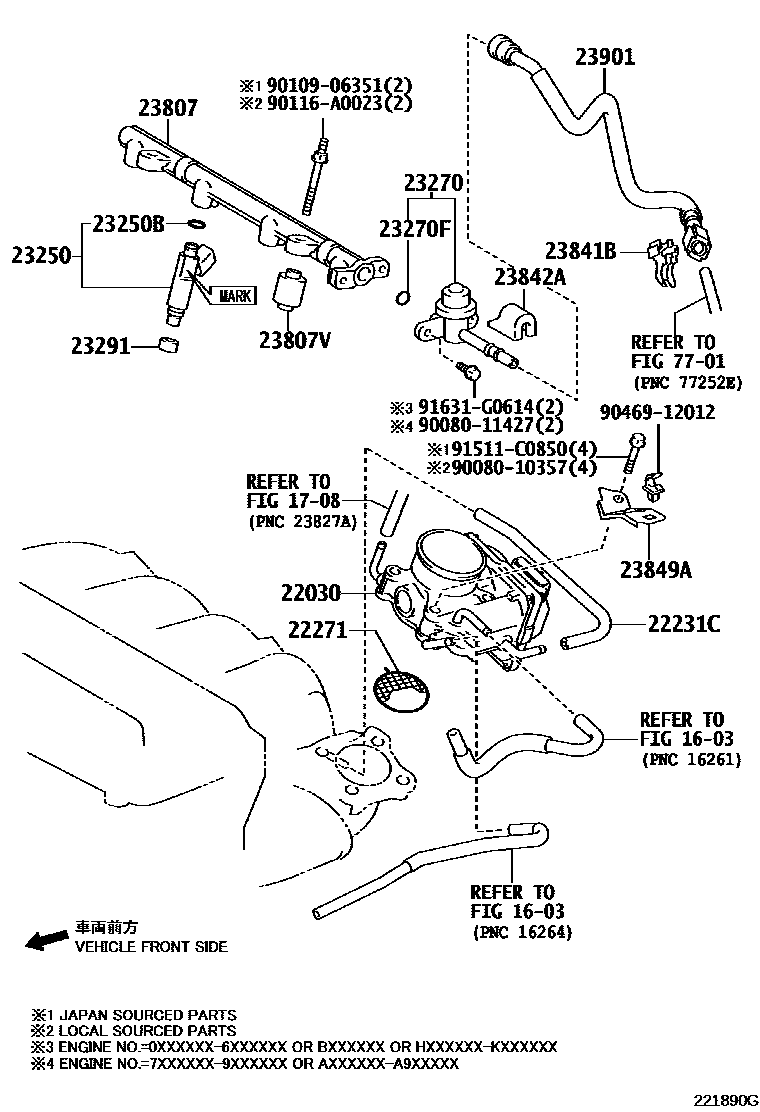

FUEL INJECTION SYSTEM
1603
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
*212
*107
22231CHOSE, THROTTLE BODY, NO.1
*195,*108
22271GASKET, THROTTLE BODY
(L),*195,(L),*108
*212
*107
(J),*195,(J),*108
CALIFORNIA SPEC,*195,*108
23250INJECTOR ASSY, FUEL
*212
*108,MARK23250-0H030
(L)
*195,MARK23250-28080,*108,MARK23250-28080
(J)
*107
23250BRING, O(FOR FUEL INJECTOR)
*195,*108
*107,*212
*195,*108
23270DAMPER ASSY, FUEL PRESSURE PULSATION
*195,*108
23270FRING, O(FOR PULSATION DAMPER)
*195,*108
*107,*212
23291INSULATOR, INJECTOR VIBRATION
(L),*212
*107,(J),*212
*195,*108
23807VSPACER, NO.1(FOR DELIVERY PIPE)
*195,*108
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
(L),*195,(L),*108
(J),*195,(J),*108
23901TUBE SUB-ASSY, FUEL
7701
9008010357
main90080-10357
9008011427
main90080-11427
9010906351
90116A0023
main90116-A0023
9046912012
91511C0850
91631G0614
24 parts on this diagram · 3 diagrams in section
