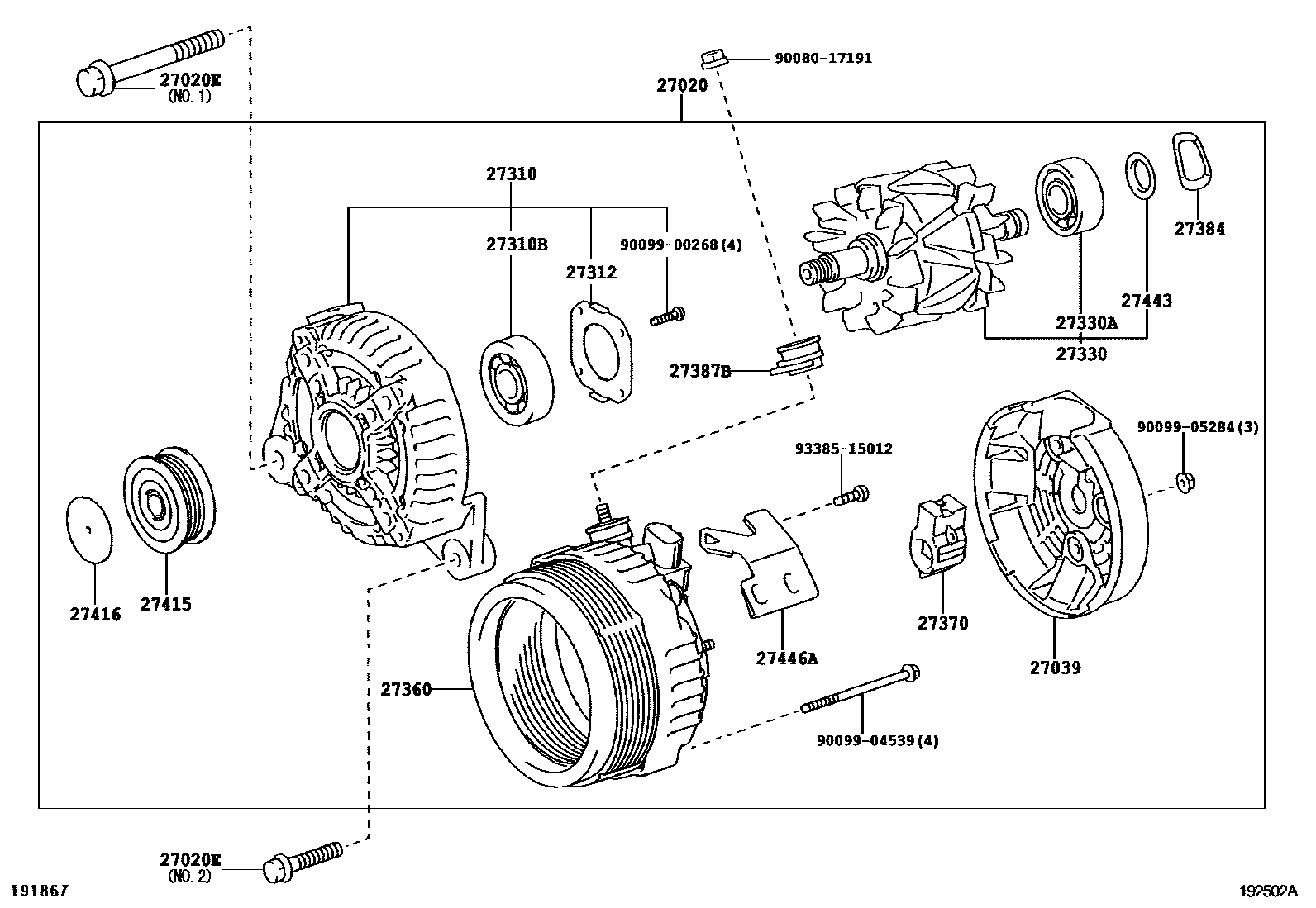

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
12V 100A
12V 100A
27020EBOLT(FOR ALTERNATOR)
(L),NO.1
NO.1
NO.2
(L),NO.2
NO.2
NO.1
(J),NO.1
(J),NO.2
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27416CAP, ALTERNATOR PULLEY
27443COVER, ALTERNATOR BEARING
27446ACLAMP
9008017191
main90080-17191
9009900268
main90099-00268
9009904539
main90099-04539
9009905284
main90099-05284
9338515012
main93385-15012
21 parts on this diagram · 3 diagrams in section
