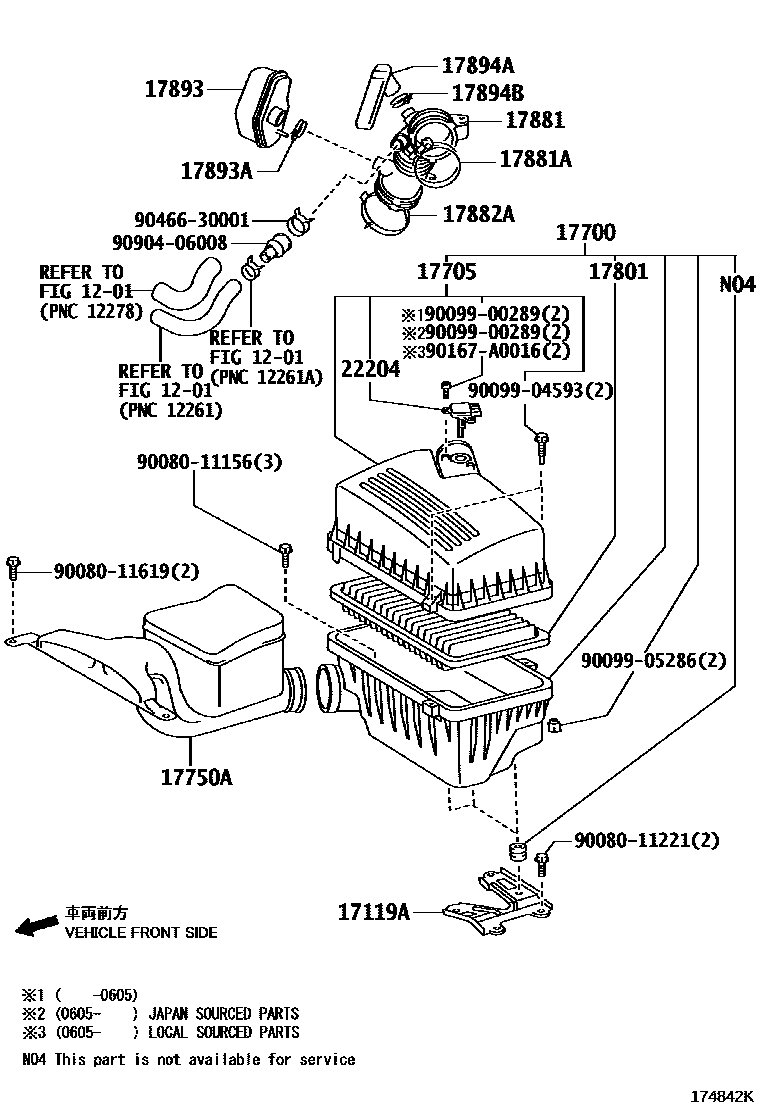

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
sub17700-0H101
sub17700-0H102
sub17700-0H103
sub17700-AD014
sub17700-AD015
sub17700-AD016
17705CAP SUB-ASSY, AIR CLEANER
sub17705-0H101
sub17705-0H102
sub17705-0H103
sub17705-AD014
sub17705-AD015
sub17705-AD016
17750AINLET ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
9008011156
main90080-11156
9008011221
main90080-11221
9008011619
main90080-11619
9009900289
main90099-00289
9009904593
main90099-04593
9009905286
main90099-05286
90167A0016
main90167-A0016
9046630001
main90466-30001
9090406008
main90904-06008
23 parts on this diagram · 3 diagrams in section
