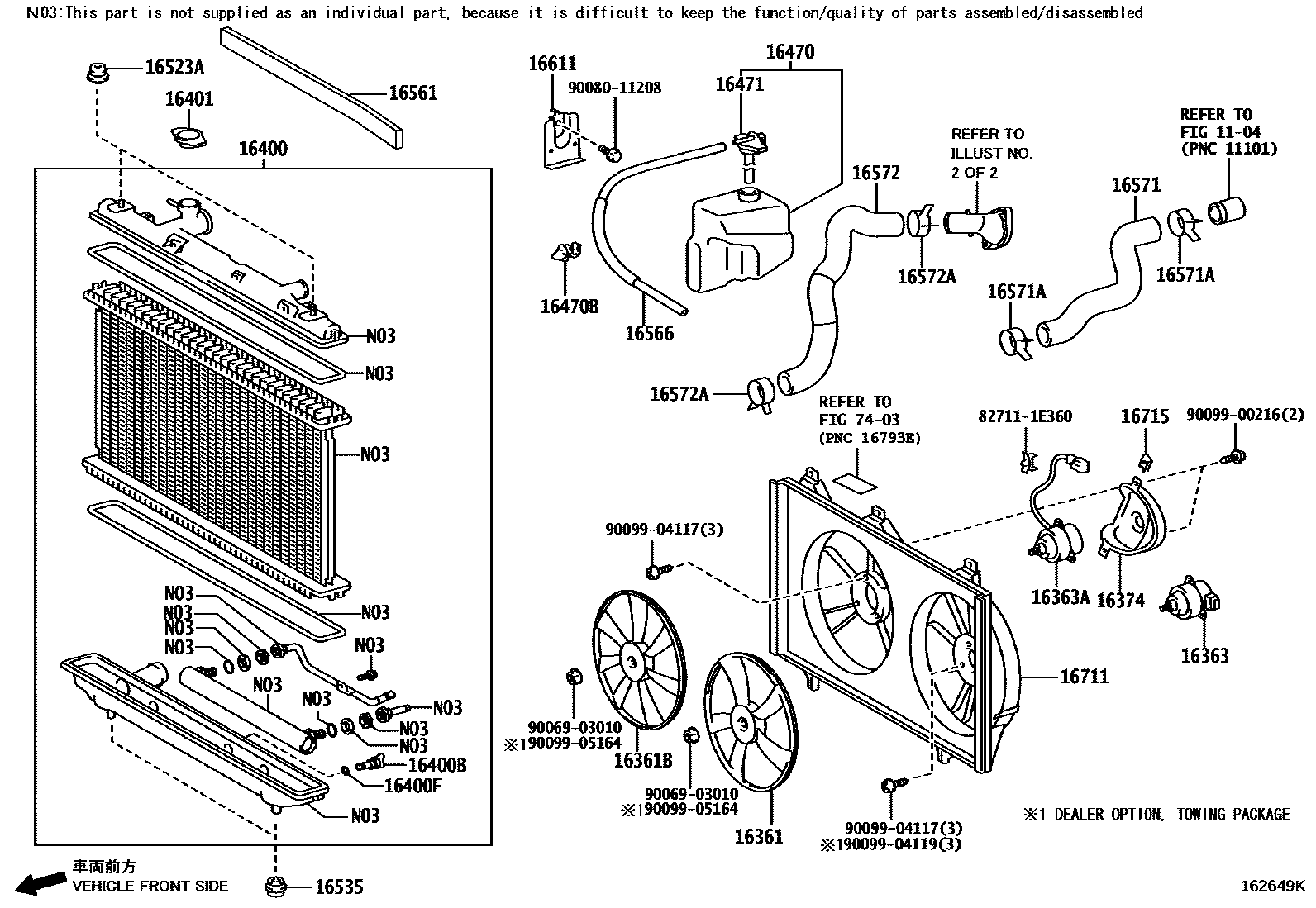

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1W(ENGINE OIL COOLER) 0006 1 0007 1DEALER OPTION, TOWING PACKAGE0008 1

1104

16361FAN

main16361-0H090i2ARFE..ASV40..NAP200602-201108

sub16361-0V400

main16361-AD010i2GRFE..GSV40..NAP200602-201109

16361BFAN, NO.2

main16361-0H100i2ARFE..ASV40..NAP200602-201108

sub16361-0V410

main16361-AD020i2GRFE..GSV40..NAP200602-201109

16363MOTOR, COOLING FAN

main16363-0A120i2GRFE..GSV40..NAP200602-201109

main16363-0H010i2AZFE..ACV40..NAP200602-201109

sub16363-23010

16363AMOTOR, COOLING FAN, NO.2

main16363-0H070i2AZFE..ACV40..NAP200602-201109

sub16363-28230

main16363-0P030i2GRFE..GSV40..NAP200602-201109

16374INSULATOR, COOLING FAN MOTOR

main16366-28130i2AZFE..ACV40..NAP200602-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

16400RADIATOR ASSY

main16400-0H210i2AZFE..ACV40..NAP..5FC200602-200903

main16400-0H240i2AZFE..ACV40..NAP..5F200602-200903

main16400-0V070i2ARFE..ASV40..NAP200903-201109

main16400-AD010i2GRFE..GSV40..NAP200602-201109

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2AZFE..ACV40..NAP200602-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

main16417-21280i2ARFE..ASV40..NAP200903-201109

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFE..GSV40..NAP200602-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

main16492-21050i2GRFE..GSV40..NAP200903-201109

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2AZFE..ACV40..NAP200807-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

main16401-31480i2GRFE..GSV40..NAP200904-201109

main16401-62100i2AZFE..ACV40..NAP200602-200806

FAN & COUPLING-TOWING PACKAGE(DOP)

sub16401-31520

main16401-62100i2GRFE..GSV40..NAP200903-200904

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-0P020i2GRFE..GSV40..NAP200602-201109

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90469-12014i2AZFE..ACV40..NAP200602-201109

16471CAP SUB-ASSY, RESERVE TANK

main16471-AA010i2AZFE..ACV40..NAP200602-201109

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010i2GRFE..GSV40..NAP200903-201109

main16523-AD010i2GRFE..GSV40..NAP200602-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

16535SUPPORT, RADIATOR, LOWER

main16535-0A050i2GRFE..GSV40..NAP200602-201109

main16535-0H030i2AZFE..ACV40..NAP200602-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

main16535-0V010i2ARFE..ASV40..NAP200903-201109

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0H010i2AZFE..ACV40..NAP200602-201109

sub16561-0V080

main16561-0P020i2GRFE..GSV40..NAP200602-201109

16566HOSE, RESERVE TANK OUTLET

main16566-0H010i2GRFE..GSV40..NAP200602-201109

16571HOSE, RADIATOR, INLET

main16571-0H100i2AZFE..ACV40..NAP200602-200903

main16571-0P070i2GRFE..GSV40..NAP200602-201109

main16571-0V060i2ARFE..ASV40..NAP200903-201109

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90080-46344i2GRFE..GSV40..NAP200602-201103

main90466-A0020i2GRFE..GSV40..NAP201104-201109

16572HOSE, RADIATOR, OUTLET

main16572-0H090i2AZFE..ACV40..NAP200602-200903

main16572-0P070i2GRFE..GSV40..NAP200602-201109

main16572-0V010i2ARFE..ASV40..NAP200903-201109

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90080-46344i2GRFE..GSV40..NAP200602-201103

main90466-A0020i2GRFE..GSV40..NAP201104-201109

16611BRACKET, RADIATOR RESERVE TANK

main16611-0A010i2GRFE..GSV40..NAP200602-201109

16711SHROUD, FAN

main16711-0H090i2AZFE..ACV40..NAP200602-200903

main16711-0V010i2ARFE..ASV40..NAP200903-201109

main16711-AD010i2GRFE..GSV40..NAP200602-201109

16715BRACKET, FAN SHROUD

main88688-03020i2AZFE..ACV40..NAP200602-200903

FAN & COUPLING-TOWING PACKAGE(DOP)

7403

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9006903010

main90069-03010

9008011208

main90080-11208

9009900216

main90099-00216

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

32 parts on this diagram · 8 diagrams in section
