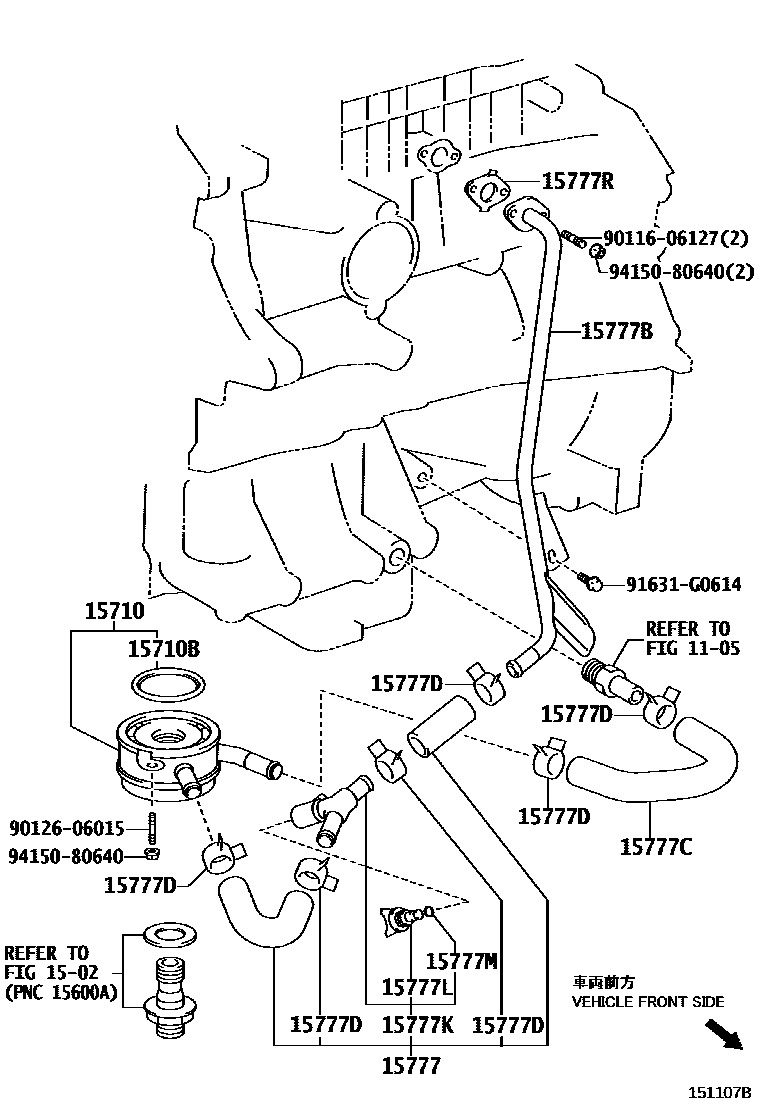

ENGINE OIL COOLER

0001 1W(ENGINE OIL COOLER) 0002 1W(ENGINE OIL COOLER) 0003 1

1105

1502

15710COOLER ASSY, OIL

main90301-52006¥0

main15710-36010¥32,900

main15710-28020¥39,500

15710BRING, O(FOR OIL COOLER)

15777HOSE, OIL COOLER

main16281-28010¥490

main16279-28010¥3,290

main23322-54010¥380

main16267-28020¥1,280

main16258-28040¥310

main16492-21050¥210

main90910-09119

main96134-41900¥90

15777BPIPE, OIL COOLER

15777CHOSE, OIL COOLER

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

15777KCOCK ASSY, DRAIN(FOR OIL COOLER HOSE)

15777LPLUG,AIR(FOR OIL COOLER DRAIN COCK)

15777MRING, O(FOR OIL COOLER DRAIN COCK)

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

9011606127

main90116-06127¥80

9012606015

main90126-06015¥110

91631G0614

main91631-G0614¥60

9415080640

main94150-80640¥220

16 parts on this diagram · 3 diagrams in section
