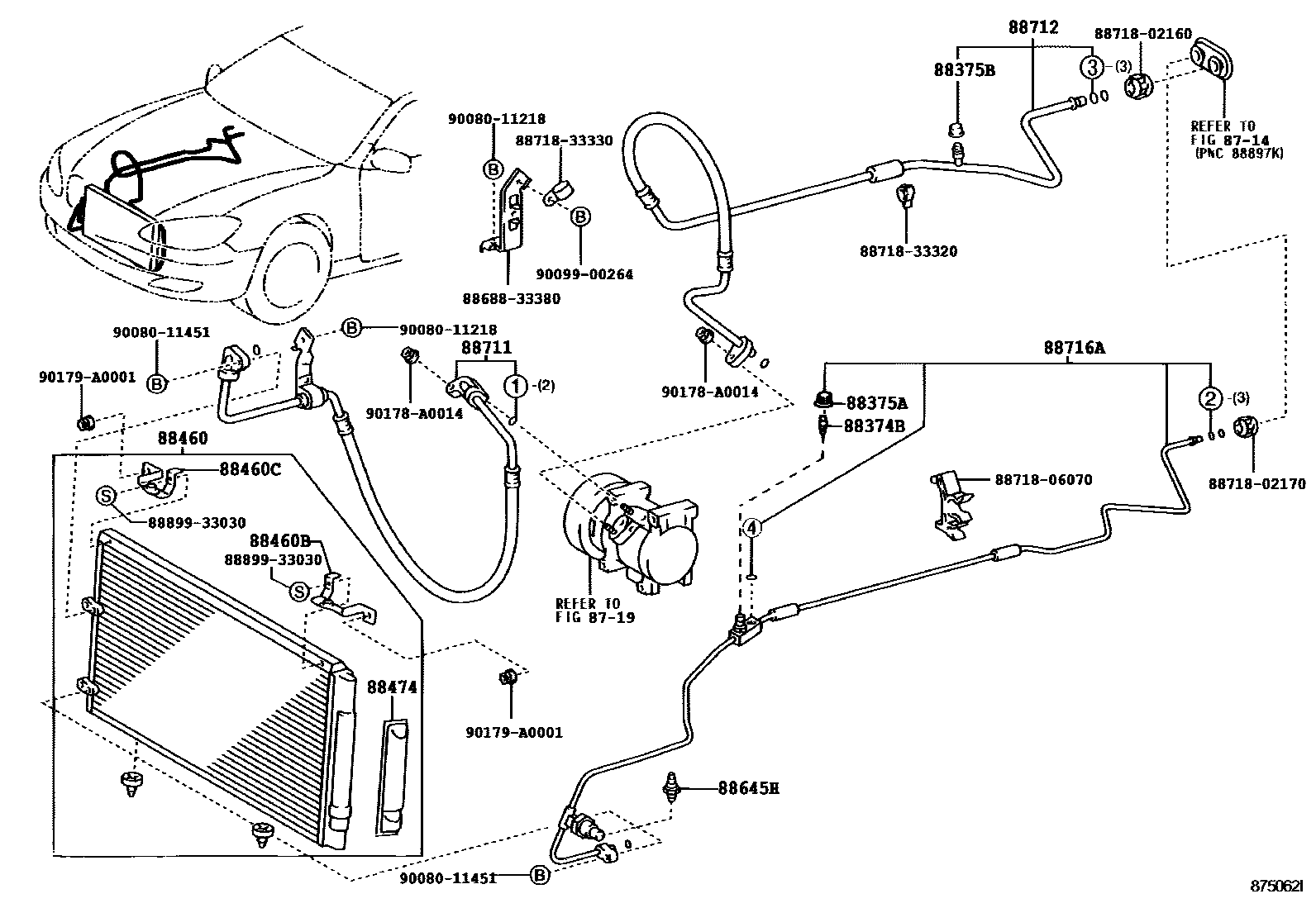

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)200304-200406

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-02060iMCV30..NAP..SE200304-200406

sub88375-0E020

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iACV30..NAP200107-200602

88460CONDENSER ASSY, COOLER

main88460-06070iACV30,MCV3#..NAP200107-200406

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-06120iACV30,MCV3#..NAP200107-200406

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-06140iACV30,MCV3#..NAP200107-200406

88474DRYER, COOLER

main88474-47010iACV30,MCV3#..NAP200106-200602

88645HSWITCH, PRESSURE NO.1

main88645-08010iACV30,MCV3#..NAP200107-200406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06110iMCV3#..NAP200107-200406

main88711-06120iACV30..NAP200107-200406

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06050iMCV3#..NAP200107-200406

main88712-06060iACV30..NAP200107-200406

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-06200iACV30,MCV30..NAP200107-200304

main88716-06201iACV30,MCV3#..NAP200304-200406

8868833380BRACKET, COOLER DIAPHRAGM

main88688-33380

8871802160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02160

8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02170

8871806070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06070

8871833320PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33320

8871833330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33330

8889933030COVER, EVAPORATOR

main88899-33030

9008011218

main90080-11218

9008011451

main90080-11451

9009900264

main90099-00264

90178A0014

main90178-A0014

90179A0001

main90179-A0001

25 parts on this diagram · 4 diagrams in section
