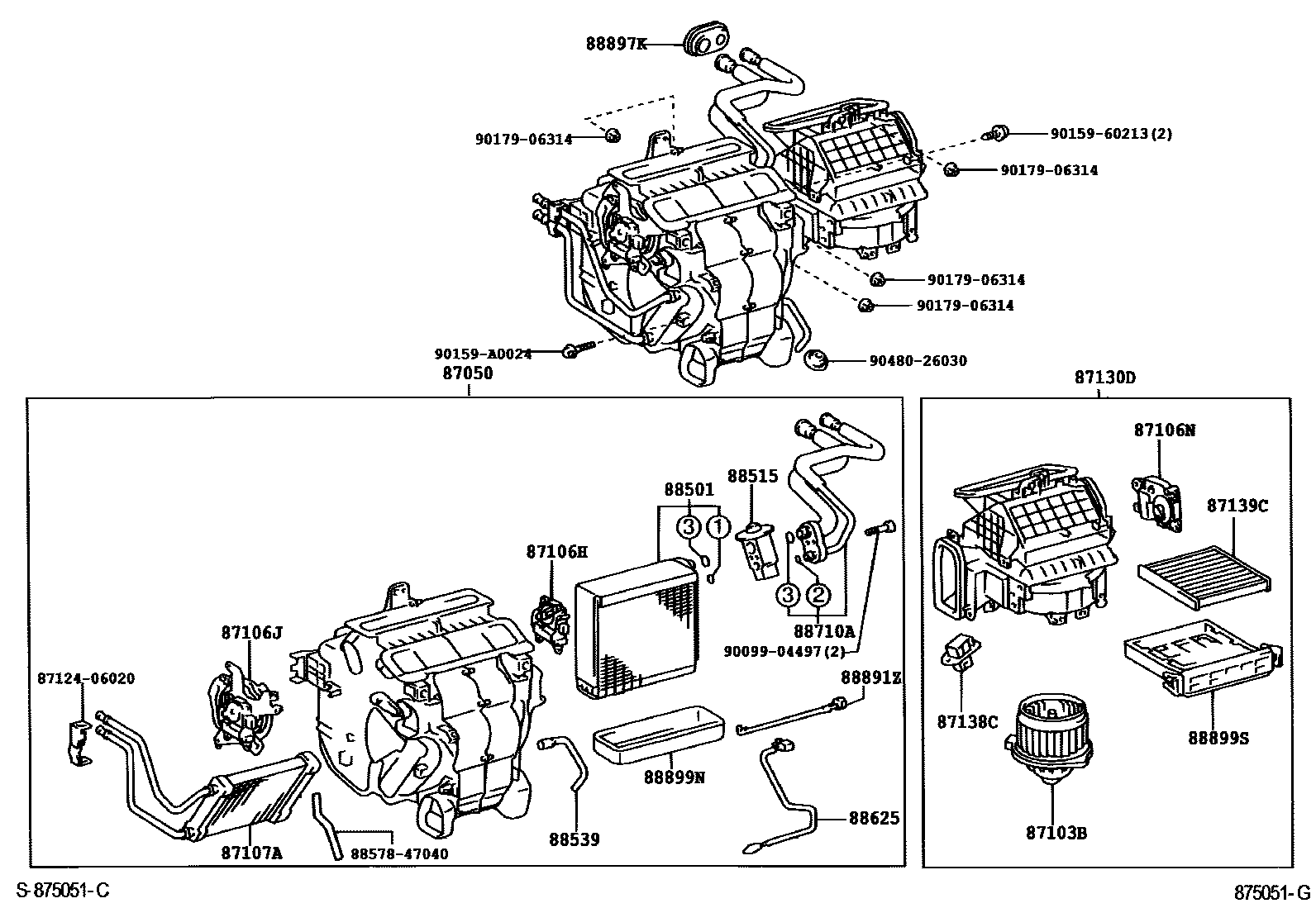

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06220iACV30,MCV30..NAP..XLE200107-200209

sub87050-06221

main87050-06221iACV30,MCV30..NAP..XLE200209-200210

sub87050-06222

main87050-06222iACV30,MCV30..NAP..XLE200210-200406

main87050-06250iACV30,MCV30..NAP..(LE,SE)200107-200209

main87050-06251iACV30,MCV30..NAP..(LE,SE)200209-200210

sub87050-06252

main87050-06252iACV30,MCV3#..NAP..(LE,SE)200210-200406

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06030iACV30,MCV3#..NAP200107-200411

sub87103-06031

main87103-06031iACV30,MCV3#..NAP200411

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-07080iACV30,MCV30..NAP200107-200210

main87106-07081iACV30,MCV3#..NAP200210-200406

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-06130iACV30,MCV30..NAP..XLE200107-200406

main87106-06140iACV30,MCV3#..NAP..(LE,SE)200107-200406

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-06110iACV30,MCV30..NAP..XLE200107-200406

main87106-06120iACV30,MCV3#..NAP..(LE,SE)200107-200406

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06040iACV30,MCV3#..NAP200107-200406

87130DBLOWER ASSY

main87130-06080iACV30,MCV30..NAP..XLE200107-200406

main87130-06090iACV30,MCV3#..NAP..(LE,SE)200107-200406

main87130-06220iACV30,MCV30..NAP..XLE200406

main87130-06230iACV30,MCV3#..NAP..(LE,SE)200406

87138CRESISTOR, BLOWER

main87138-41020iACV30,MCV3#..NAP..(LE,SE)200107-200406

87139CFILTER, CLEAN AIR

main87139-06030iACV30,MCV3#..NAP200310-200406

main87139-06040iACV30,MCV3#..NAP200411-200602

main87139-28010iACV30,MCV3#..NAP200406-200411

main87139-32010iACV30,MCV3#..NAP200107-200310

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-07020iACV30,MCV3#..NAP200107-200406

88515VALVE, COOLER EXPANSION

main88515-07020iACV30,MCV3#..NAP200107-200312

sub88515-07040

main88515-07040iACV30,MCV3#..NAP200312-200406

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-06030iACV30,MCV3#..NAP200107-200406

88625THERMISTOR, COOLER, NO.1

main88625-17130iACV30,MCV30..NAP200107-200210

main88625-33170iACV30,MCV30..NAP..XLE200210-200602

88710ATUBE ASSY, AIR CONDITIONER

main88710-07060iACV30,MCV3#..NAP200107-200406

88891ZBRACKET, COOLER THERMISTOR

main88891-32100iACV30,MCV30..NAP200107-200108

main88891-50060iACV30,MCV3#..NAP200108-200407

88897KGROMMET, (FOR COOLER PIPE)

main88897-06010iACV30,MCV3#..NAP200107-200406

88899NPLATE, COVER

main88899-41020iACV30,MCV3#..NAP..(LE,SE)200210-200602

88899SFRAME, FRONT COOLER

main88899-06020iACV30,MCV3#..NAP200310-200602

main88899-41010iACV30,MCV3#..NAP200107-200310

8712406020CLAMP, HEATER

main87124-06020

8857847040PAKING, COOLER AIR DUCT

main88578-47040

9009904497

main90099-04497

9015960213

main90159-60213

90159A0024

main90159-A0024

9017906314

main90179-06314

9048026030

main90480-26030

25 parts on this diagram · 3 diagrams in section
