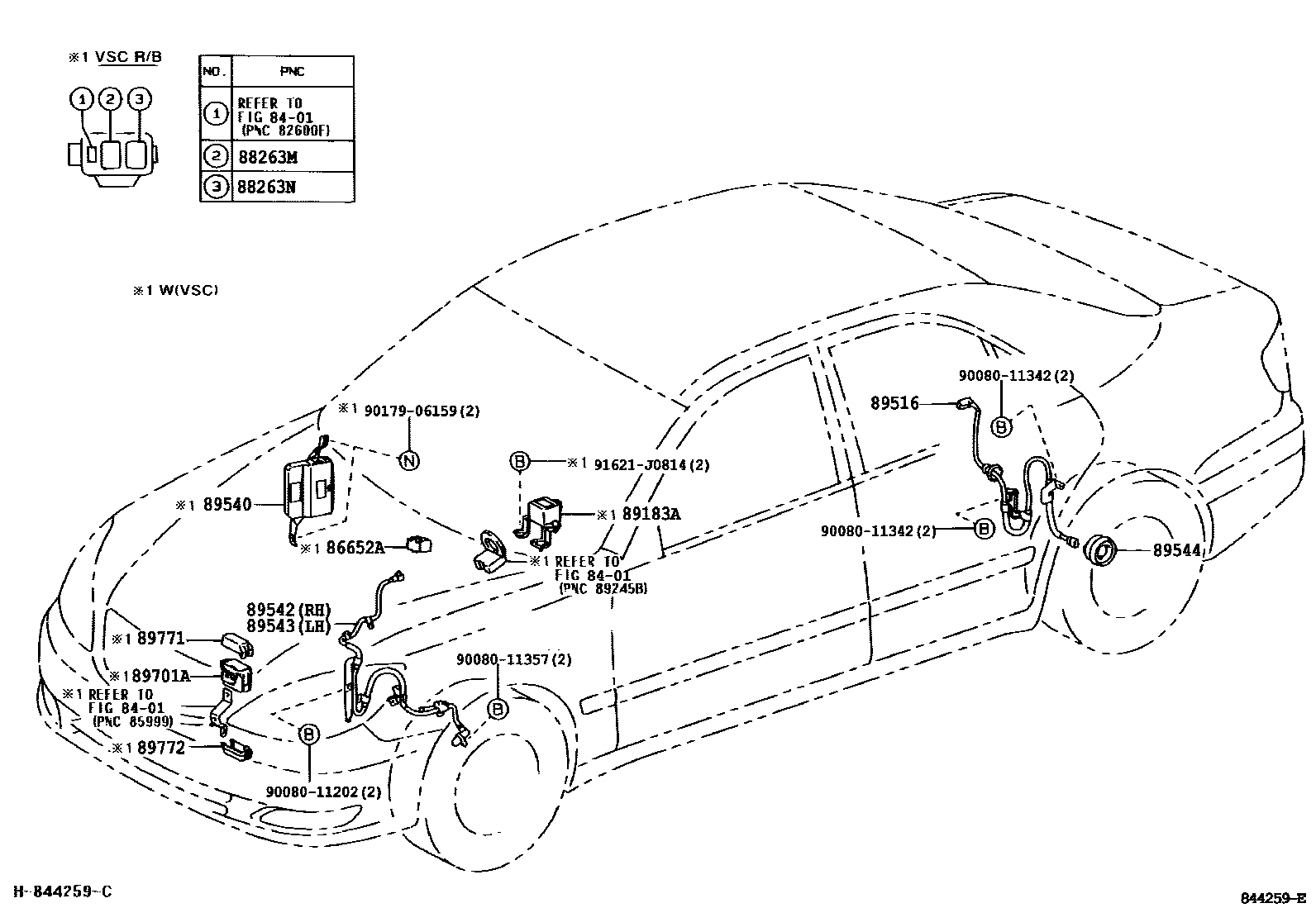

ABS & VSC

0001 1 0002 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

88263MRELAY, ABS SOLENOID

main88263-08010iMCV30..NAP..4FC;MCV30..NAP..SE..5FC200212-200406

main88263-32070iMCV30..NAP200107-200212

88263NRELAY, ABS MOTOR

main88263-08010iMCV30..NAP200212-200309

main88263-21010iMCV3#..NAP200309-200406

main88263-32070iMCV30..NAP200107-200212

89183ASENSOR, YAWRATE

main89180-33020iMCV30..NAP200107-200309

main89183-48010iMCV3#..NAP200309-200406

sub89183-60020

89516WIRE, SKID CONTROL SENSOR

main89516-33010iACV30,MCV3#..NAP200107-200406

RH

main89516-33020iMCV30..NAP..SE..5FC200107-200406

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-33300iMCV30..NAP200107-200109

sub89540-33301

main89540-33301iMCV30..NAP200109-200309

89542SENSOR, SPEED, FRONT RH

main89542-06010iACV30,MCV3#..NAP200107-200406

89543SENSOR, SPEED, FRONT LH

main89543-06010iACV30,MCV3#..NAP200107-200406

89544SENSOR, SKID CONTROL

main89544-06010iACV30,MCV3#..NAP200107-200406

KOYO

sub89544-48010

main89544-06020iACV30,MCV3#..NAP200107-200406

NSK

sub89544-06010

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020iMCV30..NAP200107-200309

main89701-21020iMCV3#..NAP200309-200406

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020iACV30,MCV3#..NAP200309-200406

main89771-33010iMCV30..NAP200107-200309

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020iMCV30..NAP200107-200309

9008011202

main90080-11202

9008011342

main90080-11342

9008011357

main90080-11357

9017906159

main90179-06159

91621J0814

main91621-J0814

18 parts on this diagram · 2 diagrams in section
