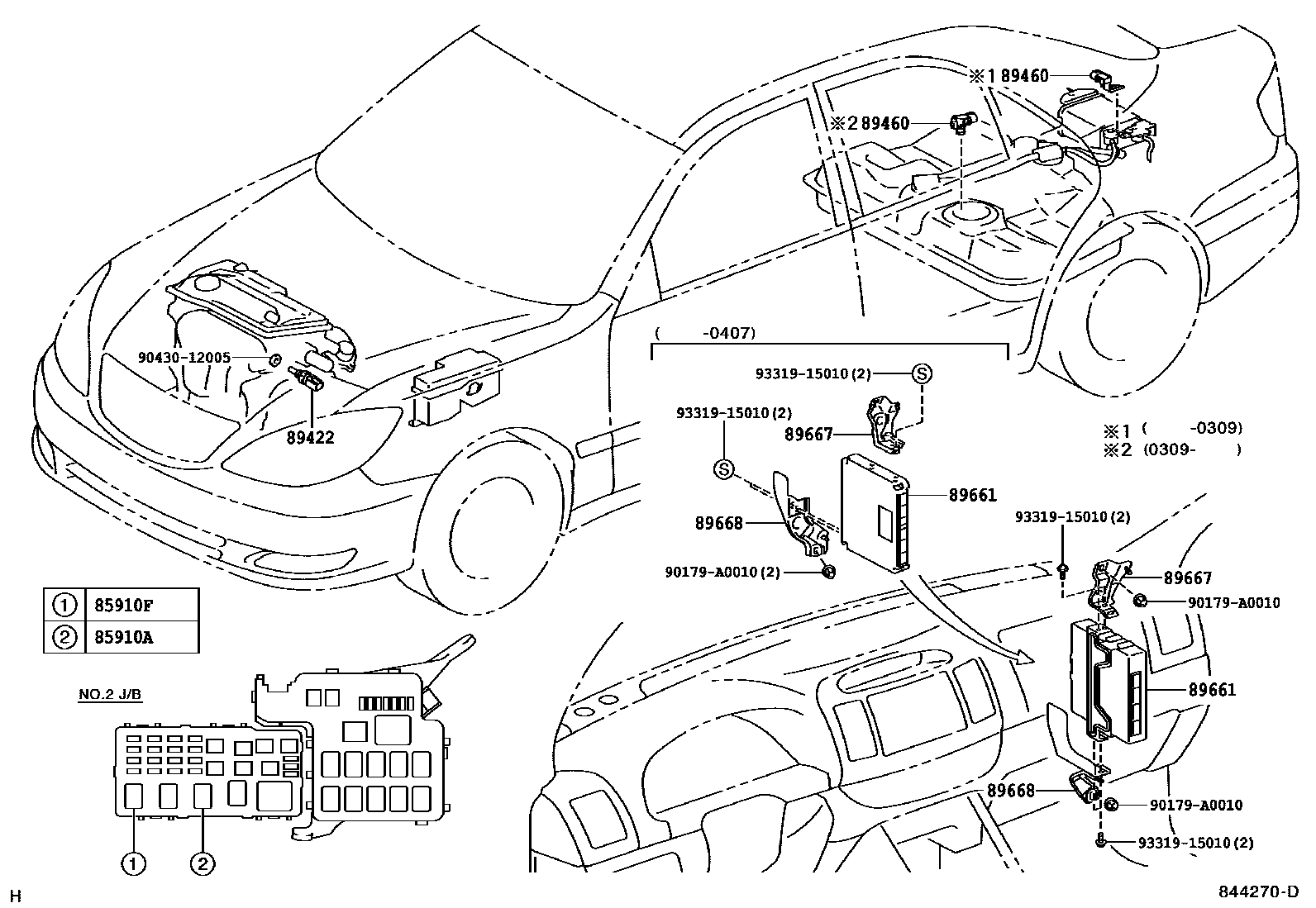

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87026iACV30,MCV3#..NAP200309-200406

sub90987-02027

main90084-98031iACV30,MCV30..NAP200107-200309

85910FRELAY, COMPUTER (FOR EFI)

main90080-87026iACV30,MCV3#..NAP200309-200406

sub90987-02027

main90084-98031iACV30,MCV30..NAP200107-200309

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iACV30..NAP200209-200406

(L)

main89422-16010iACV30..NAP200107-200209

main89422-33020iMCV3#..NAP200406

P/N LABEL=8942233020

main89422-33030iACV30..NAP200209-200406

(J)

main89422-35010iMCV30..NAP..SE..5FC200109-200406

main89422-35010iMCV3#..NAP200406

P/N LABEL=8942235010

89460SENSOR ASSY, VAPOR PRESSURE

main89460-07030iMCV30..NAP200107-200309

main89461-06040iACV30..NAP200309-200406

CALIFORNIA SPEC

main89461-0C010iACV30,MCV3#..NAP200309-200406

89661COMPUTER, ENGINE CONTROL

main89661-06A00iACV30..NAP200309-200312

PART NUMBER LABEL=89661-06A00

sub89661-06A01

main89661-06A01iACV30..NAP200312-200401

PART NUMBER LABEL=89661-06A01

sub89661-06A02

main89661-06A02iACV30..NAP200402-200406

PART NUMBER LABEL=89661-06A02

sub89661-06A03

main89661-06A10iMCV30..NAP200309-200312

PART NUMBER LABEL=89661-06A10

sub89661-06A11

main89661-06A11iMCV30..NAP200312-200406

PART NUMBER LABEL=89661-06A11

main89661-06A20iACV30..NAP..LE200309-200406

PART NUMBER LABEL=89661-06A20

sub89661-06A21

main89661-06A30iMCV30..NAP..XLE200309-200602

PART NUMBER LABEL=89661-06A30

main89661-06A40iMCV31..NAP200309-200402

PART NUMBER LABEL=89661-06A40

sub89661-06A41

main89661-06A41iMCV31..NAP200403-200406

PART NUMBER LABEL=89661-06A41

main89661-06B00iMCV31..NAP200406-200409

PART NUMBER LABEL=89661-06B00

sub89661-06B01

main89661-06B01iMCV31..NAP200410-200508

PART NUMBER LABEL=89661-06B10

main89661-06B10iMCV30..NAP200406-200409

PART NUMBER LABEL=89661-06B10

sub89661-06B11

main89661-06B11iMCV30..NAP200410-200508

PART NUMBER LABEL=89661-06B11

main89661-06B30iACV30..NAP200406-200508

PART NUMBER LABEL=89661-06B30

sub89661-06B31

main89661-06B40iACV30..NAP..(LE,XLE)200406-200602

PART NUMBER LABEL=89661-06B40

main89661-06B50iACV30..NAP200406-200508

PART NUMBER LABEL=89661-06B50

sub89661-06B51

main89661-06D91iACV30..NAP200508-200602

PART NAMBER LABER=89661-06D91

sub89661-06D92

main89661-06E01iACV30..NAP200508-200602

PART NAMBER LABEL=89661-06E01

sub89661-06E02

main89661-06F20iMCV31..NAP200508-200602

PART NUMBER LABEL=89661-06F20

sub89661-06F21

main89661-06F30iMCV30..NAP200508-200602

PART NUMBER LABEL=89661-06F30

sub89661-06F31

main89661-0X010iACV30..NAP..XLE200203-200309

PART NUMBER LABEL=89661-0X010

main89661-0X020iACV30..NAP..LE200203-200309

PART NUMBER LABEL=89661-0X020

main89661-0X030iACV30..NAP200301-200309

PART NUMBER LABEL=89661-0X030

main89661-0X040iACV30..NAP..(LE,SE)200209-200309

PART NUMBER LABEL=89661-0X040

sub89661-0X041

main89661-0X050iACV30..NAP200209-200309

PART NUMBER LABEL=89661-0X050

sub89661-0X051

main89661-0X140iMCV30..NAP..XLE200301-200309

PART NUMBER LABEL=89661-0X140

main89666-06210iMCV30..NAP200301-200302

PART NUMBER LABEL=89666-06210

sub89666-06211

main89666-06211iMCV30..NAP200302-200309

PART NUMBER LABEL=89666-06211

sub89666-06212

main89666-06220iACV30..NAP..(LE,SE)200107-200209

PART NUMBER LABEL=89666-06220

sub89666-06221

main89666-06240iACV30..NAP200107-200209

PART NUMBER LABEL=89666-06240

sub89666-06241

main89666-06250iMCV30..NAP200107-200108

PART NUMBER LABEL=89666-06250

sub89666-06251

main89666-06251iMCV30..NAP200108-200110

PART NUMBER LABEL=89666-06251

sub89666-06252

main89666-06253iMCV30..NAP200110-200203

PART NUMBER LABEL=89666-06253

sub89666-06254

main89666-06254iMCV30..NAP200203-200209

PART NUMBER LABEL=89666-06254

sub89666-06255

main89666-06510iACV30..NAP200309-200311

PART NUMBER LABEL=89666-06510

sub89666-06511

main89666-06511iACV30..NAP200311-200406

PART NUMBER LABEL=89666-06511

sub89666-06512

main89666-06520iMCV30..NAP..XLE200107-200301

PART NUMBER LABEL=89666-06520

main89666-06530iMCV30..NAP200209-200210

PART NUMBER LABEL=89666-06530

main89666-06531iMCV30..NAP200210-200301

PART NUMBER LABEL=89666-06531

sub89666-06532

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06080iMCV31..NAP200107-200602

main89667-06090iACV30..NAP200406-200602

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06080iMCV31..NAP200107-200602

main89668-06090iACV30..NAP200406-200602

90179A0010

main90179-A0010

9043012005

main90430-12005

9331915010

main93319-15010

10 parts on this diagram · 2 diagrams in section
