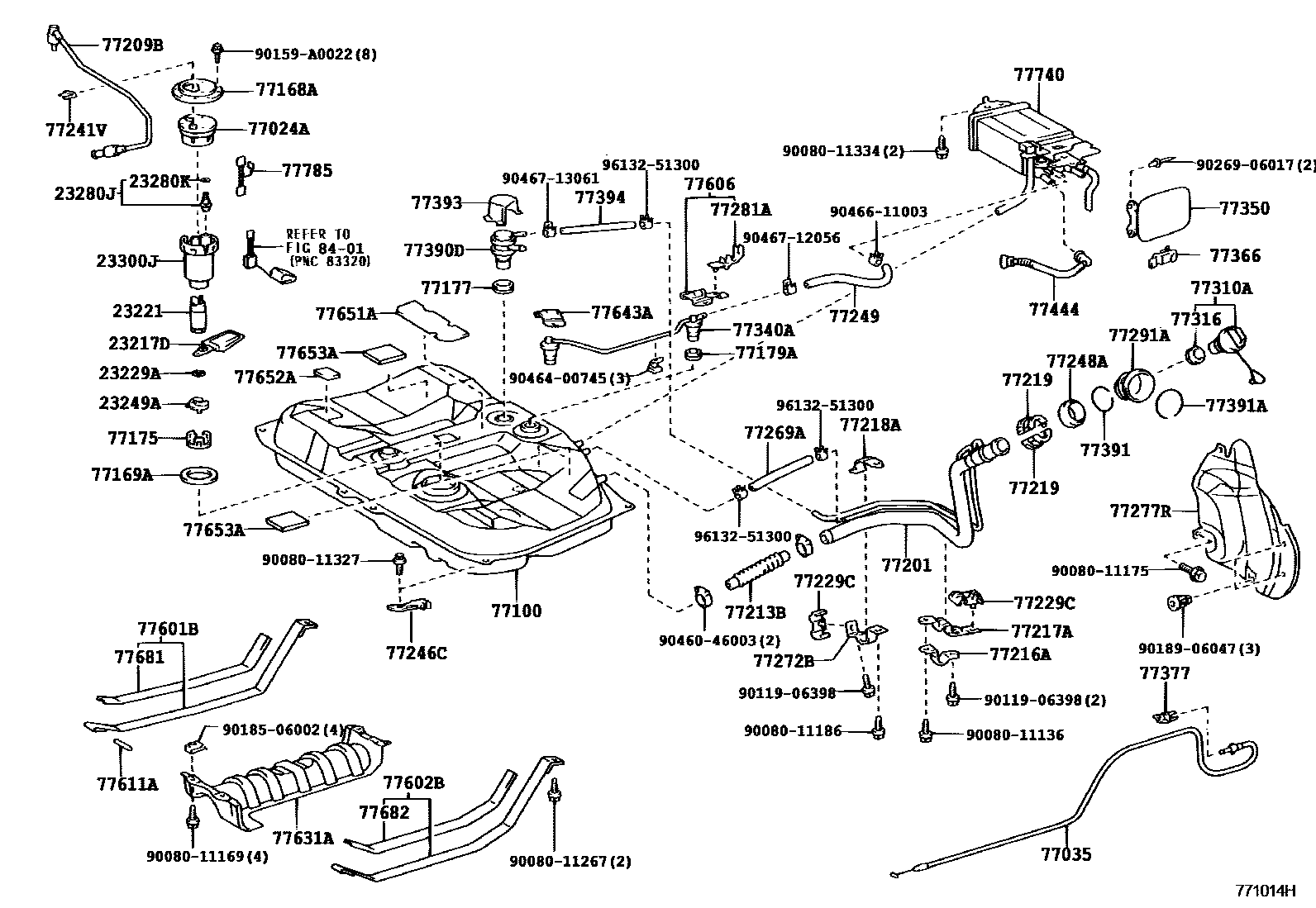

FUEL TANK & TUBE

0001 1 0002 1CALIFORNIA SPEC 0003 1 0004 1 0005 1CALIFORNIA SPEC 0006 1

23217DFILTER, FUEL PUMP

main23217-0C010i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

23221PUMP, FUEL

main23221-0A030i2AZFE..ACV30..NAP200107-200406

main23221-0A040i1MZFE,3MZFE..MCV3#..NAP200301-200406

23229ACLIP(FOR FUEL PUMP FILTER)

main23219-03010i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-0A020i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-20060i1MZFE,3MZFE..MCV3#..NAP200310-200406

CALIFORNIA SPEC

main23280-20060i1MZFE,3MZFE..MCV3#..NAP200301-200406

main23280-22010i2AZFE,1MZFE..ACV30,MCV30..NAP..4FC200107-200406

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

23300JFILTER ASSY, FUEL

main23300-0A020i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-06020iACV30,MCV30..NAP200107-200309

main77024-06040iMCV3#..NAP200309-200406

main77024-06040iACV30..NAP200301-200406

CALIFORNIA SPEC

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-AA030iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

77100TANK ASSY, FUEL

main77001-06060iACV30,MCV30..NAP200107-200309

sub77001-33161

main77001-06080iACV30..NAP200301-200406

CALIFORNIA SPEC

sub77001-06081

main77001-06110iMCV3#..NAP200309-200406

sub77001-06111

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iACV30,MCV30..NAP200107-200309

main77168-33060iACV30..NAP200301-200406

CALIFORNIA SPEC

main77168-33060iMCV3#..NAP200309-200406

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02020iACV30,MCV3#..NAP200309-200406

main77169-02020iMCV30..NAP200301-200309

(L)

main77169-33020iACV30,MCV30..NAP200110-200309

(J)

main77169-33050iACV30..NAP200301-200406

CALIFORNIA SPEC

77175SUPPORT, FUEL SUCTION, NO.2

main77175-06020iMCV30..NAP200301-200406

(L)

main77175-06020iACV30,MCV3#..NAP200406

CALIFORNIA SPEC,(L)

main77175-06020iMCV30..NAP200309-200406

main77175-33020iMCV30..NAP200107-200406

(J)

main77175-33020iACV30..NAP200406

CALIFORNIA SPEC,(J)

77177GASKET, CHECK VALVE

main77177-33010iACV30,MCV30..NAP200107-200309

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iACV30,MCV30..NAP200107-200309

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-06061iACV30,MCV30..NAP200107-200309

sub77201-33191

main77201-06090iACV30..NAP..4FC200309-200406

main77201-33240iACV30..NAP200301-200406

CALIFORNIA SPEC

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-06020iACV30,MCV30..NAP200107-200309

main77209-06030iACV30..NAP200301-200406

CALIFORNIA SPEC

main77209-06030iMCV3#..NAP200309-200406

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-06010iACV30,MCV30..NAP200107-200309

L=182

main77213-06010iMCV30..NAP200301-200309

L=240

main77213-06040iACV30..NAP..4FC200309-200406

sub77213-06041

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06010iACV30,MCV30..NAP200107-200309

main77216-06030iACV30,MCV3#..NAP200309-200406

main77216-33030iACV30..NAP200301-200406

CALIFORNIA SPEC

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-06020iACV30,MCV30..NAP200107-200309

main77217-06040iACV30,MCV3#..NAP200309-200406

main77217-33030iACV30..NAP200301-200406

CALIFORNIA SPEC

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-06020iACV30,MCV30..NAP200107-200309

main77218-06050iMCV3#..NAP200309-200406

main77218-33050iACV30..NAP200301-200306

CALIFORNIA SPEC

main77218-33051iACV30..NAP200306-200406

CALIFORNIA SPEC

sub77218-33052

sub77201-33240

sub77201-33261

sub77201-33311

77219COVER, FUEL TANK FILLER PIPE

main77219-06020iACV30,MCV30..NAP200107-200309

77229CCLAMP, BREATHER TUBE

main77229-06020iACV30,MCV30..NAP200107-200309

main77229-06040iACV30..NAP..4FC200309-200406

sub77229-33060

main77229-33060iACV30..NAP200301-200406

CALIFORNIA SPEC

77241VCLIP, TUBE JOINT

main77241-02010iACV30,MCV30..NAP200107-200406

CALIFORNIA SPEC

main77241-02010iACV30..NAP..4FC200309-200406

77246CSUPPORT, FUEL MAIN TUBE

main77246-06010iACV30,MCV3#..NAP200602

(L)

main77246-33020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200602

main77246-33020iACV30,MCV3#..NAP200602

(J)

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06020iACV30,MCV30..NAP200107-200309

77249HOSE, FUEL EMISSION

main90080-44094iACV30,MCV30..NAP200107-200309

sub95337-06030

77269AHOSE, FUEL TANK BREATHER

main90080-44093iACV30,MCV30..NAP200107-200309

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-06010iACV30,MCV30..NAP200107-200309

main77272-06020iACV30..NAP..4FC200309-200406

main77272-33030iACV30..NAP200301-200406

CALIFORNIA SPEC

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-AA030iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77281ACLAMP, FUEL FILLER PIPE

main77281-33010iACV30,MCV30..NAP200107-200309

main77281-33020iACV30..NAP200301-200406

CALIFORNIA SPEC

main77281-33020iACV30..NAP200406

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-AA030iACV30,MCV30..NAP200107-200209

sub77291-AA031

main77291-AA031iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200209-200406

77310ACAP ASSY, FUEL TANK

main77300-06010iACV30,MCV30..NAP200107-200308

(L)

main77300-33010iACV30,MCV30..NAP200107-200111

(J)

sub77300-33051

main77300-33030iACV30..NAP200301-200308

CALIFORNIA SPEC

sub77300-47010

main77300-33050iACV30,MCV30..NAP200111-200201

(J)

sub77300-33051

main77300-33051iACV30,MCV30..NAP200201-200208

(J)

sub77300-33052

main77300-33052iACV30,MCV30..NAP200208-200308

(J)

sub77300-33070

main77300-33070iMCV30..NAP..SE;ACV30..NAP..4FC200308-200406

sub77300-47010

main77300-47010iACV30..NAP200308-200406

CALIFORNIA SPEC

77316GASKET, FUEL TANK CAP

main77316-06020iACV30,MCV30..NAP200107-200308

(L)

main77316-33010iACV30,MCV30..NAP200107-200111

(J)

sub77316-33041

main77316-33020iACV30..NAP200301-200406

CALIFORNIA SPEC

main77316-33040iACV30,MCV30..NAP200111-200201

(J)

sub77316-33041

main77316-33041iACV30,MCV30..NAP200201-200208

(J)

sub77316-33042

main77316-33042iMCV30..NAP..SE;ACV30..NAP..4FC200308-200406

main77316-33042iACV30,MCV30..NAP200208-200308

(J)

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iACV30,MCV30..NAP200107-200309

77350LID ASSY, FUEL FILLER OPENING

main77350-AA060iMCV30..NAP200107-200406

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-33020iACV30,MCV3#..NAP200107-200311

main77360-53010iACV30..NAP..4FC200311-200406

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-AA020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77390DVALVE ASSY, FUEL TANK OVER FILL CHECK

main77390-33011iACV30,MCV30..NAP200107-200309

77391RING, FUEL INLET BOX

main77391-12020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77391ARING, FUEL INLET BOX

main77391-20030iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

77393PROTECTOR, CHECK VALVE

main77393-52010iACV30,MCV30..NAP200107-200309

77394HOSE, VALVE TO FUEL FILLER PIPE

main90080-44095iACV30,MCV30..NAP200107-200309

sub95337-08034

77444HOSE, FUEL TANK VENT

main77404-06010iACV30,MCV30..NAP200107-200309

main77404-06050iACV30..NAP200301-200406

CALIFORNIA SPEC,NO.1

main77404-06050iACV30..NAP..4FC200309-200406

main77404-33040iACV30..NAP200301-200406

CALIFORNIA SPEC,NO.2

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33040iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33040iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-33010iACV30,MCV30..NAP200107-200309

77611APIN (FOR FUEL TANK BAND)

main90250-08019iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-06011iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77643APROTECTOR, FUEL TANK, NO.3

main77643-33010iACV30,MCV30..NAP200107-200309

sub77643-33030

77651ACUSHION, FUEL TANK, NO.1

main77651-06010iACV30,MCV30..NAP200110-200309

(L)

sub77651-33020

main77651-33020iACV30,MCV30..NAP200107-200309

(J)

77652ACUSHION, FUEL TANK, NO.2

main77652-06010iACV30..NAP;MCV30..NAP..SE200301-200406

(L)

sub77652-33020

main77652-06010iACV30,MCV3#..NAP200309-200406

sub77652-33020

main77652-33020iACV30..NAP;MCV30..NAP..SE200301-200406

(J)

main77652-33020iACV30,MCV30..NAP..4FC200107-200309

77653ACUSHION, FUEL TANK, NO.3

main77652-33010iACV30,MCV30..NAP200107-200111

sub77652-20110

77681SEAT, FUEL TANK BAND, RH

main77681-32060iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77682SEAT, FUEL TANK BAND, LH

main77681-32060iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

77740CANISTER ASSY, CHARCOAL

main77740-06110iACV30,MCV30..NAP200107-200202

sub77740-06111

main77740-06111iACV30,MCV30..NAP200202-200309

main77740-06141iACV30..NAP200301-200406

CALIFORNIA SPEC

main77740-06160iACV30..NAP..4FC200309-200406

77785HARNESS, FUEL PUMP

main77785-06020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

8401

9008011136

main90080-11136

9008011169

main90080-11169

9008011175

main90080-11175

9008011186

main90080-11186

9008011267

main90080-11267

9008011327

main90080-11327

9008011334

main90080-11334

9011906398

main90119-06398

90159A0022

main90159-A0022

9018506002

main90185-06002

9018906047

main90189-06047

9026906017

main90269-06017

9046046003

main90460-46003

9046400745

main90464-00745

9046611003

main90466-11003

9046712056

main90467-12056

9046713061

main90467-13061

9613251300

main96132-51300

76 parts on this diagram · 6 diagrams in section
