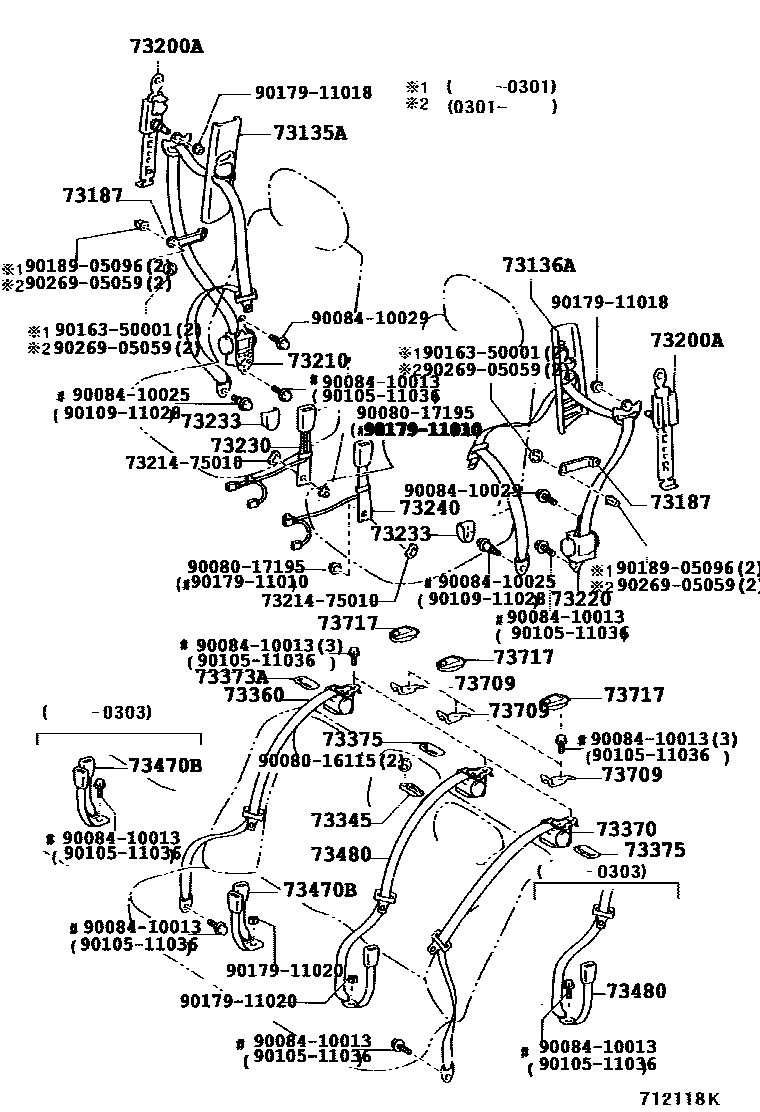

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-AA010-A0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

IVORY,TRIM4#

main73023-AA010-B0iMCV30..NAP200107-200406

LT.GRAY,TRIM1#

main73023-AA010-B0iACV30,MCV3#..NAP200406

LT.GRAY,TRIM9#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-AA010-A0iMCV30..NAP200107-200406

IVORY,TRIM4#

main73024-AA010-B0iMCV30..NAP..SE..5FC200107-200406

LT.GRAY,TRIM1#

main73024-AA010-B0iACV30,MCV3#..NAP200406

LT.GRAY,TRIM9#

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-AA030iACV30,MCV30..NAP200107-200303

main73187-AA050iMCV31..NAP;MCV30..NAP..(LE,XLE)200303-200406

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-AA020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06110-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

CHARCOAL,TRIM1#

main73210-06110-B0iACV30,MCV30..NAP..(LE,XLE)200406

CHARCOAL,TRIM9#

main73210-06110-B1iACV30,MCV31..NAP..SE200309-200406

DK. GRAY,TRIM1#

main73210-06110-B1iACV30,MCV31..NAP..SE200406

DK. GRAY,TRIM9#

main73210-06110-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

main73210-AA050-B0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200202-200309

CHARCOAL,TRIM1#

sub73210-AA050

main73210-AA050-B1iACV30..NAP..SE;MCV30..NAP..SE..5FC200202-200309

DK. GRAY,TRIM1#

sub73210-AA050

main73210-AA050-E0iACV30..NAP;MCV30..NAP..5FC200202-200309

FAWN,TRIM4#

sub73210-AA050

main73210-AA090-B2iACV30,MCV30..NAP..(LE,XLE)200107-200202

CHARCOAL,TRIM1#

main73210-AA090-B3iACV30,MCV30..NAP..SE200107-200202

DK. GRAY,TRIM1#

main73210-AA090-E0iACV30,MCV30..NAP200107-200202

FAWN,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06110-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

CHARCOAL,TRIM1#

main73220-06110-B0iACV30,MCV30..NAP..(LE,XLE)200406

CHARCOAL,TRIM9#

main73220-06110-B1iACV30,MCV31..NAP..SE200406

DK. GRAY,TRIM9#

main73220-06110-B1iACV30,MCV31..NAP..SE200309-200406

DK. GRAY,TRIM1#

main73220-06110-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

main73220-AA090-B2iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200309

CHARCOAL,TRIM1#

sub73220-AA090

main73220-AA090-B3iACV30..NAP..SE;MCV30..NAP..SE..5FC200107-200309

DK. GRAY,TRIM1#

sub73220-AA090

main73220-AA090-E0iACV30..NAP;MCV30..NAP..5FC200107-200309

FAWN,TRIM4#

sub73220-AA090

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-AA030-B0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200309

STONE,TRIM1#

sub73230-AA030

main73230-AA030-B1iMCV30..NAP..SE200107-200309

DK.GRAY,TRIM1#

sub73230-AA030

main73230-AA030-E0iMCV30..NAP200107-200309

FAWN,TRIM4#

sub73230-AA030

main73230-AA070-B0iACV30..NAP..XLE;MCV30..NAP..XLE..5FC200107-200309

W(POWER SEAT, DRIVER'S SIDE),STONE,TRIM1#

sub73230-AA070

main73230-AA070-E0iMCV30..NAP..XLE200107-200309

W(POWER SEAT, DRIVER'S SIDE),FAWN,TRIM4#

sub73230-AA070

main73230-AA080-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

STONE,TRIM1#

sub73230-AA080

main73230-AA080-B0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

sub73230-AA080

main73230-AA080-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

sub73230-AA080

main73230-AA080-B1iACV30,MCV31..NAP..SE200309-200406

DK.GRAY,TRIM1#

sub73230-AA080

main73230-AA080-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

sub73230-AA080

main73230-AA090-B0iACV30,MCV30..NAP..XLE200406-200409

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE),STONE,TRIM9#

sub73230-AA091

main73230-AA090-B0iACV30,MCV30..NAP..XLE200309-200406

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE),STONE,TRIM1#

sub73230-AA091

main73230-AA090-E0iACV30,MCV30..NAP..XLE200309-200409

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE),FAWN,TRIM4#

sub73230-AA091

main73230-AA091-B0iACV30,MCV30..NAP..XLE200409

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE),STONE,TRIM9#

sub73230-AA091

main73230-AA091-E0iACV30,MCV30..NAP..XLE200409

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE),FAWN,TRIM4#

sub73230-AA091

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B6iMCV30..NAP..(LE,XLE)200211-200406

STONE,TRIM1#

sub73233-33010

main73233-33010-B6iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#,(J)

sub73233-33010

main73233-33010-B8iMCV30..NAP..SE..5FC200211-200406

DK.GRAY,TRIM1#

sub73233-33010

main73233-33010-B8iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#,(J)

sub73233-33010

main73233-33010-E3iMCV30..NAP200211-200406

FAWN,TRIM4#

sub73233-33010

main73233-33010-E3iACV30,MCV3#..NAP200406

FAWN,TRIM4#,(J)

sub73233-33010

main73233-AA010-B0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#,(L)

main73233-AA010-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#,(L)

main73233-AA010-E0iACV30,MCV3#..NAP200406

FAWN,TRIM4#,(L)

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-AA050-B0iMCV30..NAP..(LE,XLE)200107-200309

STONE,TRIM1#

sub73240-AA050

main73240-AA050-B1iACV30..NAP..SE;MCV30..NAP..SE..5FC200107-200309

DK.GRAY,TRIM1#

sub73240-AA050

main73240-AA050-E0iACV30..NAP;MCV30..NAP..5FC200107-200309

FAWN,TRIM4#

sub73240-AA050

main73240-AA080-B0iACV30,MCV30..NAP..LE200309-200406

STONE,TRIM1#

sub73240-AA080

main73240-AA080-B0iACV30,MCV30..NAP..LE200406

STONE,TRIM9#

sub73240-AA080

main73240-AA080-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

sub73240-AA080

main73240-AA080-B1iACV30,MCV31..NAP..SE200309-200406

DK.GRAY,TRIM1#

sub73240-AA080

main73240-AA080-E0iACV30,MCV3#..NAP..(LE,SE)200309-200406

FAWN,TRIM4#

sub73240-AA080

main73240-AA090-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

W(POWER SEAT),STONE,TRIM1#

sub73240-AA090

main73240-AA090-B0iACV30,MCV30..NAP..(LE,XLE)200406

W(POWER SEAT),STONE,TRIM9#

sub73240-AA090

main73240-AA090-B1iACV30,MCV31..NAP..SE200309-200406

W(POWER SEAT),DK.GRAY,TRIM1#

sub73240-AA090

main73240-AA090-B1iACV30,MCV31..NAP..SE200406

W(POWER SEAT),DK.GRAY,TRIM9#

sub73240-AA090

main73240-AA090-E0iACV30,MCV3#..NAP200309-200406

W(POWER SEAT),FAWN,TRIM4#

sub73240-AA090

73345GUIDE, REAR SEAT SHOULDER BELT, CENTER

main73345-AA010-B2iMCV30..NAP..(LE,XLE)200107-200406

STONE,TRIM1#

main73345-AA010-B2iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

main73345-AA010-B3iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

main73345-AA010-B3iMCV30..NAP..SE..5FC200107-200406

DK.GRAY,TRIM1#

main73345-AA010-E2iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

FAWN,TRIM4#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-AA070-B0iACV30,MCV30..NAP..(LE,XLE)200107-200202

CHARCOAL,TRIM1#

sub73360-AA080

main73360-AA070-B1iACV30,MCV30..NAP..SE200107-200202

DK. GRAY,TRIM1#

sub73360-AA080

main73360-AA070-E0iACV30,MCV30..NAP200107-200202

FAWN,TRIM4#

sub73360-AA080

main73360-AA080-B0iACV30,MCV30..NAP..(LE,XLE)200202-200309

CHARCOAL,TRIM1#

sub73360-AA080

main73360-AA080-B1iACV30,MCV30..NAP..SE200202-200309

DK. GRAY,TRIM1#

sub73360-AA080

main73360-AA080-E0iACV30,MCV30..NAP200202-200309

FAWN,TRIM4#

sub73360-AA080

main73360-AA100-B0iACV30,MCV30..NAP..(LE,XLE)200406

CHARCOAL,TRIM9#

sub73360-AA100

main73360-AA100-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

CHARCOAL,TRIM1#

sub73360-AA100

main73360-AA100-B1iACV30,MCV31..NAP..SE200309-200406

DK. GRAY,TRIM1#

sub73360-AA100

main73360-AA100-B1iACV30,MCV31..NAP..SE200406

DK. GRAY,TRIM9#

sub73360-AA100

main73360-AA100-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

sub73360-AA100

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-AA070-B0iACV30,MCV30..NAP..(LE,XLE)200107-200202

CHARCOAL,TRIM1#

sub73360-AA080

main73360-AA070-B1iACV30,MCV30..NAP..SE200107-200202

DK. GRAY,TRIM1#

sub73360-AA080

main73360-AA070-E0iACV30,MCV30..NAP200107-200202

FAWN,TRIM4#

sub73360-AA080

main73360-AA080-B0iACV30,MCV30..NAP..(LE,XLE)200202-200309

CHARCOAL,TRIM1#

sub73360-AA080

main73360-AA080-B1iACV30,MCV30..NAP..SE200202-200309

DK. GRAY,TRIM1#

sub73360-AA080

main73360-AA080-E0iACV30,MCV30..NAP200202-200309

FAWN,TRIM4#

sub73360-AA080

main73360-AA100-B0iACV30,MCV30..NAP..(LE,XLE)200406

CHARCOAL,TRIM9#

sub73360-AA100

main73360-AA100-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

CHARCOAL,TRIM1#

sub73360-AA100

main73360-AA100-B1iACV30,MCV31..NAP..SE200309-200406

DK. GRAY,TRIM1#

sub73360-AA100

main73360-AA100-B1iACV30,MCV31..NAP..SE200406

DK. GRAY,TRIM9#

sub73360-AA100

main73360-AA100-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

sub73360-AA100

73373ACOVER, REAR SEAT SHOULDER BELT, RH

main73373-AA020-B0iMCV30..NAP..(LE,XLE)200107-200406

STONE,TRIM1#

main73373-AA020-B0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

main73373-AA020-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

main73373-AA020-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

main73373-AA020-E0iMCV30..NAP200107-200406

FAWN,TRIM4#

73375COVER, REAR SEAT SHOULDER BELT, LH

main73375-AA020-B0iMCV30..NAP..(LE,XLE)200107-200406

STONE,TRIM1#

main73375-AA020-B0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

main73375-AA020-B1iMCV30..NAP..SE..5FC200107-200406

DK.GRAY,TRIM1#

main73375-AA020-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

main73375-AA020-E0iACV30,MCV3#..NAP200107-200406

FAWN,TRIM4#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-AA030-B0iACV30,MCV30..NAP..(LE,XLE)200107-200309

CHARCOAL,TRIM1#

sub73470-AA030

main73470-AA030-B1iACV30,MCV30..NAP..SE200107-200309

DK. GRAY,TRIM1#

sub73470-AA030

main73470-AA030-E0iACV30,MCV30..NAP200107-200309

FAWN,TRIM4#

sub73470-AA030

main73470-AA050-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

CHARCOAL,TRIM1#

sub73470-AA050

main73470-AA050-B0iACV30,MCV30..NAP..(LE,XLE)200406

CHARCOAL,TRIM9#

sub73470-AA050

main73470-AA050-B1iACV30,MCV31..NAP..SE200406

DK. GRAY,TRIM9#

sub73470-AA050

main73470-AA050-B1iACV30,MCV31..NAP..SE200309-200406

DK. GRAY,TRIM1#

sub73470-AA050

main73470-AA050-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

sub73470-AA050

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-AA060-B0iACV30,MCV30..NAP..(LE,XLE)200107-200202

CHARCOAL,TRIM1#

sub73480-AA070

main73480-AA060-B1iACV30,MCV30..NAP..SE200107-200202

DK. GRAY,TRIM1#

sub73480-AA070

main73480-AA060-E0iACV30,MCV30..NAP200107-200202

FAWN,TRIM4#

sub73480-AA070

main73480-AA070-B0iACV30,MCV30..NAP..(LE,XLE)200202-200309

CHARCOAL,TRIM1#

sub73480-AA070

main73480-AA070-B1iACV30,MCV30..NAP..SE200202-200309

DK. GRAY,TRIM1#

sub73480-AA070

main73480-AA070-E0iACV30,MCV30..NAP200202-200309

FAWN,TRIM4#

sub73480-AA070

main73480-AA090-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

CHARCOAL,TRIM1#

sub73480-AA090

main73480-AA090-B0iACV30,MCV30..NAP..(LE,XLE)200406

CHARCOAL,TRIM9#

sub73480-AA090

main73480-AA090-B1iACV30,MCV31..NAP..SE200406

DK. GRAY,TRIM9#

sub73480-AA090

main73480-AA090-B1iACV30,MCV31..NAP..SE200309-200406

DK. GRAY,TRIM1#

sub73480-AA090

main73480-AA090-E0iACV30,MCV3#..NAP200309-200406

FAWN,TRIM4#

sub73480-AA090

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73719-33010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-AA010-B0iMCV30..NAP..(LE,XLE)200107-200406

STONE,TRIM1#

sub73717-AA010

main73717-AA010-B0iACV30,MCV30..NAP..(LE,XLE)200406

STONE,TRIM9#

sub73717-AA010

main73717-AA010-B1iACV30,MCV31..NAP..SE200107-200406

DK.GRAY,TRIM1#

sub73717-AA010

main73717-AA010-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM9#

sub73717-AA010

main73717-AA010-E0iMCV30..NAP200107-200406

FAWN,TRIM4#

sub73717-AA010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008016115

main90080-16115

9008017195

main90080-17195

9008410013

main90084-10013

9008410025

main90084-10025

9008410029

main90084-10029

9010511036

main90105-11036

9010911028

main90109-11028

9016350001

main90163-50001

9017911010

main90179-11010

9017911018

main90179-11018

9017911020

main90179-11020

9018905096

main90189-05096

9026905059

main90269-05059

32 parts on this diagram · 2 diagrams in section
