FRONT SEAT & SEAT TRACK

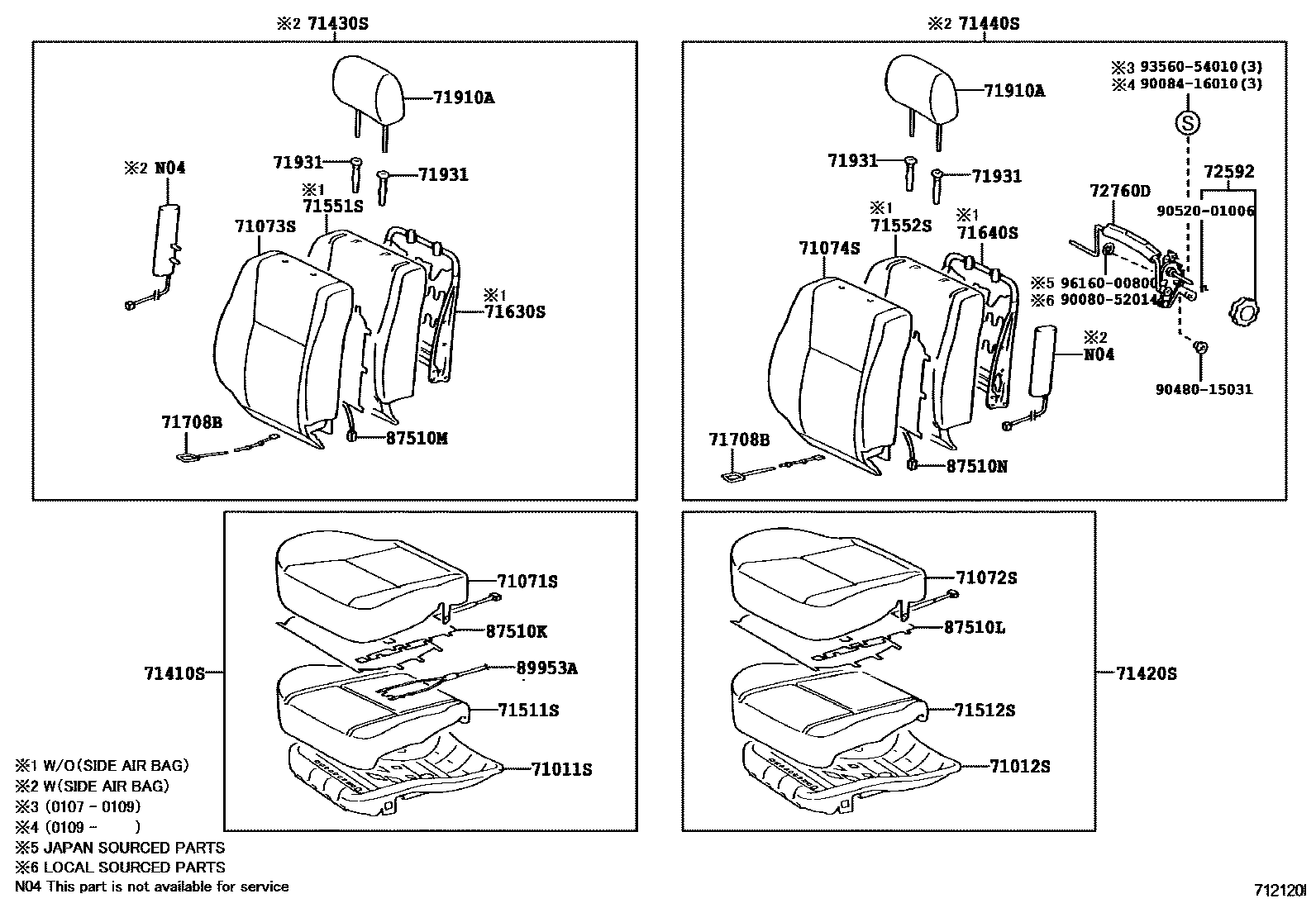

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-AA040i200107-200309
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-AA040i200107-200309
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-06390-B1i200406
STONE,TRIM9#
main71071-06390-E1i200406
FAWN,TRIM4#
main71071-06400-B0i200406
LEATHER SEAT,DK.GRAY,TRIM9#
main71071-06400-E0i200406
LEATHER SEAT,FAWN,TRIM4#
main71071-06410-B0i200406
LEATHER SEAT & W(SEAT HEATER),DK.GRAY,TRIM9#
main71071-06410-E0i200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71071-06420-B1i200406
W(POWER SEAT),STONE,TRIM9#
main71071-06420-E1i200406
W(POWER SEAT),FAWN,TRIM4#
main71071-06430-B0i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71071-06430-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71071-06440-B0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM9#
main71071-06440-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71071-AA190-B1i200107-200309
STONE-COMFORT SEAT I,TRIM1#
main71071-AA190-E1i200107-200309
FAWN-COMFORT SEAT IN,TRIM4#
main71071-AA210-B1i200107-200309
DK. GRAY SPORT INSER,TRIM1#
main71071-AA210-E1i200107-200309
FAWN SPORT INSERT,TRIM4#
main71071-AA220-B0i200107-200309
LEATHER SEAT,DK. GRAY,TRIM1#
main71071-AA220-E0i200107-200309
LEATHER SEAT,FAWN,TRIM4#
main71071-AA270-B1i200107-200309
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71071-AA270-E1i200107-200309
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71071-AA280-B0i200107-200309
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71071-AA280-E0i200107-200309
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71071-AA290-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71071-AA290-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71071-AA330-B0i200107-200309
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71071-AA330-E0i200107-200309
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71071-AA460-B0i200309-200406
STONE-COMFORT SEAT I,TRIM1#
main71071-AA460-E0i200309-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71071-AA470-B0i200309-200406
DK. GRAY SPORT INSER,TRIM1#
main71071-AA470-B0i200406
DK. GRAY SPORT INSER,TRIM9#
main71071-AA470-E0i200309-200406
FAWN SPORT INSERT,TRIM4#
main71071-AA480-B0i200309-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71071-AA480-E0i200309-200406
LEATHER SEAT,FAWN,TRIM4#
main71071-AA490-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71071-AA490-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71071-AA500-B0i200309-200406
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71071-AA500-E0i200309-200406
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71071-AA510-B0i200309-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71071-AA510-E0i200309-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71071-AA520-B0i200309-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71071-AA520-E0i200309-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-AA280-B0i200107-200309
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71071-AA280-E0i200107-200309
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71071-AA290-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71071-AA290-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-06410-B1i200406
STONE,TRIM9#
main71072-06410-E1i200406
FAWN,TRIM4#
main71072-06420-B0i200406
LEATHER SEAT & W(POWER SEAT),DK.GRAY,TRIM9#
main71072-06420-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-06430-B0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK.GRAY,TRIM9#
main71072-06430-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-06440-B1i200409
STONE,TRIM9#
main71072-06440-B1i200406
W(POWER SEAT),STONE,TRIM9#
main71072-06440-E1i200406
W(POWER SEAT),FAWN,TRIM4#
main71072-06440-E1i200409
FAWN,TRIM4#
main71072-06450-B0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM9#
main71072-06450-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-06460-B0i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71072-06460-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-AA200-B1i200107-200309
STONE-COMFORT SEAT I,TRIM1#
main71072-AA200-E1i200107-200309
FAWN-COMFORT SEAT IN,TRIM4#
main71072-AA210-B1i200107-200309
DK. GRAY SPORT INSER,TRIM1#
main71072-AA210-E1i200107-200309
FAWN SPORT INSERT,TRIM4#
main71072-AA240-B1i200107-200309
W(POWER SEAT),DK. GRAY SPORT INSER,TRIM1#
main71072-AA240-E1i200107-200309
W(POWER SEAT),FAWN SPORT INSERT,TRIM4#
main71072-AA250-B0i200107-200309
LEATHER SEAT & W(POWER SEAT),DK. GRAY,TRIM1#
main71072-AA250-E0i200107-200309
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-AA300-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK. GRAY,TRIM1#
main71072-AA300-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-AA310-B1i200107-200309
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71072-AA310-E1i200107-200309
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71072-AA450-B0i200309-200406
STONE-COMFORT SEAT I,TRIM1#
main71072-AA450-E0i200309-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71072-AA460-B0i200406
DK. GRAY SPORT INSER,TRIM9#
main71072-AA460-B0i200309-200406
DK. GRAY SPORT INSER,TRIM1#
main71072-AA460-E0i200309-200406
FAWN SPORT INSERT,TRIM4#
main71072-AA470-B0i200406
W(POWER SEAT),DK. GRAY SPORT INSER,TRIM9#
main71072-AA470-B0i200309-200406
W(POWER SEAT),DK. GRAY SPORT INSER,TRIM1#
main71072-AA470-E0i200309-200406
W(POWER SEAT),FAWN SPORT INSERT,TRIM4#
main71072-AA480-B0i200309-200406
LEATHER SEAT & W(POWER SEAT),DK. GRAY,TRIM1#
main71072-AA480-E0i200309-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-AA490-B0i200309-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK. GRAY,TRIM1#
main71072-AA490-E0i200309-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-AA500-B0i200309-200406
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71072-AA500-E0i200309-200406
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71072-AA510-B0i200309-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71072-AA510-E0i200309-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-AA520-B0i200309-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71072-AA520-E0i200309-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
71073KICK PLATE, FRONT SEATBACK, RH
main71074-AA760-B0i200406
STONE,TRIM9#
main71074-AA760-B0i200309-200406
STONE,TRIM1#
main71074-AA760-B1i200309-200406
DK. GRAY,TRIM1#
main71074-AA760-B1i200406
DK. GRAY,TRIM9#
main71074-AA760-E0i200309-200406
FAWN,TRIM4#
main71074-AA780-B0i200309-200406
LEATHER SEAT,DK.GRAY,TRIM1#
main71074-AA780-B0i200406
LEATHER SEAT,DK.GRAY,TRIM9#
main71074-AA780-E0i200309-200406
LEATHER SEAT,FAWN,TRIM4#
main71074-AA800-B0i200406
W(POWER SEAT),STONE,TRIM9#
main71074-AA800-B0i200309-200406
W(POWER SEAT),STONE,TRIM1#
main71074-AA800-E0i200309-200406
W(POWER SEAT),FAWN,TRIM4#
main71074-AA810-B0i200309-200406
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA810-B0i200406
W(SRS SIDE AIR BAG),STONE,TRIM9#
main71074-AA810-B1i200309-200406
W(SRS SIDE AIR BAG),DK. GRAY,TRIM9#
main71074-AA810-E0i200309-200406
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA820-B0i200309-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71074-AA820-B0i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71074-AA820-E0i200309-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-AA840-B0i200309-200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA840-B0i200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-AA840-E0i200309-200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA850-B0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-AA850-B0i200406
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-AA850-E0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA860-B0i200309-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA860-B0i200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-AA860-E0i200309-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-06480-B1i200406-200602
STONE,TRIM9#
main71073-06480-E1i200406-200602
FAWN,TRIM4#
main71073-06490-B1i200406-200602
W(SRS SIDE AIR BAG),STONE,TRIM9#
main71073-06490-E1i200406-200602
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-06500-B0i200406-200602
LEATHER SEAT,STONE,TRIM9#
main71073-06500-E0i200406-200602
LEATHER SEAT,FAWN,TRIM4#
main71073-06510-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM9#
main71073-06510-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-06520-B0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM9#
main71073-06520-E0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-06530-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM9#
main71073-06530-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-06540-B0i200406-200602
LEATHER SEAT,DK.GRAY,TRIM9#
main71073-06540-E0i200406-200602
LEATHER SEAT,FAWN,TRIM4#
main71073-06550-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER),DK.GRAY,TRIM9#
main71073-06550-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-06560-B0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71073-06560-E0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-06570-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71073-06570-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AA290-B0i200107-200309
STONE-COMFORT SEAT I,TRIM1#
main71073-AA290-E0i200107-200309
FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA300-B0i200107-200309
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71073-AA300-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA320-B0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71073-AA320-E0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA330-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71073-AA330-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71073-AA340-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-AA340-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AA350-B0i200107-200309
DK. GRAY SPORT INSER,TRIM1#
main71073-AA350-E0i200107-200309
FAWN SPORT INSERT,TRIM4#
main71073-AA360-B0i200107-200309
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71073-AA360-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71073-AA380-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71073-AA380-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AA400-B0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71073-AA400-E0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71073-AA490-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET),DK. GRAY,TRIM1#
main71073-AA490-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET),FAWN,TRIM4#
main71073-AA500-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER),DK. GRAY,TRIM1#
main71073-AA500-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER),FAWN,TRIM4#
main71073-AA510-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71073-AA510-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AA520-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-AA520-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AA530-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),STONE,TRIM1#
main71073-AA530-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),FAWN,TRIM4#
main71073-AA540-B0i200107-200309
W(SEAT BACK POCKET),DK. GRAY SPORT INSER,TRIM1#
main71073-AA540-E0i200107-200309
W(SEAT BACK POCKET),FAWN SPORT INSERT,TRIM4#
main71073-AA550-B0i200107-200309
W(SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71073-AA550-E0i200107-200309
W(SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA560-B0i200107-200309
STONE-COMFORT SEAT I,TRIM1#
main71073-AA560-E0i200107-200309
FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA570-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71073-AA570-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA850-B0i200309-200406
STONE-COMFORT SEAT I,TRIM1#
main71073-AA850-E0i200309-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA861-B0i200309-200406
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-AA861-E0i200309-200406
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AA890-B0i200309-200406
LEATHER SEAT,STONE,TRIM1#
main71073-AA890-E0i200309-200406
LEATHER SEAT,FAWN,TRIM4#
main71073-AAA00-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM1#
main71073-AAA00-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-AAA11-B0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-AAA11-E0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AAA21-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-AAA21-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AAA30-B0i200406-200602
DK. GRAY SPORT INSER,TRIM9#
main71073-AAA30-B0i200309-200406
DK. GRAY SPORT INSER,TRIM1#
main71073-AAA30-E0i200309-200602
FAWN SPORT INSERT,TRIM4#
main71073-AAA41-B0i200309-200406
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71073-AAA41-B0i200406-200602
W(SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71073-AAA41-E0i200309-200602
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AAA51-B0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71073-AAA51-E0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AAA61-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71073-AAA61-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-AAA80-B0i200309-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71073-AAA80-E0i200309-200406
LEATHER SEAT,FAWN,TRIM4#
main71073-AAA90-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71073-AAA90-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
71074KICK PLATE, FRONT SEATBACK, LH
main71074-AA760-B0i200309-200406
STONE,TRIM1#
main71074-AA760-B0i200406
STONE,TRIM9#
main71074-AA760-B1i200309-200406
DK. GRAY,TRIM1#
main71074-AA760-B1i200406
DK. GRAY,TRIM9#
main71074-AA760-E0i200309-200406
FAWN,TRIM4#
main71074-AA800-B0i200409
STONE,TRIM9#
main71074-AA800-B0i200406
W(POWER SEAT),STONE,TRIM9#
main71074-AA800-B0i200309-200406
W(POWER SEAT),STONE,TRIM1#
main71074-AA800-B1i200406
W(POWER SEAT),DK. GRAY,TRIM9#
main71074-AA800-B1i200309-200406
W(POWER SEAT),DK. GRAY,TRIM1#
main71074-AA800-E0i200409
FAWN,TRIM4#
main71074-AA800-E0i200309-200406
W(POWER SEAT),FAWN,TRIM4#
main71074-AA810-B0i200309-200406
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA810-B1i200309-200406
W(SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71074-AA810-E0i200309-200406
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA820-B0i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71074-AA820-B0i200309-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71074-AA820-B1i200406
LEATHER SEAT & W(POWER SEAT),DK.GRAY,TRIM9#
main71074-AA820-B1i200309-200406
LEATHER SEAT & W(POWER SEAT),DK.GRAY,TRIM1#
main71074-AA820-E0i200309-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-AA840-B0i200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-AA840-B0i200309-200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA840-B1i200309-200406
W(POWER SEAT & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-AA840-E0i200309-200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA860-B0i200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-AA860-B0i200309-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA860-B1i200309-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-AA860-E0i200309-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-06480-B1i200406-200602
STONE,TRIM9#
main71073-06480-E1i200406-200602
FAWN,TRIM4#
main71073-06500-B0i200406-200602
LEATHER SEAT,STONE,TRIM9#
main71073-06500-E0i200406-200602
LEATHER SEAT,FAWN,TRIM4#
main71073-06510-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM9#
main71073-06510-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-06540-B0i200406-200602
LEATHER SEAT,DK.GRAY,TRIM9#
main71073-06540-E0i200406-200602
LEATHER SEAT,FAWN,TRIM4#
main71073-06550-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER),DK.GRAY,TRIM9#
main71073-06550-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-AA290-B0i200107-200309
STONE-COMFORT SEAT I,TRIM1#
main71073-AA290-E0i200107-200309
FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA330-B0i200107-200309
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71073-AA330-E0i200107-200309
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71073-AA350-B0i200107-200309
DK. GRAY SPORT INSER,TRIM1#
main71073-AA350-E0i200107-200309
FAWN SPORT INSERT,TRIM4#
main71073-AA530-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71073-AA530-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71073-AA560-B0i200107-200309
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71073-AA560-B0i200107-200309
STONE-COMFORT SEAT I,TRIM1#
main71073-AA560-E0i200107-200309
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA560-E0i200107-200309
FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA850-B0i200309-200406
STONE-COMFORT SEAT I,TRIM1#
main71073-AA850-E0i200309-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71073-AA890-B0i200309-200406
LEATHER SEAT,STONE,TRIM1#
main71073-AA890-E0i200309-200406
LEATHER SEAT,FAWN,TRIM4#
main71073-AAA00-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM1#
main71073-AAA00-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-AAA30-B0i200406-200602
DK. GRAY SPORT INSER,TRIM9#
main71073-AAA30-B0i200309-200406
DK. GRAY SPORT INSER,TRIM1#
main71073-AAA30-E0i200309-200602
FAWN SPORT INSERT,TRIM4#
main71073-AAA80-B0i200309-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71073-AAA80-E0i200309-200406
LEATHER SEAT,FAWN,TRIM4#
main71073-AAA90-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71073-AAA90-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71074-06360-B1i200406-200602
W(SRS SIDE AIR BAG),STONE,TRIM9#
main71074-06360-E1i200406-200602
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-06370-B0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM9#
main71074-06370-E0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-06380-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-06380-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-06390-B0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-06390-E0i200406-200602
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-06400-B0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-06400-E0i200406-200602
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA180-B0i200107-200309
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71074-AA180-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71074-AA190-B0i200107-200309
W(POWER SEAT & SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71074-AA190-E0i200107-200309
W(POWER SEAT & SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71074-AA200-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA200-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA210-B0i200107-200309
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71074-AA210-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-AA220-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71074-AA220-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA230-B0i200107-200309
W(POWER SEAT & SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71074-AA230-E0i200107-200309
W(POWER SEAT & SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-AA320-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK. GRAY,TRIM1#
main71074-AA320-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71074-AA330-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-AA330-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA340-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA340-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA360-B0i200107-200309
LEATHER SEAT & W(POWER SEAT),DK. GRAY,TRIM1#
main71074-AA360-E0i200107-200309
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-AA370-B0i200107-200309
W(POWER SEAT),DK. GRAY SPORT INSER,TRIM1#
main71074-AA370-E0i200107-200309
W(POWER SEAT),FAWN SPORT INSERT,TRIM4#
main71074-AA681-B0i200309-200406
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA681-E0i200309-200406
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA701-B0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA701-E0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA711-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-AA711-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA721-B0i200406-200602
W(SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-AA721-B0i200309-200406
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-AA721-E0i200309-200602
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA731-B0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-AA731-E0i200309-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-AA741-B0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-AA741-E0i200309-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-AA240-B0i200107-200309
LEATHER SEAT,STONE,TRIM1#
main71410-AA240-E0i200107-200309
LEATHER SEAT,FAWN,TRIM4#
main71410-AA250-B0i200107-200309
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM1#
main71410-AA250-E0i200107-200309
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71410-AA380-B1i200107-200309
STONE,TRIM1#
main71410-AA380-E1i200107-200309
FAWN,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-AA190-B1i200107-200309
STONE,TRIM1#
main71420-AA190-E1i200107-200309
FAWN,TRIM4#
main71420-AA200-B0i200107-200309
LEATHER SEAT,STONE,TRIM1#
main71420-AA200-E0i200107-200309
LEATHER SEAT,FAWN,TRIM4#
main71420-AA210-B0i200107-200309
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM1#
main71420-AA210-E0i200107-200309
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71420-AA220-B1i200107-200309
STONE,TRIM1#
main71420-AA220-E1i200107-200309
FAWN,TRIM4#
main71420-AA230-B0i200107-200309
LEATHER SEAT,STONE,TRIM1#
main71420-AA230-E0i200107-200309
LEATHER SEAT,FAWN,TRIM4#
main71420-AA240-B0i200107-200309
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM1#
main71420-AA240-E0i200107-200309
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-AA240-B0i200107-200309
W(SEAT BACK POCKET),STONE,TRIM1#
main71430-AA240-E0i200107-200309
W(SEAT BACK POCKET),FAWN,TRIM4#
main71430-AA250-B0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA250-E0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA260-B0i200107-200309
STONE,TRIM1#
main71430-AA260-E0i200107-200309
FAWN,TRIM4#
main71430-AA270-B0i200107-200309
W(SEAT BACK POCKET),STONE,TRIM1#
main71430-AA270-E0i200107-200309
W(SEAT BACK POCKET),FAWN,TRIM4#
main71430-AA280-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71430-AA280-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71430-AA300-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),STONE,TRIM1#
main71430-AA300-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),FAWN,TRIM4#
main71430-AA310-B0i200107-200309
STONE,TRIM1#
main71430-AA310-E0i200107-200309
FAWN,TRIM4#
main71430-AA320-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET),STONE,TRIM1#
main71430-AA320-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET),FAWN,TRIM4#
main71430-AA330-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER),STONE,TRIM1#
main71430-AA330-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER),FAWN,TRIM4#
main71430-AA340-B0i200107-200309
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA340-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA390-B0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA390-E0i200107-200309
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA400-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA400-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA410-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA410-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA420-B0i200107-200309
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA420-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA430-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71430-AA430-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71430-AA440-B0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA440-E0i200107-200309
LEATHER SEAT & W(SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71430-AA550-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71430-AA550-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71430-AA560-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71430-AA560-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-AA150-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71440-AA150-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71440-AA170-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA170-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA180-B0i200107-200309
STONE,TRIM1#
main71440-AA180-E0i200107-200309
FAWN,TRIM4#
main71440-AA250-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71440-AA250-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71440-AA260-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71440-AA260-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71440-AA270-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),STONE,TRIM1#
main71440-AA270-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),FAWN,TRIM4#
main71440-AA280-B0i200107-200309
STONE,TRIM1#
main71440-AA280-E0i200107-200309
FAWN,TRIM4#
main71440-AA290-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),STONE,TRIM1#
main71440-AA290-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET),FAWN,TRIM4#
main71440-AA300-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),STONE,TRIM1#
main71440-AA300-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER),FAWN,TRIM4#
main71440-AA310-B0i200107-200309
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA310-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA320-B0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA320-E0i200107-200309
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA330-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA330-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA340-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA340-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA350-B0i200107-200309
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA350-E0i200107-200309
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA360-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA360-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71440-AA370-B0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71440-AA370-E0i200107-200309
LEATHER SEAT & W(POWER SEAT & SEAT BACK POCKET & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-AA030i200107-200309
main71511-AA050i200309-200406
W(POWER SEAT)
main71511-AA060i200309-200406
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-AA030i200107-200309
main71512-AA030i200309-200406
W(POWER SEAT)
main71512-AA030i200409
main71512-AA040i200309-200406
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-AA090i200107-200309
main71551-AA110i200107-200309
LEATHER SEAT
main71551-AA130i200309-200406
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-AA090i200107-200309
main71551-AA110i200107-200309
LEATHER SEAT
main71551-AA130i200309-200406
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-AA050i200107-200309
main71630-AA060i200107-200309
LEATHER SEAT
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-AA040i200107-200309
main71640-AA050i200107-200309
LEATHER SEAT
71708BSTRAP SUB-ASSY, SEAT COVER
main71708-AA010i200107-200210
sub71708-AA020
main71708-AA020i200210-200406
71910AHEADREST ASSY, FRONT SEAT
main71910-06200-E1i200406
FAWN,TRIM4#
main71910-06200-K1i200406
STONE,TRIM9#
main71910-06210-E0i200406
LEATHER SEAT,FAWN,TRIM4#
main71910-06210-K0i200406
LEATHER SEAT,STONE,TRIM9#
main71910-06210-K1i200406
LEATHER SEAT,DK.GRAY,TRIM9#
main71910-06220-E1i200406
FAWN,TRIM4#
main71910-06220-K1i200406
STONE,TRIM9#
main71910-AA130-B0i200107-200309
STONE,TRIM13
sub71910-AA130
main71910-AA130-B1i200309-200406
STONE,TRIM13
sub71910-AA130
main71910-AA130-E0i200107-200309
FAWN,TRIM43
sub71910-AA130
main71910-AA130-E1i200309-200406
FAWN,TRIM43
sub71910-AA130
main71910-AA140-B0i200107-200309
STONE,TRIM14
sub71910-AA140
main71910-AA140-B1i200309-200406
DK.GRAY,TRIM14
sub71910-AA140
main71910-AA140-E0i200107-200309
FAWN,TRIM44
sub71910-AA140
main71910-AA140-E1i200309-200406
FAWN,TRIM44
sub71910-AA140
main71910-AA150-B0i200107-200309
LEATHER SEAT,STONE,TRIM13
sub71910-AA150
main71910-AA150-B1i200107-200309
LEATHER SEAT,DK.GRAY,TRIM14
sub71910-AA150
main71910-AA150-B2i200309-200406
LEATHER SEAT,STONE,TRIM13
sub71910-AA150
main71910-AA150-B3i200309-200406
LEATHER SEAT,DK.GRAY,TRIM14
sub71910-AA150
main71910-AA150-E0i200107-200309
LEATHER SEAT,FAWN,TRIM43
sub71910-AA150
main71910-AA150-E0i200107-200309
LEATHER SEAT,FAWN,TRIM44
sub71910-AA150
main71910-AA150-E1i200309-200406
LEATHER SEAT,FAWN,TRIM44
sub71910-AA150
main71910-AA150-E1i200309-200406
LEATHER SEAT,FAWN,TRIM43
sub71910-AA150
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-B1i200406
W(LOCK),STONE,TRIM9#
sub71930-47010
sub71930-44020
main71930-47010-B1i200107-200406
W(LOCK),STONE,TRIM1#
sub71930-47010
sub71930-44020
main71930-47010-B2i200107-200406
W(LOCK),DK.GRAY,TRIM1#
sub71930-47010
sub71930-44020
main71930-47010-B2i200406
W(LOCK),DK.GRAY,TRIM9#
sub71930-47010
sub71930-44020
main71930-47010-E0i200107-200406
W(LOCK),FAWN,TRIM4#
sub71930-47010
sub71930-44020
main71931-47010-B1i200406
W/O(LOCK),STONE,TRIM9#
sub71931-47010
sub71931-42020
main71931-47010-B1i200107-200406
W/O(LOCK),STONE,TRIM1#
sub71931-47010
sub71931-42020
main71931-47010-B2i200406
W/O(LOCK),DK.GRAY,TRIM9#
sub71931-47010
sub71931-42020
main71931-47010-B2i200107-200406
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-47010
sub71931-42020
main71931-47010-E0i200107-200406
W/O(LOCK),FAWN,TRIM4#
sub71931-47010
sub71931-42020
72592KNOB, RECLINING ADJUSTER
main72592-20040-B7i200107-200309
STONE,TRIM1#
sub72592-20040
main72592-20040-B8i200107-200309
DK.GRAY,TRIM1#
sub72592-20040
main72592-20040-E3i200107-200309
FAWN,TRIM4#
sub72592-20040
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-AA020i200107-200309
main72760-AA050i200309-200602
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-06010i200107-200309
main87510-06030i200309-200406
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-06010i200107-200309
main87510-06030i200309-200406
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-06020i200107-200309
main87530-06010i200309-200406
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-06020i200107-200309
main87530-06010i200309-200406
89953ASENSOR, BELT WARNING OCCUPANT DETECTION
main89953-AA010i200107-200309
9008052014
main90080-52014
9008416010
main90084-16010
9048015031
main90480-15031
9052001006
main90520-01006
9356054010
main93560-54010
9616000800
main96160-00800

34 parts on this diagram · 11 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
