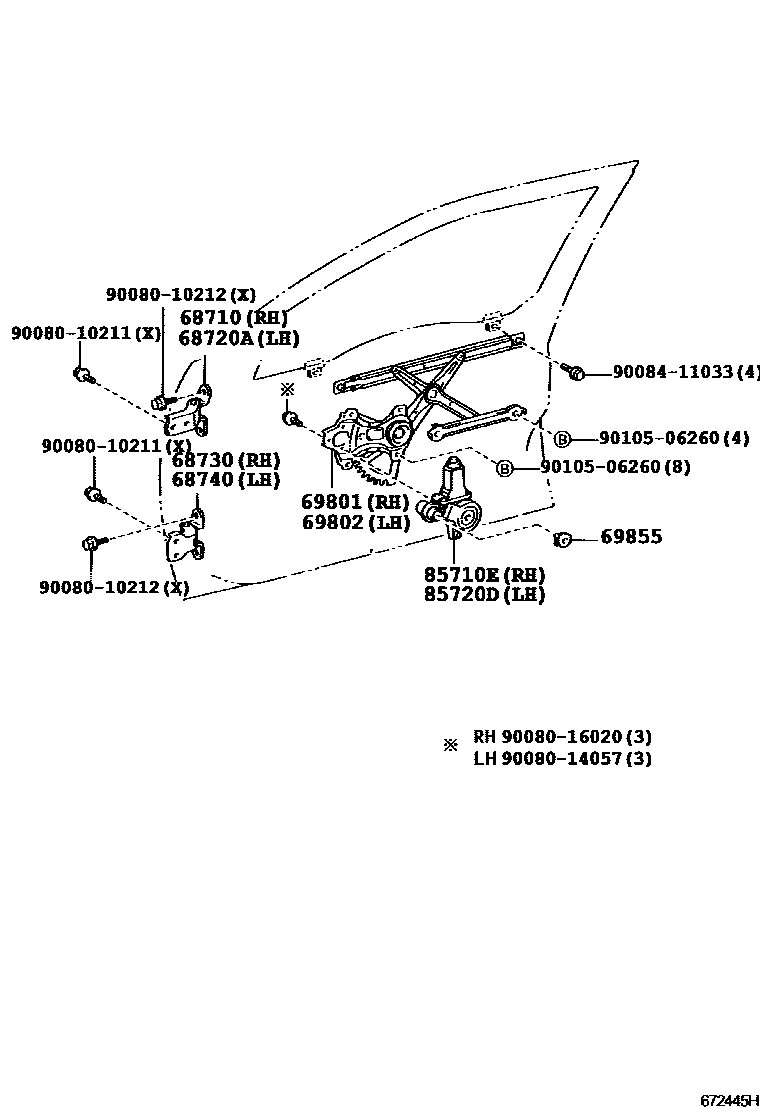

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-AA020iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

68720AHINGE ASSY, FRONT DOOR, LH

main68720-AA020iACV30,MCV3#..NAP200107-200406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iMCV30..NAP..SE..5FC200107-200406

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iMCV30..NAP200107-200406

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-AA030iACV30,MCV30..NAP200107-200304

main69801-AA031iMCV3#..NAP;ACV30..NAP..4FC200304-200401

sub69801-AA032

main69801-AA032iACV30,MCV3#..NAP200401-200406

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-AA030iACV30,MCV30..NAP200107-200304

main69802-AA031iMCV3#..NAP;ACV30..NAP..4FC200304-200401

sub69802-AA032

main69802-AA032iMCV3#..NAP200401-200406

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iACV30,MCV30..NAP200107-200304

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AA050iACV30,MCV3#..NAP200107-200602

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AA050iMCV31..NAP;MCV30..NAP..LE..5FC200107-200406

main85720-AA060iACV30,MCV30..NAP..XLE200107-200406

9008010211

main90080-10211

9008010212

main90080-10212

9008014057

main90080-14057

9008016020

main90080-16020

9008411033

main90084-11033

9010506260

main90105-06260

15 parts on this diagram · 1 diagram in section
