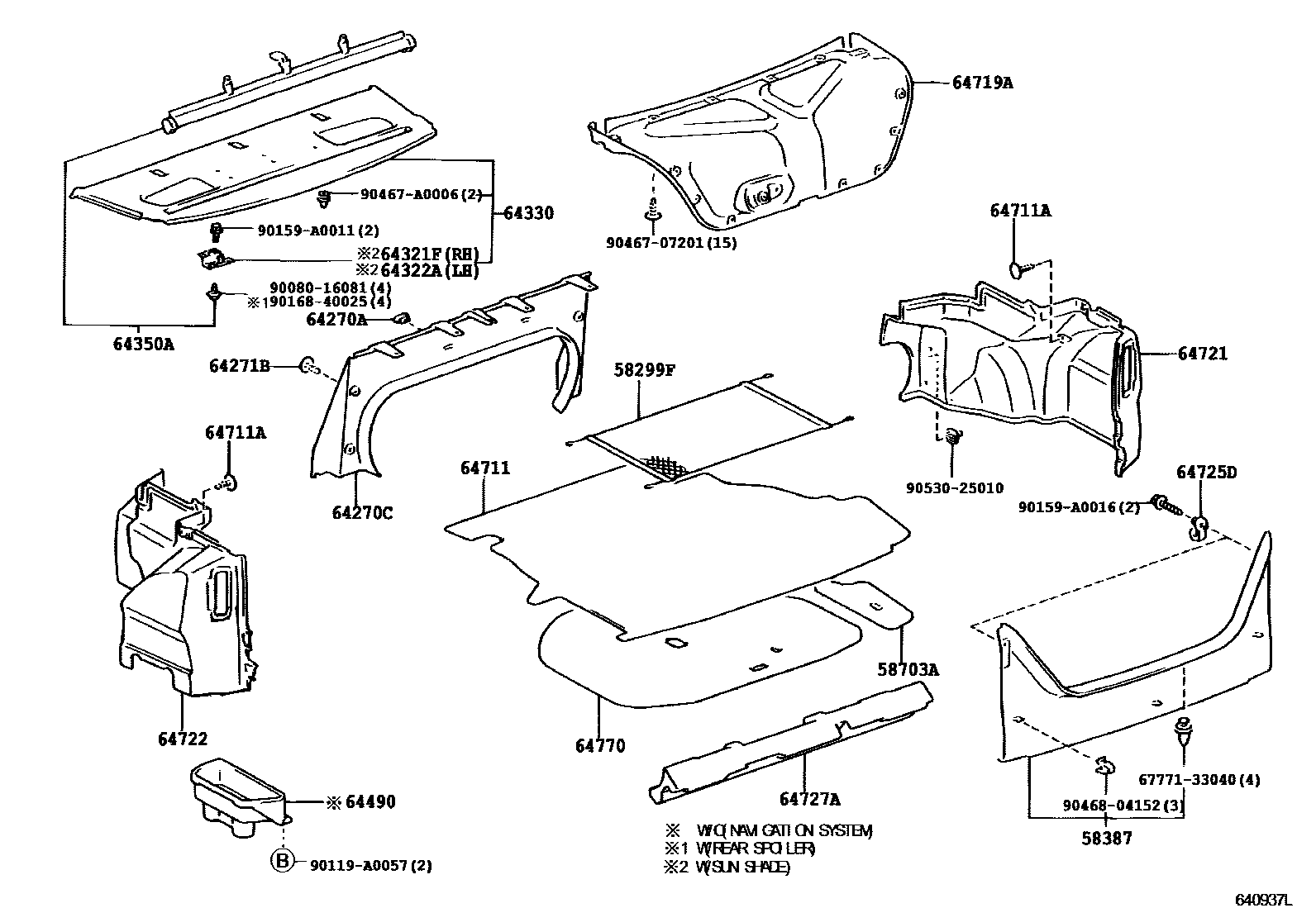

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58299FNET, BAGGAGE HOLDER

main58299-AA010iACV30,MCV3#..NAP200107-200406

58387PLATE, REAR FLOOR FINISH

main58387-AA020iACV30,MCV3#..NAP200107-200406

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06040iACV30,MCV3#..NAP200107-200406

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-06151-C0iMCV30..NAP200107-200406

BLACK,TRIM1#,4#

sub90467-06153

main90467-06151-C0iACV30,MCV3#..NAP200406

BLACK

sub90467-06153

64270CBOARD ASSY, ROOM PARTITION

main64271-AA030-C0iACV30,MCV3#..NAP200406

BLACK,TRIM4#,9#

main64271-AA030-C0iMCV30..NAP200107-200406

BLACK,TRIM1#,4#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07076-C0iMCV30..NAP200107-200406

BLACK,TRIM1#,4#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iACV30,MCV3#..NAP200406-200507

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-A0016-C0iACV30,MCV3#..NAP200508

BLACK

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64321-AA010iACV30,MCV3#..NAP200107-200406

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64321-AA010iACV30,MCV3#..NAP200107-200406

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AA160-B1iMCV30..NAP..LE200107-200406

STONE,TRIM1#

main64330-AA160-B1iACV30,MCV30..NAP..LE200406

STONE,TRIM9#

main64330-AA160-E1iACV30..NAP..LE;MCV30..NAP..LE..5FC200107-200406

FAWN,TRIM4#

main64330-AA170-B1iACV30,MCV30..NAP..LE200406

SPEAKER GRILLE = FABRIC,STONE,TRIM9#

main64330-AA170-B1iMCV30..NAP..LE200107-200406

SPEAKER GRILLE = FABRIC,STONE,TRIM1#

main64330-AA170-B2iACV30,MCV31..NAP..SE200406

SPEAKER GRILLE = FABRIC,DK.GRAY,TRIM9#

main64330-AA170-B2iMCV30..NAP..SE200301-200406

SPEAKER GRILLE = FABRIC,DK.GRAY,TRIM1#

main64330-AA170-E1iACV30..NAP..SE200107-200406

SPEAKER GRILLE = FABRIC,FAWN,TRIM4#

main64330-AA180-B1iMCV30..NAP..LE200107-200406

W(SUN SHADE),STONE,TRIM1#

main64330-AA180-B1iACV30,MCV30..NAP..LE200406

W(SUN SHADE),STONE,TRIM9#

main64330-AA180-E1iACV30..NAP..LE;MCV30..NAP..LE..5FC200107-200406

W(SUN SHADE),FAWN,TRIM4#

main64330-AA190-B1iMCV30..NAP;ACV30..NAP..XLE200406

W(SUN SHADE) & SPEAKER GRILLE = FABRIC TYPE,STONE,TRIM9#

main64330-AA190-B1iMCV30..NAP..(LE,XLE)200107-200406

W(SUN SHADE) & SPEAKER GRILLE = FABRIC TYPE,STONE,TRIM1#

main64330-AA190-B2iACV30,MCV31..NAP..SE200301-200406

W(SUN SHADE) & SPEAKER GRILLE = FABRIC TYPE,DK.GRAY,TRIM1#

main64330-AA190-B2iACV30,MCV31..NAP..SE200406

W(SUN SHADE) & SPEAKER GRILLE = FABRIC TYPE,DK.GRAY,TRIM9#

main64330-AA190-E1iACV30..NAP..LE200107-200406

W(SUN SHADE) & SPEAKER GRILLE = FABRIC TYPE,FAWN,TRIM4#

main64330-AA200-B1iACV30,MCV30..NAP..SE200107-200301

DK. GRAY PACKAGE TRA,TRIM1#

main64330-AA200-E1iACV30,MCV30..NAP..SE200107-200301

FAWN,TRIM4#

main64330-AA210-B1iMCV30..NAP..SE..5FC200107-200406

W(REAR SPOILER) & SPEAKER GRILLE = FABRIC,DK. GRAY PACKAGE TRA,TRIM1#

main64330-AA210-B1iACV30,MCV31..NAP..SE200406

W(REAR SPOILER) & SPEAKER GRILLE = FABRIC,DK. GRAY PACKAGE TRA,TRIM9#

main64330-AA210-E1iMCV30..NAP..SE200107-200406

W(REAR SPOILER) & SPEAKER GRILLE = FABRIC,FAWN,TRIM4#

main64330-AA220-B1iACV30,MCV30..NAP..SE200107-200301

W(SUN SHADE),DK. GRAY PACKAGE TRA,TRIM1#

main64330-AA220-E1iACV30,MCV30..NAP..SE200107-200301

W(SUN SHADE),FAWN,TRIM4#

main64330-AA230-B1iACV30,MCV31..NAP..SE200406

W(SUN SHADE & REAR SPOILER) & SPEAKER GRILLE = FABRIC TYPE,DK. GRAY PACKAGE TRA,TRIM9#

main64330-AA230-B1iMCV30..NAP..SE..5FC200107-200406

W(SUN SHADE & REAR SPOILER) & SPEAKER GRILLE = FABRIC TYPE,DK. GRAY PACKAGE TRA,TRIM1#

main64330-AA230-E1iACV30,MCV31..NAP..SE200107-200406

W(SUN SHADE & REAR SPOILER) & SPEAKER GRILLE = FABRIC TYPE,FAWN,TRIM4#

64350ASHADE ASSY, REAR WINDOW

main64333-AA010iACV30,MCV3#..NAP200107-200406

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-AA010iACV30,MCV3#..NAP200107-200406

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-AA030-C0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

BLACK,TRIM1#,4#

main64711-AA030-C0iACV30,MCV3#..NAP200406

BLACK,TRIM4#,9#

main64711-AA040-C0iMCV30..NAP..(SE,XLE)..5FC200107-200309

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90080-46294iACV30..NAP..(SE,XLE)200107-200309

main90467-07042-C0iMCV30..NAP200107-200406

BLACK,TRIM1#,4#

sub90467-07042

sub90467-06175

main90467-07042-C0iACV30,MCV3#..NAP200406

BLACK

sub90467-07042

sub90467-06175

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-AA050-C0iMCV30..NAP200107-200406

BLACK,TRIM1#,4#

main64719-AA050-C0iACV30,MCV3#..NAP200406

BLACK,TRIM4#,9#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64710-AA010-C0iACV30,MCV30..NAP200107-200406

BLACK,TRIM1#,4#

main64710-AA010-C0iACV30,MCV3#..NAP200406

BLACK,TRIM4#,9#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64720-AA010-C0iACV30,MCV3#..NAP200107-200406

BLACK,TRIM1#,4#

main64720-AA010-C0iACV30,MCV3#..NAP200406

BLACK,TRIM4#,9#

main64720-AA020-C0iMCV30..NAP..(SE,XLE)200301-200309

W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-AC010-C0iMCV30..NAP..SE..5FC200107-200406

BLACK,TRIM1#,4#

main64725-AC010-C0iACV30,MCV3#..NAP200406

BLACK

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-AA010iACV30,MCV30..NAP200107-200301

sub64727-AA011

main64727-AA011iACV30,MCV3#..NAP200301-200406

64770COVER ASSY, SPARE WHEEL

main64770-06030iACV30,MCV30..NAP..LE200107-200108

sub64770-06031

main64770-06080iACV30,MCV30..NAP..LE..4FC200107-200504

sub64770-06081

main64770-06081iACV30,MCV30..NAP200505

main64770-06130iMCV31..NAP200406-200504

sub64770-06131

main64770-06131iMCV31..NAP200505-200506

sub64770-06132

main64770-06132iMCV31..NAP200507

main64770-07010iACV30..NAP..LE200107-200408

TEMPORARY TIRE = SPARE TIRE

sub64770-07011

main64770-07011iACV30..NAP..LE200409-200410

TEMPORARY TIRE = SPARE TIRE

sub64770-07012

main64770-07012iACV30..NAP..LE200410-200504

TEMPORARY TIRE = SPARE TIRE

sub64770-07013

main64770-07013iACV30..NAP..LE200505-200508

TEMPORARY TIRE = SPARE TIRE

sub64770-07014

main64770-07014iACV30..NAP..LE200509

TEMPORARY TIRE = SPARE TIRE

6777133040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33040

9008016081

main90080-16081

90119A0057

main90119-A0057

90159A0011

main90159-A0011

90159A0016

main90159-A0016

9016840025

main90168-40025

9046707201

main90467-07201

90467A0006

main90467-A0006

9046804152

main90468-04152

9053025010

main90530-25010

29 parts on this diagram · 1 diagram in section
