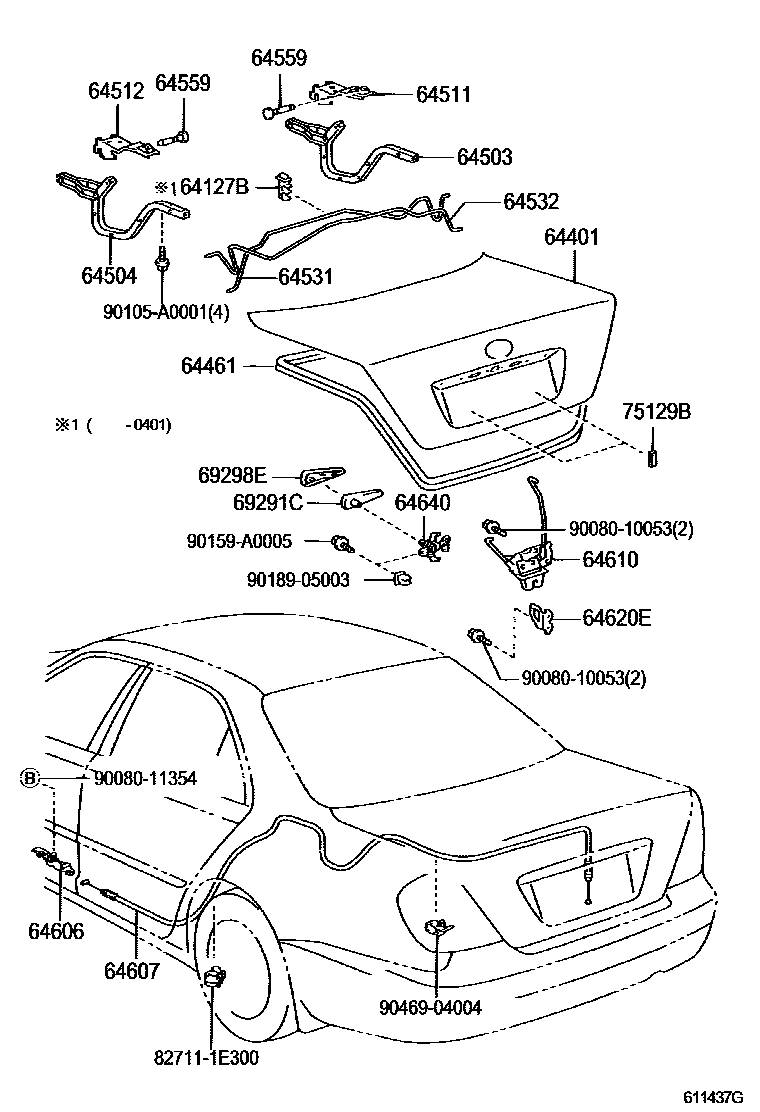

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iACV30..NAP;MCV30..NAP..5FC200107-200401

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-AA060iMCV31..NAP;ACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200401

sub64401-AA061

main64401-AA061iACV30,MCV3#..NAP200401-200406

main64401-AA070iMCV30..NAP..SE..5FC200107-200401

W(REAR SPOILER)

sub64401-AA071

main64401-AA071iACV30,MCV30..NAP..(LE,XLE)200401-200411

W(REAR SPOILER)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-AA030iACV30,MCV3#..NAP200107-200406

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-AA040iMCV30..NAP200107-200406

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-AA040iMCV30..NAP200107-200406

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-AA020iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-AA020iMCV30..NAP200107-200406

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-AA020iMCV30..NAP..(LE,XLE)..4FC200107-200401

main64531-AA070iMCV31..NAP200107-200401

W(REAR SPOILER)

main64531-AA070iMCV30..NAP..SE200107-200301

main64531-AA100iACV30,MCV30..NAP..(LE,XLE)200308-200406

main64531-AA110iACV30..NAP..SE200308-200406

W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-AA060iACV30,MCV3#..NAP200107-200401

main64532-AA070iMCV30..NAP..SE200107-200301

main64532-AA070iACV30..NAP..SE;MCV30..NAP..SE..5FC200107-200401

W(REAR SPOILER)

main64532-AA100iACV30,MCV30..NAP200308-200406

main64532-AA110iACV30,MCV31..NAP..SE200308-200406

W(REAR SPOILER)

64559PIN, LUGGAGE DOOR HINGE

main64559-AC020iACV30,MCV3#..NAP200107-200406

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-AA020iACV30,MCV3#..NAP200107-200406

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-AA040iACV30,MCV3#..NAP200107-200406

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-AA020iACV30,MCV3#..NAP200107-200406

W(KEY LESS ENTRY)

main64610-AA070iACV30,MCV3#..NAP..(LE,SE)200107-200406

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-AA010iACV30,MCV3#..NAP200107-200406

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-AA020iACV30,MCV3#..NAP200107-200406

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-AA020iACV30,MCV3#..NAP200107-200406

69298ECOVER, LUGGAGE COMPONENT DOOR INSIDE HANDLE

main69298-AA020iACV30,MCV3#..NAP200107-200406

75129BCUSHION, REAR LICENCE PLATE

main75129-AC010iACV30,MCV3#..NAP200107-200406

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9008010053

main90080-10053

9008011354

main90080-11354

90105A0001

main90105-A0001

90159A0005

main90159-A0005

9018905003

main90189-05003

9046904004

main90469-04004

25 parts on this diagram · 1 diagram in section
