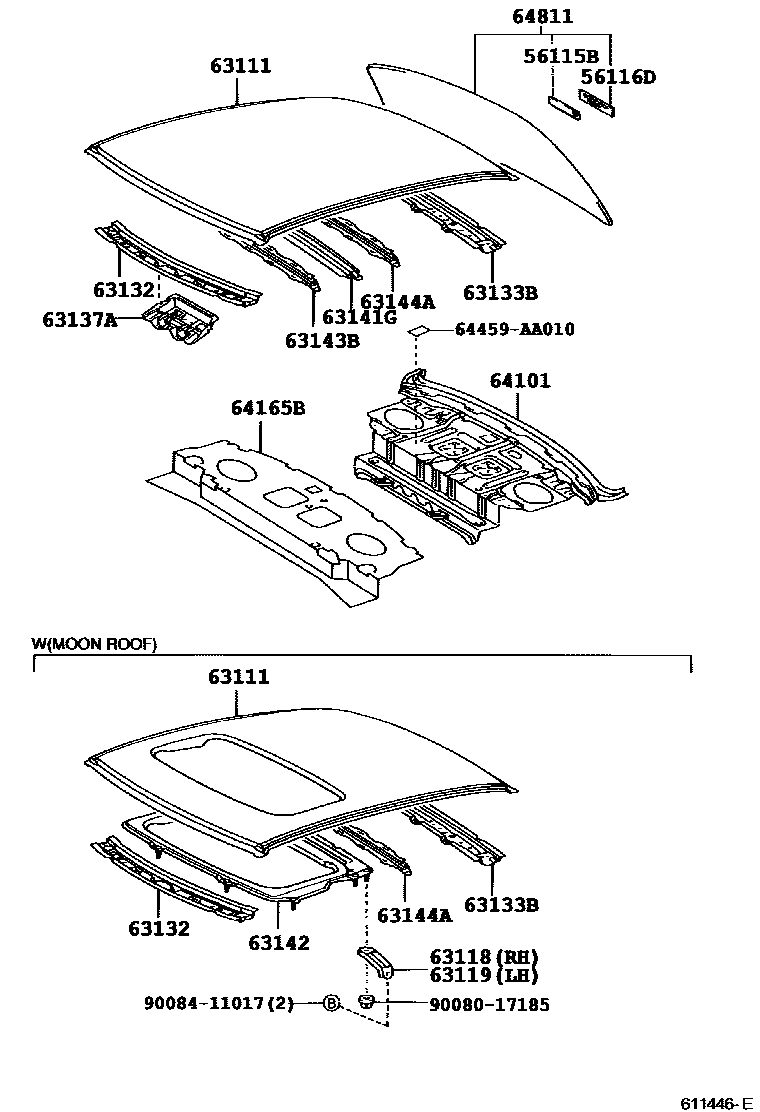

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010iACV30,MCV3#..NAP200107-200406

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV30,MCV3#..NAP200107-200406

63111PANEL, ROOF

main63111-AA060iACV30,MCV3#..NAP200107-200406

main63111-AA070iACV30,MCV3#..NAP200107-200406

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-AA010iACV30,MCV3#..NAP200107-200406

63119SUPPORT, ROOF PANEL, LH

main63118-AA010iACV30,MCV3#..NAP200107-200406

63132PANEL, WINDSHIELD HEADER, INNER

main63132-AA050iACV30,MCV3#..NAP200107-200406

63133BFRAME, BACK WINDOW

main63133-AA040iMCV30..NAP200107-200406

63137ABRACKET, DOME LAMP, NO.1

main63137-AA030iACV30,MCV3#..NAP200107-200406

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-AA030iACV30,MCV3#..NAP200107-200406

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-AA020iACV30,MCV3#..NAP200107-200406

sub63142-33040

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-AA030iACV30,MCV3#..NAP200107-200406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-AA040iACV30,MCV3#..NAP200107-200406

main63144-AA050iACV30,MCV3#..NAP200107-200406

W(MOON ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-AA080iMCV30..NAP200107-200406

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-AA020iACV30,MCV3#..NAP200107-200406

64811GLASS, BACK WINDOW

main64801-AA010iACV30,MCV3#..NAP..(LE,SE)200107-200406

*EHTT,T=3.5,GREEN

main64801-AA020iACV30,MCV3#..NAP200107-200406

*EHTT,T=3.5,GREEN,W(DIVERSITY ANTENNA)

64459AA010CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-AA010

9008017185

main90080-17185

9008411017

main90084-11017

18 parts on this diagram · 2 diagrams in section
