COWL PANEL & WINDSHIELD GLASS

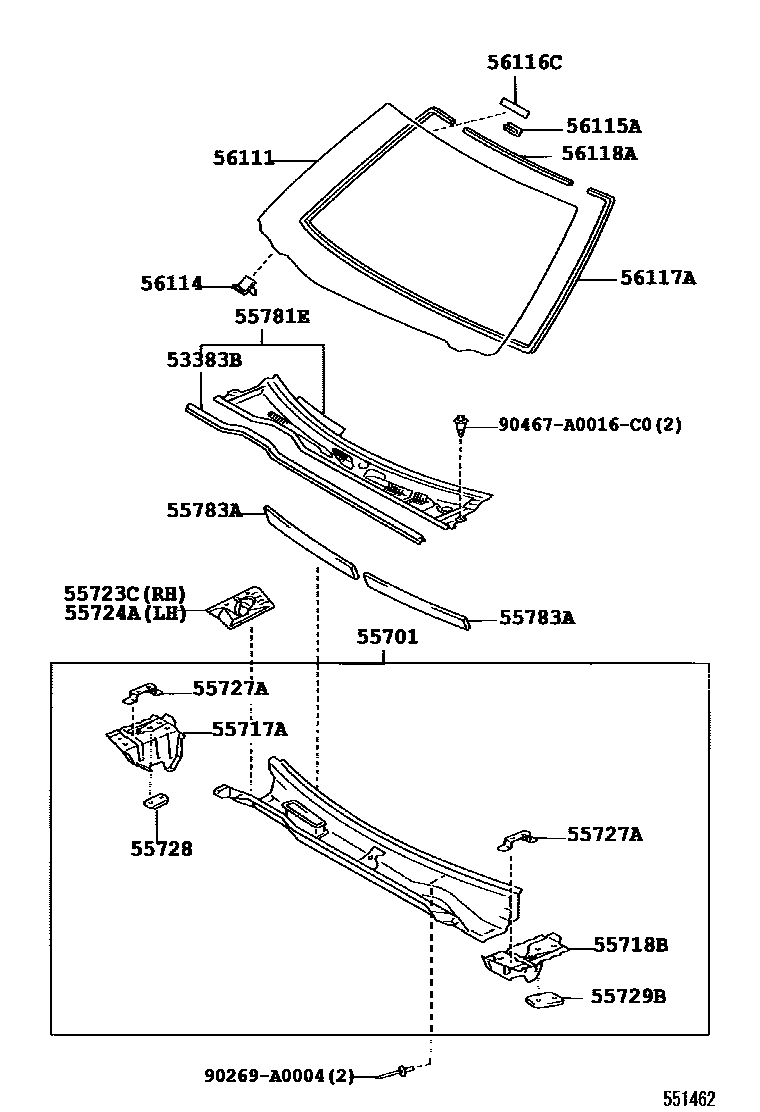

Parts diagram

53383BSEAL, HOOD TO COWL TOP

main53383-06030i200107-200406

55701PANEL SUB-ASSY, COWL

main55700-06130i200107-200406

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06030i200107-200406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06030i200107-200406

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06020i200107-200406

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06020i200107-200406

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-06010i200107-200406

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-06010i200107-200406

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-06010i200107-200406

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06030i200107-200408

main55708-06031i200408

55783APAD, COWL TOP SILENCER

main55783-06010i200107-200406

56111GLASS, WINDSHIELD

main56101-AA030i200107-200507

*TEM,T=4.7,GREEN

main56101-AA031i200508

*TEM,T=4.7,GREEN

main56101-AA040i200107-200508

*TEM,T=4.7,GREEN,W(MIRROR W/AUTO DIMMER)

56114RETAINER, WINDSHIELD GLASS

main56114-22050i200107-200406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010i200107-200406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i200107-200406

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91001i200406-200602

main90998-91001i200107-200204

*H,L=3454

main90998-91004i200204-200406

*H,L=3454

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main90998-91002i200107-200204

*H,L=685

main90998-91002i200406-200602

main90998-91003i200204-200406

*H,L=685

90269A0004

main90269-A0004

90467A0016C0

main90467-A0016C0

19 parts on this diagram · 1 diagram in section
