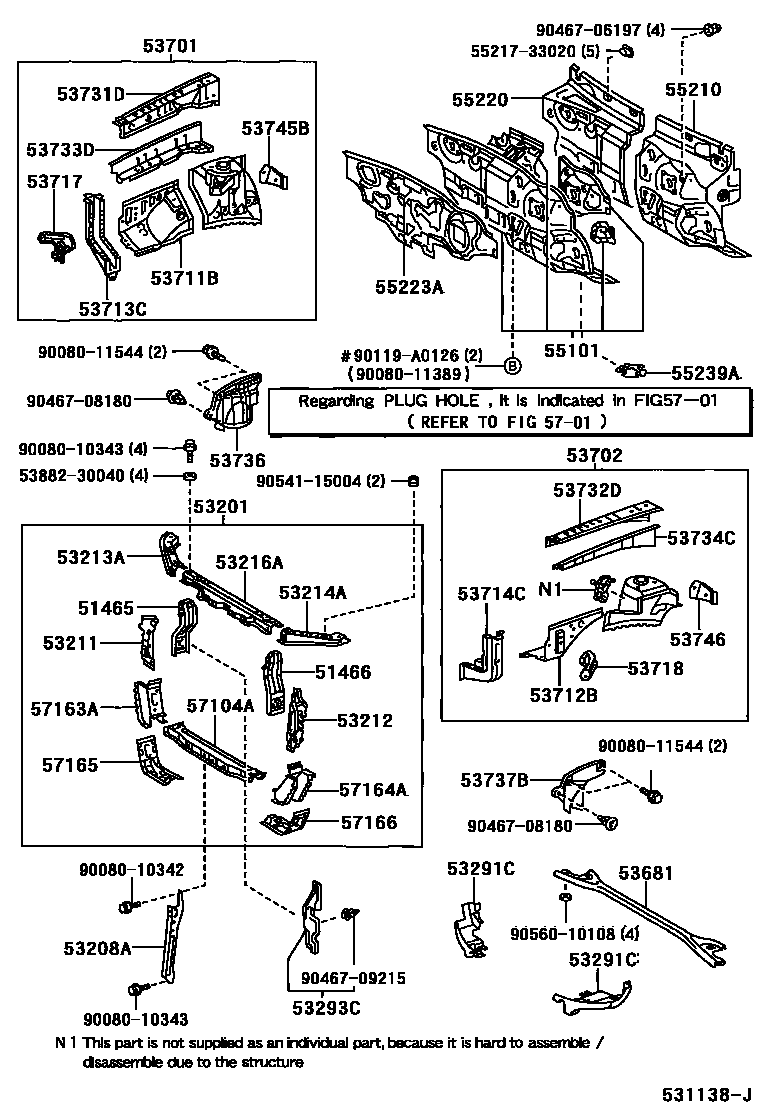

FRONT FENDER APRON & DASH PANEL
51465BRACE, RADIATOR SUPPORT, UPPER RH
51466BRACE, RADIATOR SUPPORT, UPPER LH
53201SUPPORT SUB-ASSY, RADIATOR
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
sub53212-06041
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53291CSEAL, RADIATOR SUPPORT TO FRAME
RH
LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53681BRACE, FRONT SUSPENSION, UPPER CENTER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
55101PANEL SUB-ASSY, DASH
W(POWER ADJUSTABLE PEDAL)
W(POWER ADJUSTABLE PEDAL)
55210INSULATOR ASSY, DASH PANEL
55220INSULATOR ASSY, DASH PANEL, NO.2
55223AINSULATOR, DASH PANEL, OUTER
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
5388230040PACKING, FRONT FENDER MAIN
main53882-30040
5521733020STRIP, DASH PANEL SILENCER FINISH
main55217-33020
9008010342
main90080-10342
9008010343
main90080-10343
9008011389
main90080-11389
9008011544
main90080-11544
90119A0126
main90119-A0126
9046706197
main90467-06197
9046708180
main90467-08180
9046709215
main90467-09215
9054115004
main90541-15004
9056010108
main90560-10108
51 parts on this diagram · 2 diagrams in section
