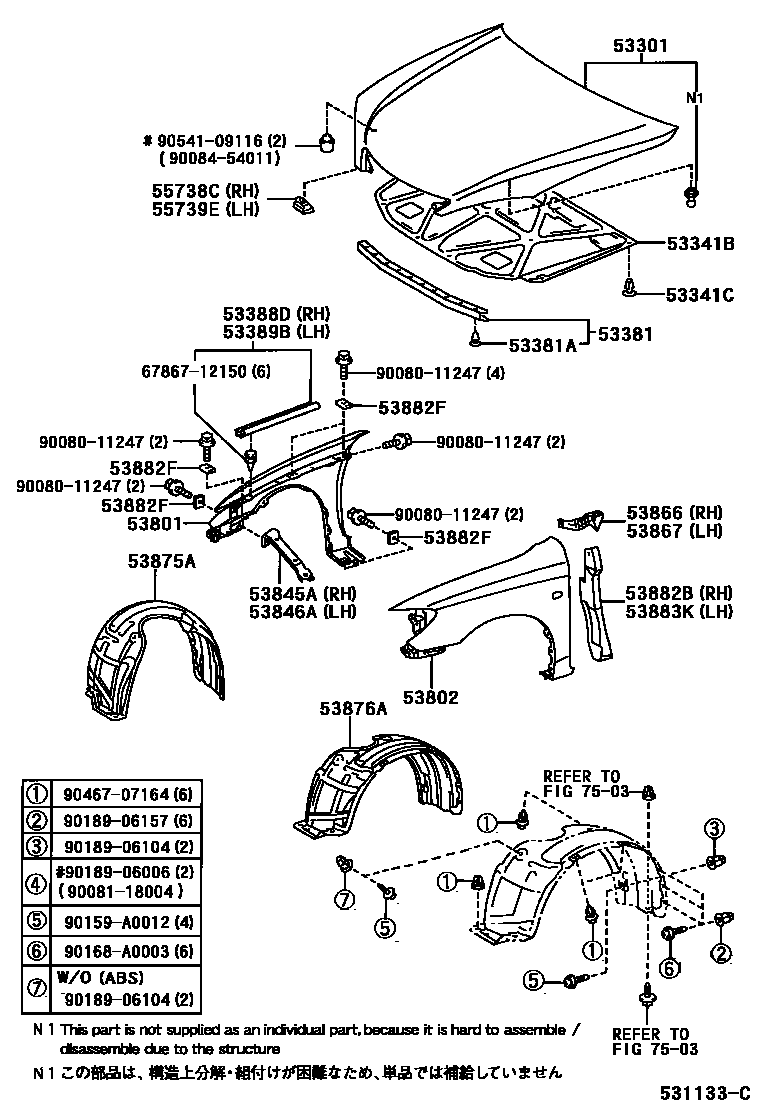

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-AA060iMCV30..NAP200107-200406

53341BINSULATOR, HOOD

main53341-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMCV30..NAP200107-200405

main90467-A0003iACV30,MCV3#..NAP200405-200406

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-AA020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

main53381-AA040iACV30,MCV3#..NAP200406

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

53801FENDER SUB-ASSY, FRONT RH

main53801-AA020iMCV30..NAP200107-200406

53802FENDER SUB-ASSY, FRONT LH

main53802-AA020iMCV30..NAP200107-200406

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-AA020iMCV30..NAP200107-200406

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-AA020iMCV30..NAP200107-200406

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

53875ALINER, FRONT FENDER, RH

main53875-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

sub53875-AA011

main53875-AA011iACV30,MCV3#..NAP200406

53876ALINER, FRONT FENDER, LH

main53876-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

sub53876-AA011

main53876-AA011iACV30,MCV3#..NAP200406

53882BSEAL, FRONT FENDER, RH

main53882-AA010iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

53882FSEAL, FRONT FENDER

main53882-16030iMCV30..NAP200107-200406

53883KSEAL, FRONT FENDER, LH

main53883-AA010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

55738CSTOPPER, HOOD, RH

main55738-33020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

(J)

main55738-AA010iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

(L)

55739ESTOPPER, HOOD, LH

main55739-33020iMCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC200107-200406

(J)

main55739-AA010iACV30,MCV3#..NAP200107-200406

(L)

7503

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9008011247

main90080-11247

9008118004

main90081-18004

9008454011

main90084-54011

90159A0012

main90159-A0012

90168A0003

main90168-A0003

9018906006

main90189-06006

9018906104

main90189-06104

9018906157

main90189-06157

9046707164

main90467-07164

9054109116

main90541-09116

32 parts on this diagram · 2 diagrams in section
