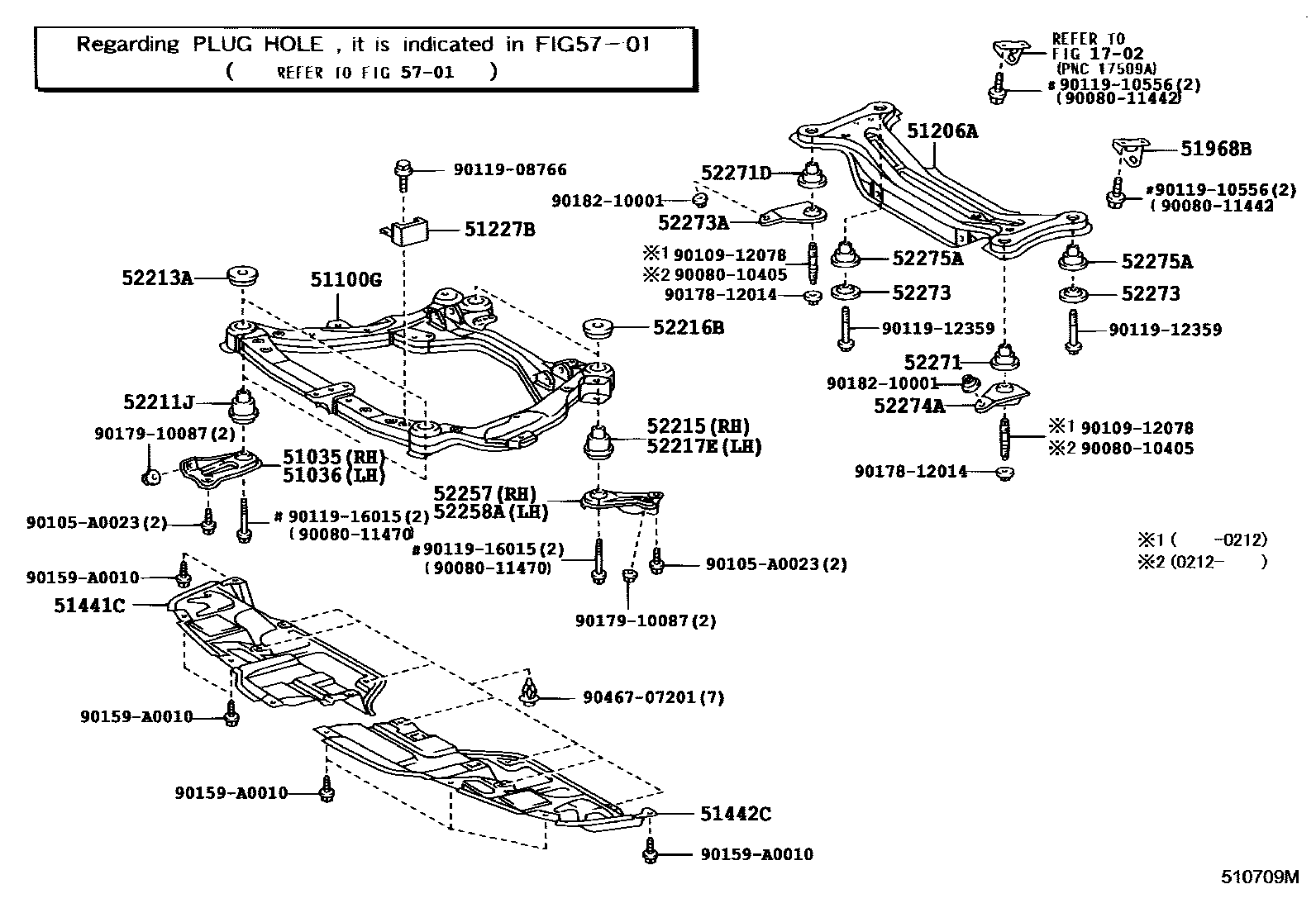

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

1702

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33010iACV30,MCV30..NAP200107-200208

sub51035-33011

main51035-33011iACV30,MCV3#..NAP200208-200406

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33010iACV30,MCV30..NAP200107-200208

sub51036-33011

main51036-33011iACV30,MCV3#..NAP200208-200406

51100GFRAME ASSY, FRONT

main51100-06050iACV30,MCV3#..NAP200107-200406

sub51100-07030

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06050iMCV30..NAP200107-200401

sub51206-06051

main51206-06100iACV30,MCV3#..NAP200602

sub51206-06103

main51206-0E011iACV30,MCV3#..NAP200401-200504

sub51206-06100

main51206-0E012iACV30,MCV3#..NAP200504-200602

sub51206-0E013

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06010iMCV30..NAP200107-200301

main51227-06030iACV30,MCV3#..NAP200301-200512

(L)

sub51227-06031

main51227-06031iACV30,MCV3#..NAP200601

(L)

main51227-33101iACV30,MCV3#..NAP200301-200601

(J)

51441CCOVER, ENGINE UNDER, RH

main51441-06030iACV30,MCV3#..NAP200107-200406

51442CCOVER, ENGINE UNDER, LH

main51442-06020iACV30,MCV3#..NAP200107-200406

51968BHOOK, TRANSPORT, REAR LH

main51968-06010iACV30,MCV3#..NAP200107-200406

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06030iACV30,MCV3#..NAP200107-200406

(L)

main52211-28010iACV30,MCV3#..NAP200107-200406

(J)

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06030iACV30,MCV3#..NAP200107-200406

(L)

main52213-28010iACV30,MCV3#..NAP200107-200406

(J)

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iACV30,MCV3#..NAP200107-200406

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030iACV30,MCV3#..NAP200107-200406

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iACV30,MCV3#..NAP200107-200406

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33040iACV30,MCV3#..NAP200107-200406

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33050iACV30,MCV3#..NAP200107-200406

52271CUSHION, REAR SUSPENSION MEMBER

main52272-06040iACV30,MCV3#..NAP200107-200406

sub52272-06041

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06050iACV30,MCV3#..NAP200107-200406

sub52271-06051

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010iACV30,MCV3#..NAP200107-200406

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33020iACV30,MCV3#..NAP200107-200406

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33020iACV30,MCV3#..NAP200107-200406

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050iACV30,MCV3#..NAP200107-200406

sub52275-06051

5701

9008010405

main90080-10405

9008011442

main90080-11442

9008011470

main90080-11470

90105A0023

main90105-A0023

9010912078

main90109-12078

9011908766

main90119-08766

9011910556

main90119-10556

9011912359

main90119-12359

9011916015

main90119-16015

90159A0010

main90159-A0010

9017812014

main90178-12014

9017910087

main90179-10087

9018210001

main90182-10001

9046707201

main90467-07201

37 parts on this diagram · 2 diagrams in section
