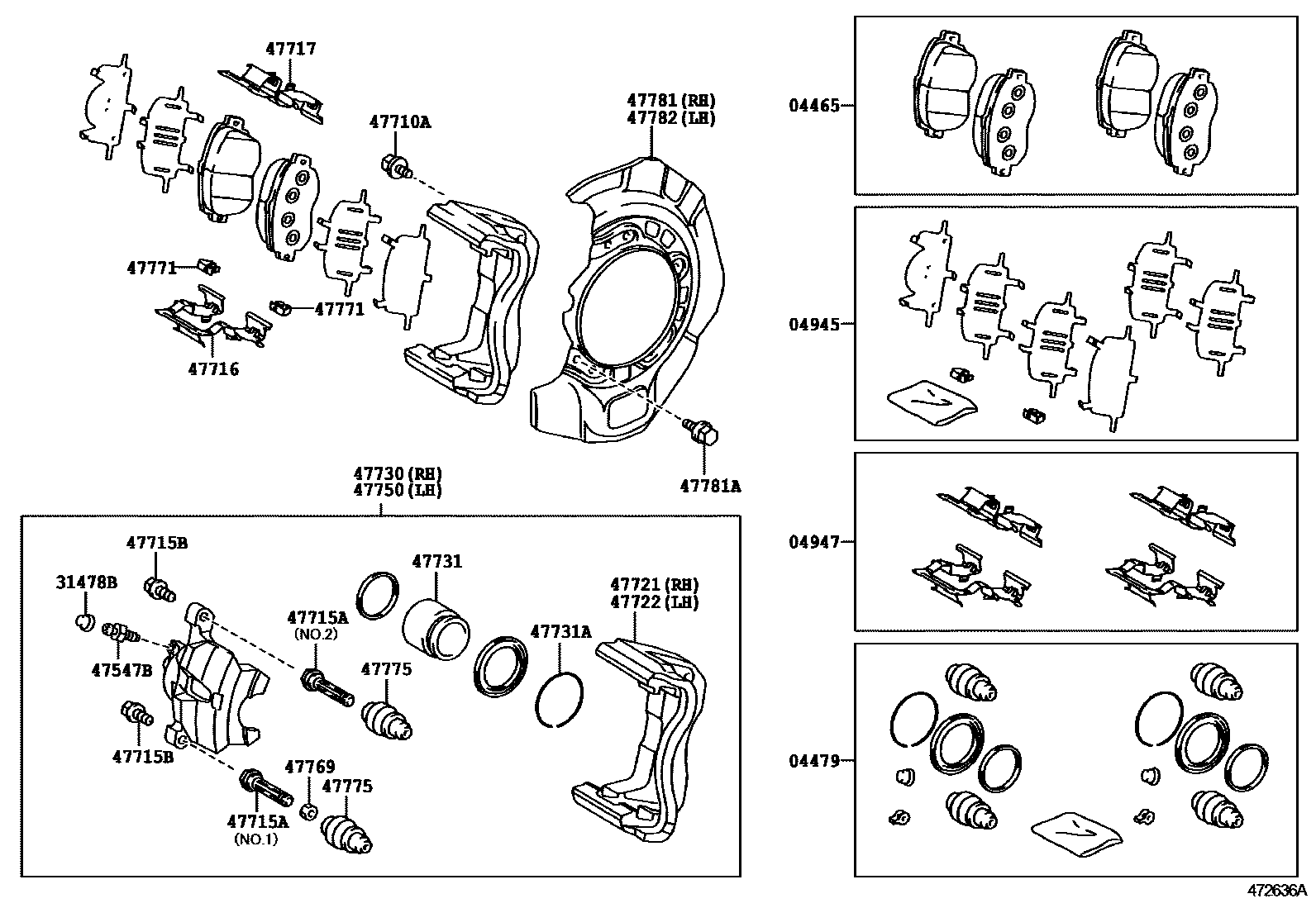

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-08030iMCV3#..NAP..(SE,XLE)200406-200602

MARK SELP PS558H

main04465-33240iACV30..NAP;MCV30..NAP..LE200107-200602

MARK AK PA533

main04465-33250iMCV3#..NAP..(SE,XLE)200107-200406

MARK AK PA566H

sub04465-33340

main04465-33340iMCV3#..NAP..(SE,XLE)200107-200406

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-08081iACV30,MCV3#..NAP200302-200602

main04479-06060iACV30,MCV30..NAP200107-200302

sub04478-08081

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06070iACV30..NAP;MCV30..NAP..LE200107-200406

main04945-33090iACV30..NAP;MCV30..NAP..LE200109-200602

main04945-58010iMCV3#..NAP..(SE,XLE)200406-200602

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06060iACV30,MCV3#..NAP200107-200602

main04947-08040iMCV3#..NAP..(SE,XLE)200406-200602

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iACV30,MCV3#..NAP200107-200406

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACV30,MCV3#..NAP200107-200602

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067iMCV30..NAP..(SE,XLE)200107-200406

*12-1.25PX29.5-23,(L)

main90105-12208iMCV30..NAP200107-200309

*12-1.25PX29.5-23,(J)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-06020iACV30,MCV3#..NAP200107-200406

NO.1

main47715-06040iACV30,MCV3#..NAP200107-200406

NO.2

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90080-10050iACV30,MCV3#..NAP200107-200602

sub90016-AA103

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-06080iACV30,MCV3#..NAP200107-200406

sub04947-06060

main47716-08030iMCV3#..NAP..(SE,XLE)200406

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-06090iACV30,MCV3#..NAP200107-200406

sub04947-06060

main47717-08030iMCV3#..NAP..(SE,XLE)200406

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06070iACV30..NAP;MCV30..NAP..LE200107-200406

main47721-06080iMCV3#..NAP..(SE,XLE)200107-200406

main47721-08020iMCV3#..NAP..(SE,XLE)200406

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-06070iACV30..NAP;MCV30..NAP..LE200107-200406

main47721-06080iMCV3#..NAP..(SE,XLE)200107-200406

main47721-08020iMCV3#..NAP..(SE,XLE)200406

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06070iACV30..NAP;MCV30..NAP..LE200107-200406

main47730-06080iMCV3#..NAP..(SE,XLE)200107-200406

main47730-08030iMCV3#..NAP..(SE,XLE)200406

47731PISTON, FRONT DISC BRAKE

main47731-08020iACV30,MCV3#..NAP200107-200406

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52108iACV30,MCV3#..NAP200107-200406

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06070iACV30..NAP;MCV30..NAP..LE200107-200406

main47750-06080iMCV3#..NAP..(SE,XLE)200107-200406

main47750-08030iMCV3#..NAP..(SE,XLE)200406

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iACV30,MCV3#..NAP200107-200406

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iACV30,MCV3#..NAP200107-200406

main47771-33020iMCV3#..NAP..(SE,XLE)200406

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-06030iACV30,MCV3#..NAP200107-200406

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06040iACV30..NAP;MCV30..NAP..LE..5FC200107-200309

main47781-06070iACV30..NAP;MCV30..NAP..LE200309-200406

main47781-08020iMCV3#..NAP..(SE,XLE)200309-200406

main47781-48020iMCV30..NAP..(SE,XLE)200107-200309

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429iMCV30..NAP..SE..5FC200107-200406

(L)

main90080-11429iACV30,MCV3#..NAP200406

main90119-06227iMCV30..NAP200107-200309

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06040iMCV30..NAP..LE200107-200309

main47782-06070iACV30..NAP;MCV30..NAP..LE200309-200406

main47782-08020iMCV3#..NAP..(SE,XLE)200309-200406

main47782-48020iMCV30..NAP..(SE,XLE)200107-200309

23 parts on this diagram · 2 diagrams in section
