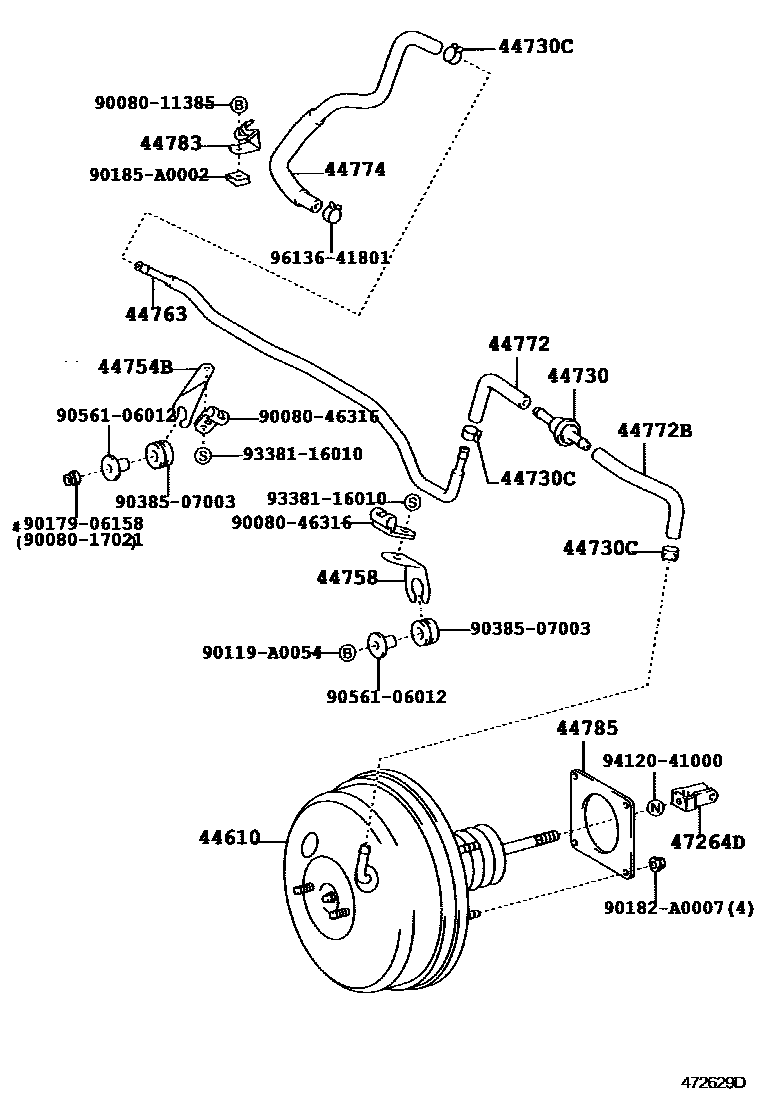

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-06210iMCV30..NAP..(SE,XLE)200107-200301

main44610-06210iMCV30..NAP..SE200301-200406

BRAKE PEDAL = TYPE B

main44610-06260iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200209-200510

BRAKE PEDAL = TYPE A OR TYPE C

main44610-06290iMCV3#..NAP..(SE,XLE)200406

BRAKE PEDAL = TYPE B OR TYPE C & W(VSC)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

44730CCLIP(FOR VACUUM HOSE)

main90466-A0003iMCV30..NAP..SE200307-200406

main90467-16002iMCV30..NAP200107-200212

sub96134-51500

44754BBRACKET, VACUUM TUBE

main44758-06040iACV30..NAP200107-200406

44758BRACKET, VACUUM CHECK VALVE

main44758-06030iACV30..NAP..4FC200107-200406

main44758-33070iMCV30..NAP..4FC;MCV30..NAP..SE..5FC200107-200406

44763TUBE, BOOSTER VACUUM

main44763-06020iACV30..NAP..4FC200107-200406

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06030iACV30..NAP..4FC200107-200406

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06040iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06020iACV30..NAP..4FC200107-200406

44783CLAMP, VACUUM HOSE

main44783-06020iACV30..NAP200406

main44783-28010iACV30..NAP..4FC200107-200406

44785GASKET, BRAKE BOOSTER

main44785-02010iMCV30..NAP200107-200406

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMCV30..NAP200107-200406

9008011385

main90080-11385

9008017021

main90080-17021

9008046316

main90080-46316

90119A0054

main90119-A0054

9017906158

main90179-06158

90182A0007

main90182-A0007

90185A0002

main90185-A0002

9038507003

main90385-07003

9056106012

main90561-06012

9338116010

main93381-16010

9412041000

main94120-41000

9613641801

main96136-41801

24 parts on this diagram · 2 diagrams in section
