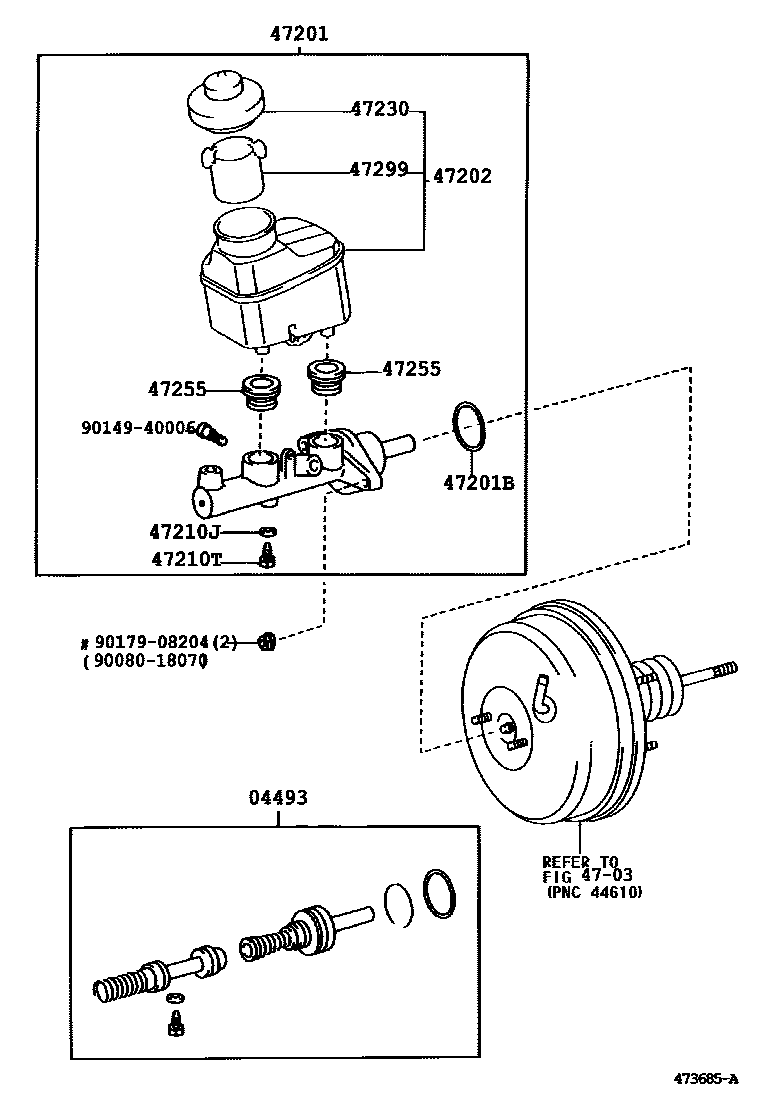

BRAKE MASTER CYLINDER

0001 1 0002 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-06050iACV30,MCV3#..NAP200107-200406

main04493-06060iACV30..NAP;MCV30..NAP..LE200107-200406

W(VSC)

main04493-33140iMCV3#..NAP..(SE,XLE)200406

W(VSC)

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06140iACV30,MCV3#..NAP200107-200406

main47201-06150iMCV30..NAP200107-200309

W(VSC)

main47201-06151iMCV3#..NAP200309-200406

W(VSC)

main47201-33230iMCV3#..NAP..(SE,XLE)200406

W(VSC)

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMCV30..NAP200107-200406

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06030iACV30,MCV30..NAP200107-200301

W(ABS)

sub47220-06031

main47220-06031iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)200301-200406

main47220-06040iMCV30..NAP200107-200301

W(VSC)

main47220-33131iMCV3#..NAP..(SE,XLE)200406

W(POWER ADJUSTABLE PEDAL)

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV30..NAP..SE..5FC200107-200406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iACV30,MCV3#..NAP200309-200406

sub47230-01031

main47230-12040iMCV3#..NAP..(SE,XLE)200406

W(POWER ADJUSTABLE PEDAL)

main47230-12040iACV30,MCV30..NAP200107-200309

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iMCV30..NAP200107-200406

main47255-16010iMCV3#..NAP..(SE,XLE)200406

W(POWER ADJUSTABLE PEDAL)

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iACV30..NAP..(LE,SE)200107-200406

9008018070

main90080-18070

9014940006

main90149-40006

9017908204

main90179-08204

13 parts on this diagram · 2 diagrams in section
