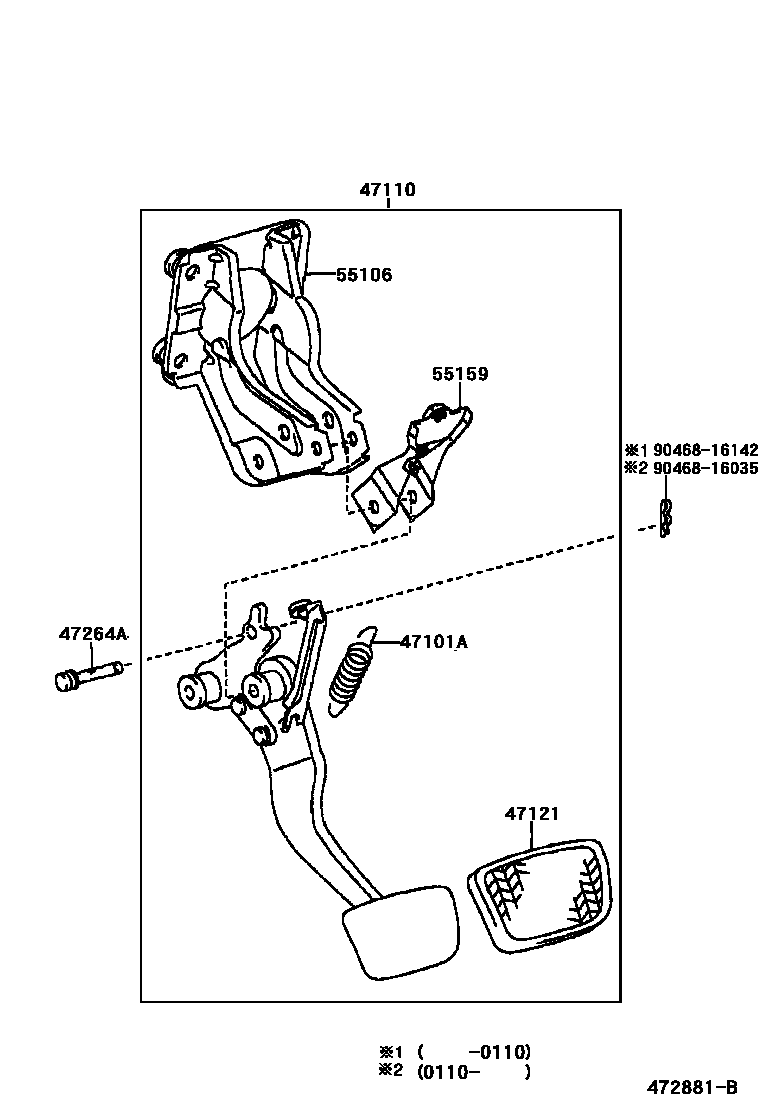

BRAKE PEDAL & BRACKET

0001 1 0002 1TYPE A 0003 1TYPE B 0005 1POWER ADJUSTABLE PEDAL;TYPE C

47101PEDAL SUB-ASSY, BRAKE

main47101-33070iMCV30..NAP..(SE,XLE)200107-200406

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-33010iMCV30..NAP..LE..5FC200107-200406

main90507-14051iMCV30..NAP..SE..5FC;MCV30..NAP..(SE,XLE)..4FC200107-200406

main90507-14051iACV30..NAP..LE200202-200209

MEXICO SPEC

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06050iACV30..NAP;MCV30..NAP..LE200107-200209

main47110-06051iACV30..NAP..4FC;MCV30..NAP..LE..4FC200209-200406

47121PAD, BRAKE PEDAL

main47121-50020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

47264APIN(FOR PUSH ROD)

main47148-33010iACV30,MCV30..NAP200107-200110

sub47148-33011

main47148-33011iACV30,MCV3#..NAP200110-200406

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-06030iACV30..NAP;MCV30..NAP..LE200107-200209

main55106-06031iACV30..NAP;MCV30..NAP..LE..5FC200209-200602

main55106-33080iMCV30..NAP..SE..5FC200107-200602

main55106-33080iACV30..NAP..LE200202-200209

MEXICO SPEC

55159STAY, PEDAL BRACKET

main55159-06010iACV30..NAP;MCV30..NAP..LE200107-200209

9046816035

main90468-16035

9046816142

main90468-16142

9 parts on this diagram · 4 diagrams in section
