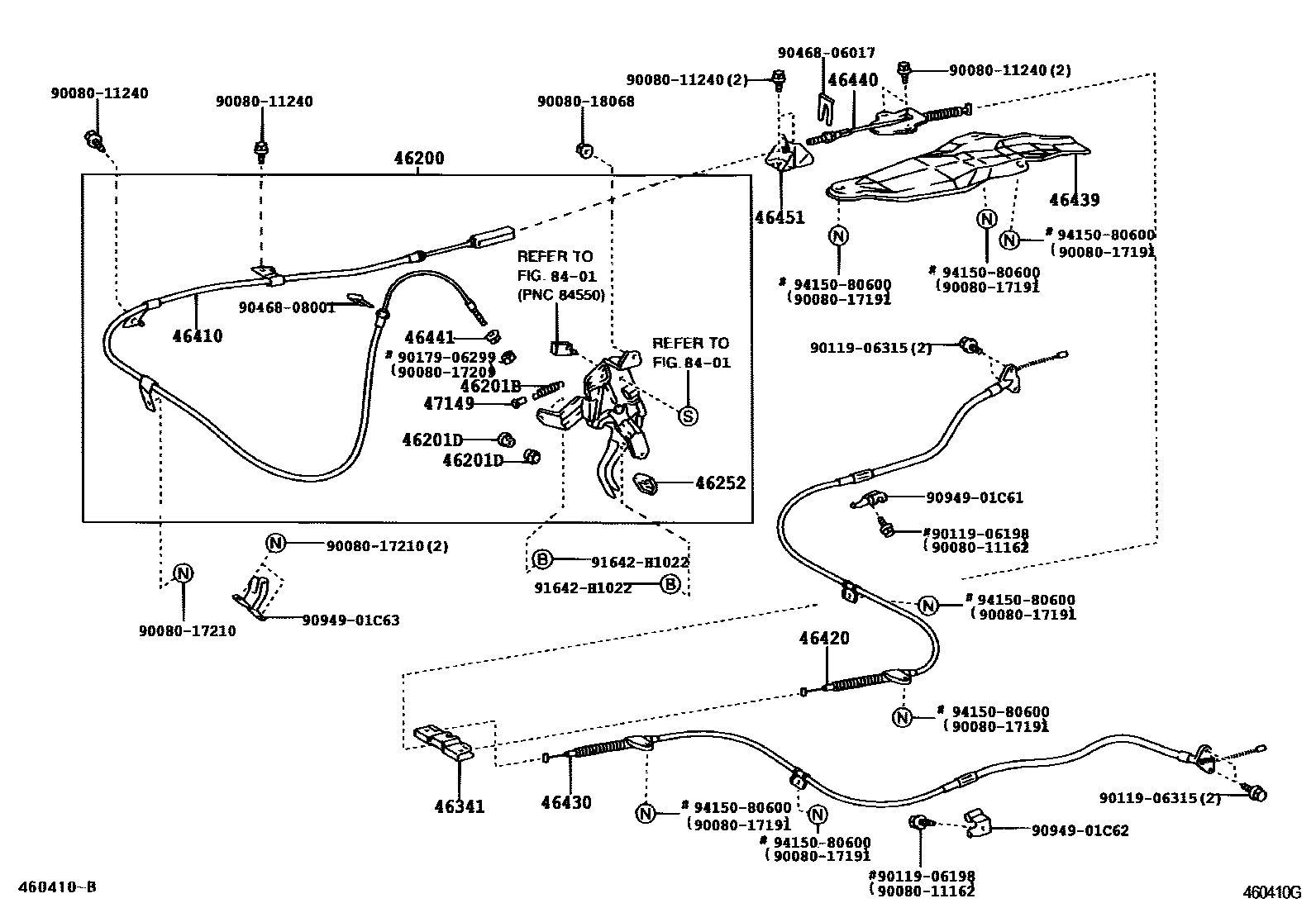

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-33050iACV30,MCV30..NAP..XLE200107-200406

46201BSPRING, TENSION

main90506-19005iACV30,MCV30..NAP..XLE200107-200406

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iACV30,MCV30..NAP..XLE200107-200406

46252PAD, PARKING PEDAL

main46252-63010iACV30,MCV30..NAP..XLE200107-200406

46341EQUALIZER, PARKING BRAKE

main46341-20070iACV30,MCV3#..NAP200107-200406

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06030iACV30,MCV3#..NAP..(LE,SE)200107-200406

main46410-33120iACV30,MCV30..NAP..XLE200107-200406

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06050iACV30..NAP..LE200107-200406

main46420-33090iACV30..NAP..LE200309-200406

CANADA SPEC

main46420-33100iMCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200406

W(VSC)

main46420-33100iMCV30..NAP200107-200406

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06050iACV30..NAP..LE200107-200406

main46430-33090iACV30..NAP..LE200309-200406

CANADA SPEC

main46430-33100iMCV30..NAP;ACV30,MCV31..NAP..(SE,XLE)200406

W(VSC)

main46430-33100iMCV30..NAP200107-200406

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-06020iACV30,MCV3#..NAP200107-200406

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-06010iACV30,MCV30..NAP..XLE200107-200406

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACV30,MCV30..NAP..XLE200107-200406

46451BRACKET, CABLE SUPPORT

main46451-07010iACV30,MCV30..NAP..XLE200107-200406

47149DAMPER, RETURN SPRING

main47149-22010iACV30,MCV30..NAP..XLE200107-200406

8401

9008011162

main90080-11162

9008011240

main90080-11240

9008017191

main90080-17191

9008017209

main90080-17209

9008017210

main90080-17210

9008018068

main90080-18068

9011906198

main90119-06198

9011906315

main90119-06315

9017906299

main90179-06299

9046806017

main90468-06017

9046808001

main90468-08001

9094901C61

main90949-01C61

9094901C62

main90949-01C62

9094901C63

main90949-01C63

91642H1022

main91642-H1022

9415080600

main94150-80600

30 parts on this diagram · 3 diagrams in section
