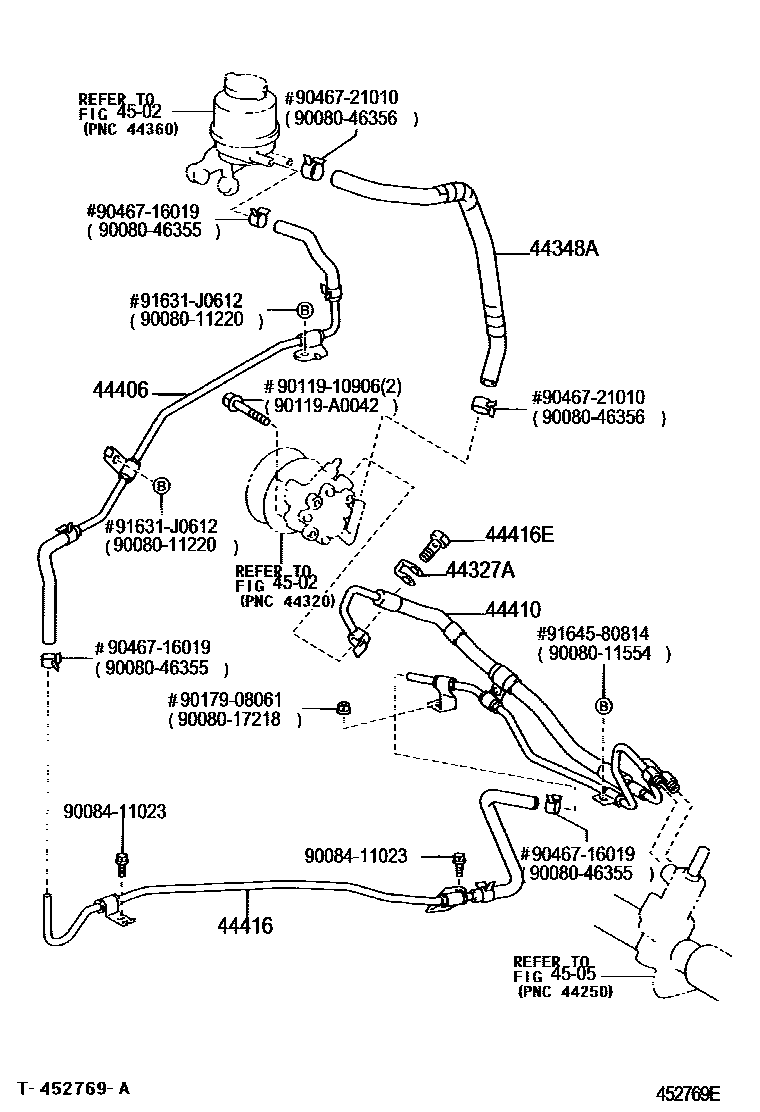

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV30,MCV3#..NAP200107-200406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06170iACV30..NAP200107-200406

main44348-06180iMCV3#..NAP200107-200406

44406TUBE SUB-ASSY, RETURN

main44406-06100iACV30,MCV3#..NAP200107-200406

44410TUBE ASSY, PRESSURE FEED

main44410-06140iACV30..NAP200107-200602

sub44410-06141

main44410-06150iMCV3#..NAP200107-200602

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06100iACV30,MCV3#..NAP200107-200406

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV30..NAP200107-200406

4502

4505

9008011220

main90080-11220

9008011554

main90080-11554

9008017218

main90080-17218

9008046355

main90080-46355

9008046356

main90080-46356

9008411023

main90084-11023

9011910906

main90119-10906

90119A0042

main90119-A0042

9017908061

main90179-08061

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

9164580814

main91645-80814

21 parts on this diagram · 2 diagrams in section
