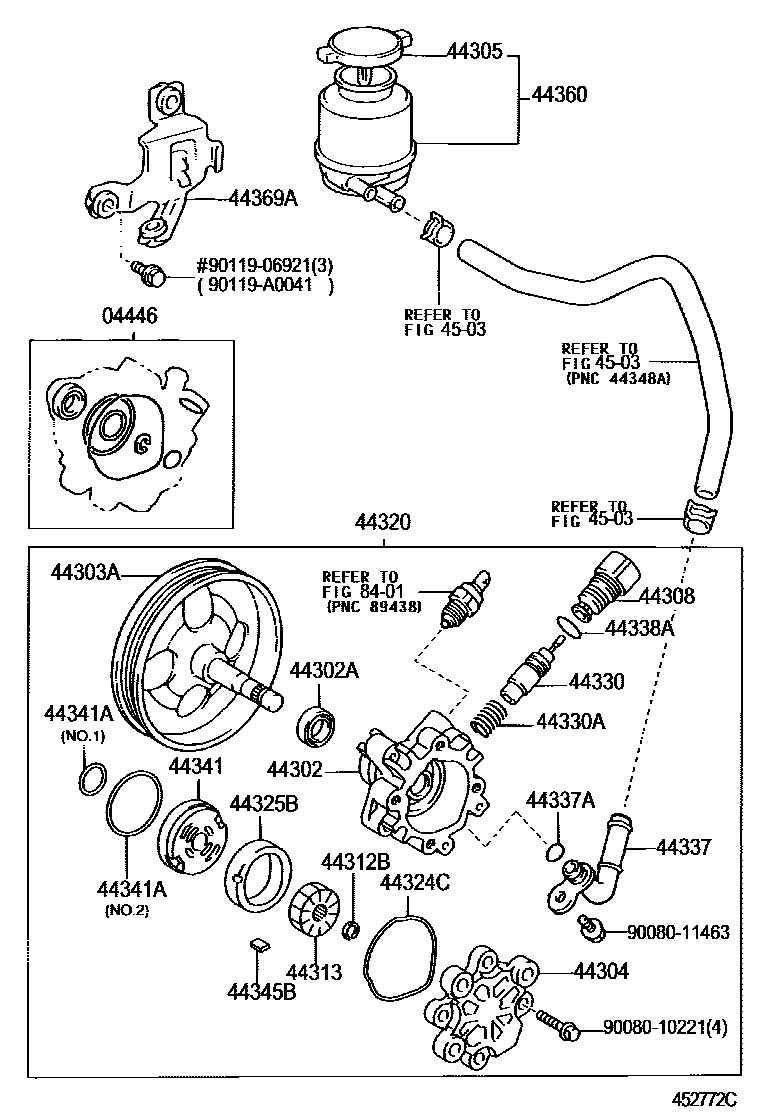

VANE PUMP & RESERVOIR (POWER STEERING)
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44303ASHAFT SUB-ASSY, W/PULLEY
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-06050
44308UNION SUB-ASSY, PRESSURE PORT
MEXICO SPEC
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
MARK 0
MARK 1
MARK 2
MARK 3
MARK 4
44324CRING, O(FOR PUMP HOUSING REAR)
44325BRING, VANE PUMP CAM
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A,TYPE B:REFER TO ILLUSTRATION
MARK B,TYPE B:REFER TO ILLUSTRATION
MARK C,TYPE B:REFER TO ILLUSTRATION
MARK D,TYPE B:REFER TO ILLUSTRATION
MARK E,TYPE B:REFER TO ILLUSTRATION
MARK F,TYPE B:REFER TO ILLUSTRATION
MARK A,TYPE A:REFER TO ILLUSTRATION
MARK B,TYPE A:REFER TO ILLUSTRATION
MARK C,TYPE A:REFER TO ILLUSTRATION
MARK D,TYPE A:REFER TO ILLUSTRATION
MARK E,TYPE A:REFER TO ILLUSTRATION
MARK F,TYPE A:REFER TO ILLUSTRATION
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338ARING, O(FOR PRESSURE PORT UNION)
OD=22,ID=18.6
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
NO.1
NO.2
44345BPLATE, VANE PUMP
L=15.000
L=14.008
L=14.006
L=14.004
L=14.002
L=12.000
L=11.998
L=11.996
L=11.994
L=11.992
44360RESERVOIR ASSY, VANE PUMP OIL
44369ABRACKET, OIL RESERVOIR, NO.1
4503
8401
9008010221
main90080-10221
9008011463
main90080-11463
9011906921
main90119-06921
90119A0041
main90119-A0041
28 parts on this diagram · 4 diagrams in section
