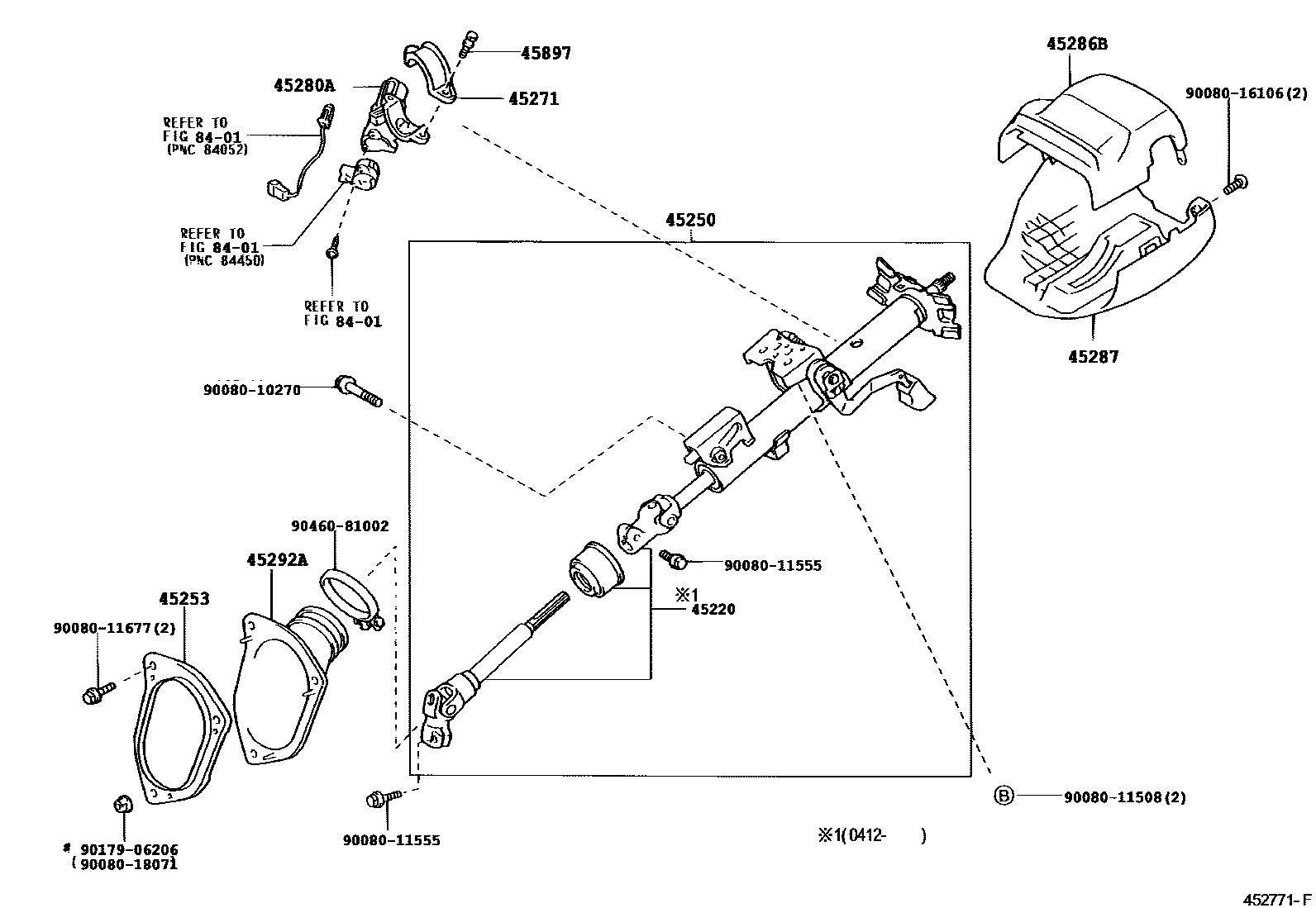

STEERING COLUMN & SHAFT

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33260iACV30,MCV3#..NAP200507-200602

sub45220-33270

main45220-33270iACV30,MCV3#..NAP200406-200506

45250COLUMN ASSY, STEERING

main45250-06340iACV30,MCV30..NAP200107-200209

sub45250-06410

main45250-06410iACV30,MCV30..NAP200209-200309

main45250-06420iACV30,MCV3#..NAP200309-200406

sub45250-06421

main45250-06421iACV30,MCV3#..NAP200406

45253COVER, STEERING COLUMN HOLE

main45253-06020iACV30,MCV30..NAP200107-200406

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iACV30,MCV30..NAP200107-200309

main45271-33040iACV30,MCV3#..NAP200309-200406

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06020iACV30,MCV30..NAP200107-200309

sub45280-06060

main45280-06060iACV30,MCV3#..NAP200309-200406

45286BCOVER, STEERING COLUMN, UPR

main45286-06060-B0iMCV30..NAP..(LE,XLE)200107-200309

DK.CHARCOAL,TRIM1#

main45286-06060-B1iACV30..NAP..SE;MCV30..NAP..SE..5FC200107-200309

DK.GRAY,TRIM1#,4#

main45286-06060-E0iMCV30..NAP..(LE,XLE)200107-200309

SANDAL WOOD,TRIM4#

main45286-06120-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

DK.CHARCOAL,TRIM1#

sub45286-06121

main45286-06120-B1iACV30,MCV31..NAP..SE200309-200406

DK.GRAY,TRIM1#,4#

sub45286-06121

main45286-06120-E0iACV30,MCV30..NAP..(LE,XLE)200309-200406

SANDAL WOOD,TRIM4#

sub45286-06121

main45286-06121-B0iACV30,MCV30..NAP..(LE,XLE)200406

DK.CHARCOAL,TRIM9#

main45286-06121-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM4#,9#

main45286-06121-E0iACV30,MCV30..NAP..(LE,XLE)200406

SANDAL WOOD,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06060-B0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200309

DK.CHARCOAL,TRIM1#

main45287-06060-B1iMCV30..NAP..SE200107-200309

DK.GRAY,TRIM1#,4#

main45287-06060-E0iACV30..NAP..(LE,XLE);MCV30..NAP..(LE,XLE)..5FC200107-200309

SANDAL WOOD,TRIM4#

main45287-06120-B0iACV30,MCV30..NAP..(LE,XLE)200309-200406

DK.CHARCOAL,TRIM1#

sub45287-06121

main45287-06120-B1iACV30,MCV31..NAP..SE200309-200406

DK.GRAY,TRIM1#,4#

sub45287-06121

main45287-06120-E0iACV30,MCV30..NAP..(LE,XLE)200309-200406

SANDAL WOOD,TRIM4#

sub45287-06121

main45287-06121-B0iACV30,MCV30..NAP..(LE,XLE)200406

DK.CHARCOAL,TRIM9#

main45287-06121-B1iACV30,MCV31..NAP..SE200406

DK.GRAY,TRIM4#,9#

main45287-06121-E0iACV30,MCV30..NAP..(LE,XLE)200406

SANDAL WOOD,TRIM4#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-06020iACV30,MCV30..NAP200107-200309

sub45292-06050

main45292-06050iACV30,MCV3#..NAP200309-200406

45897BOLT, STEERING LOCK SET

main45897-12020iACV30,MCV30..NAP200107-200406

8401

9008010270

main90080-10270

9008011508

main90080-11508

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

9017906206

main90179-06206

9046081002

main90460-81002

18 parts on this diagram · 1 diagram in section
