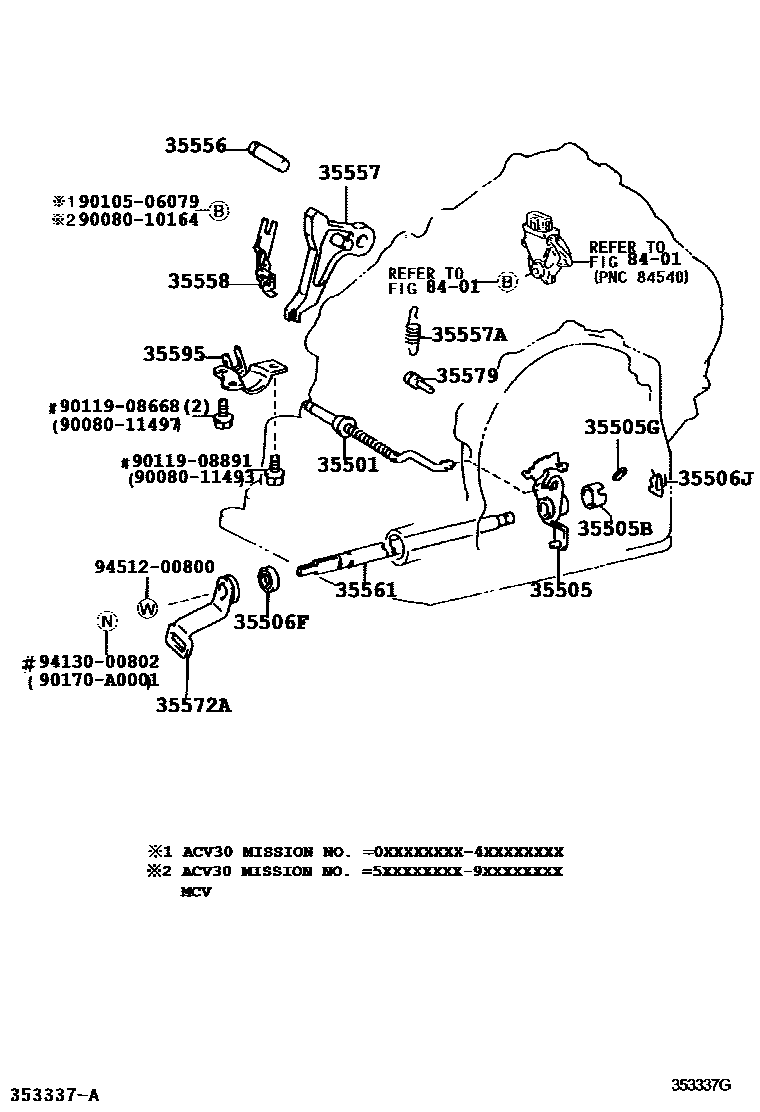

THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
(L)
(J)
35505LEVER SUB-ASSY, MANUAL VALVE
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
AISIN:REFER 35-01
MISSION NO.=5XXXXXXXX-9XXXXXXXX
MISSION NO.=0XXXXXXXX-4XXXXXXXX
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
(L)
MISSION NO.=5XXXXXXXX-9XXXXXXXX
(J)
35558CLAMP, PAWL SHAFT
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35561SHAFT, MANUAL VALVE LEVER
35572ALEVER, TRANSMISSION CONTROL SHAFT
(L)
TOYOTA:REFER 35-01,(L)
MISSION NO.=5XXXXXXXX-9XXXXXXXX
TOYOTA:REFER 35-01,(J)
(J)
35595BRACKET, PARKING LOCK PAWL
8401
9008010164
main90080-10164
9008011493
main90080-11493
9008011497
main90080-11497
9010506079
main90105-06079
9011908668
main90119-08668
9011908891
main90119-08891
90170A0001
main90170-A0001
9413000802
main94130-00802
9451200800
main94512-00800
24 parts on this diagram · 2 diagrams in section
