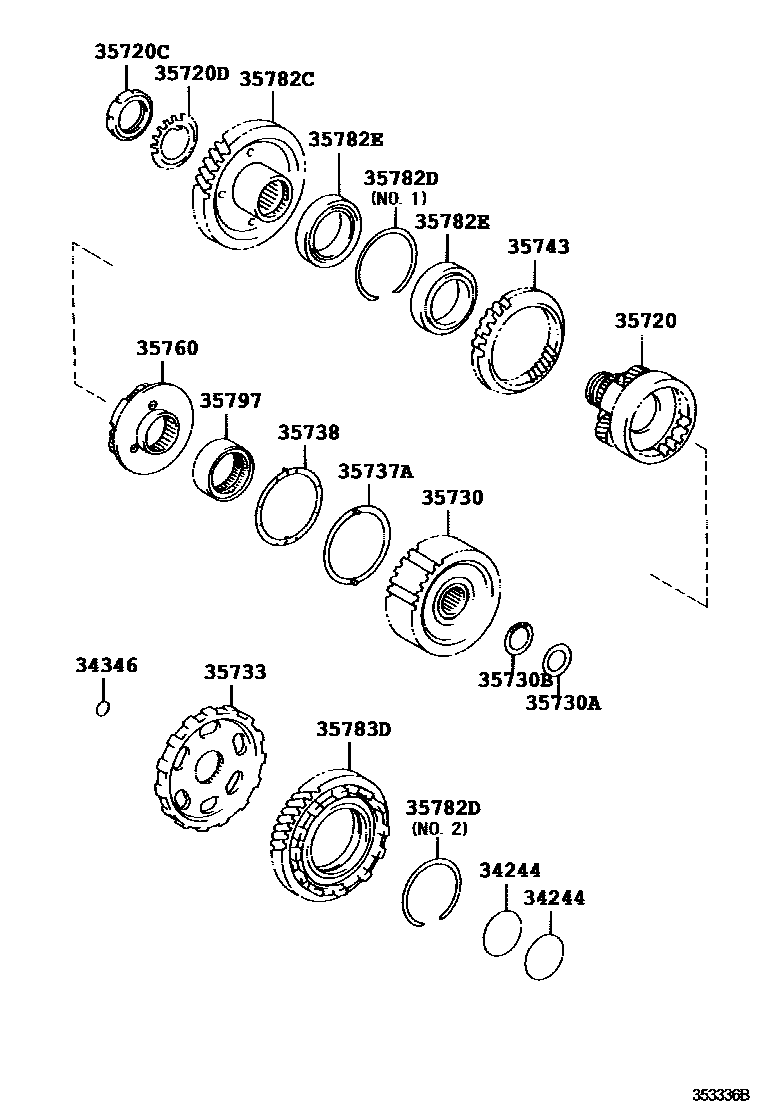

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
TOYOTA:REFER 35-01
35720CNUT (FOR FRONT PLANETARY GEAR)
(J)
(L)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
(L)
(J)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
TOYOTA:REFER 35-01,NO.2 BLACK PAINTED
NO.2 BLACK PAINTED
TOYOTA:REFER 35-01,NO.2 BROWN PAINTED
NO.2 BROWN PAINTED
NO.1
TOYOTA:REFER 35-01,NO.1
NO.1
AISIN:REFER 35-01,NO.1
(J)
AISIN:REFER 35-01,NO.2 BROWN PAINTED
NO.2 BROWN PAINTED
NO.2 BLACK PAINTED
AISIN:REFER 35-01,NO.2 BLACK PAINTED
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
MISSION NO.=5XXXXXXXX-9XXXXXXXX
(L)
TOYOTA:REFER 35-01,(L)
(J)
TOYOTA:REFER 35-01,(J)
35738WASHER, PLANETARY CARRIER THRUST, NO.2
(L)
MISSION NO.=5XXXXXXXX-9XXXXXXXX
(J)
(L)
(J)
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
TOYOTA:REFER 35-01,(L),NO.1
(L),NO.1
(L),NO.2
TOYOTA:REFER 35-01,(L),NO.2
TOYOTA:REFER 35-01,(J),NO.1
(J),NO.1
NO.1
AISIN:REFER 35-01,NO.1
NO.2
(J),NO.2
AISIN:REFER 35-01,(J),NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
(L)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
(J)
(J)
35797RACE, 1 WAY CLUTCH INNER
18 parts on this diagram · 2 diagrams in section
