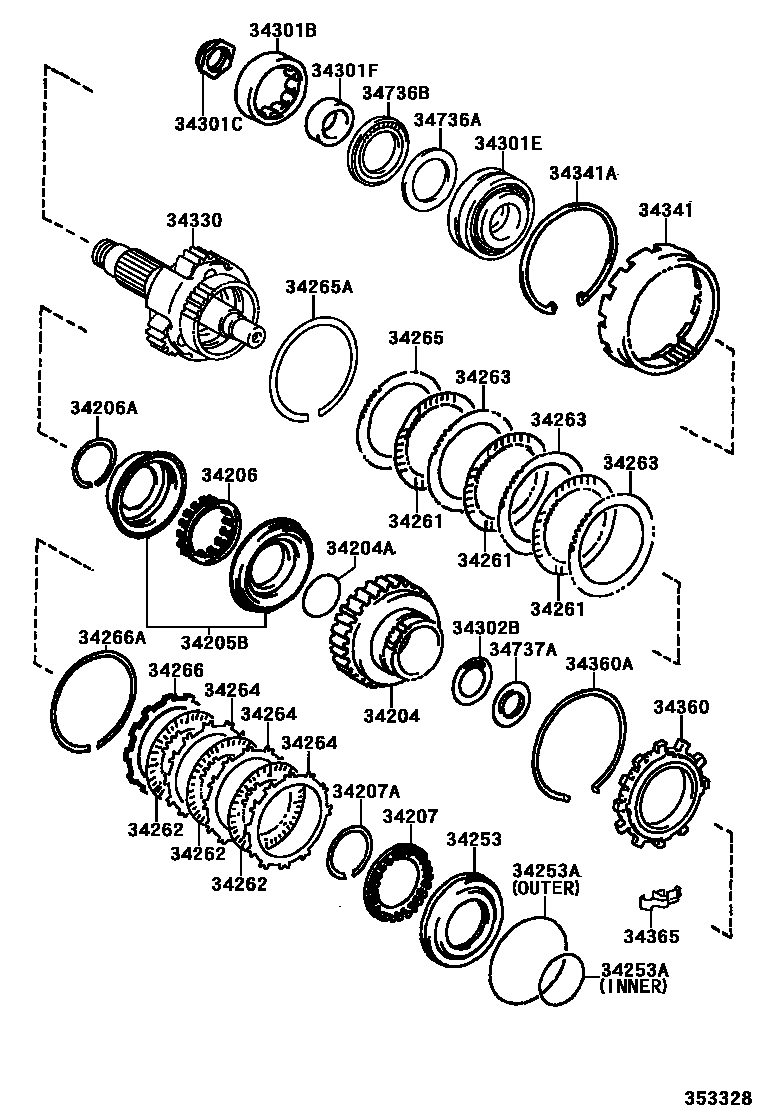

OVERDRIVE GEAR (ATM)
34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)
(L)
(L)
(J)
(J)
34205BPISTON SET, UNDERDRIVE CLUTCH
TOYOTA:REFER 35-01
(L)
(J)
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
(L)
(L)
(J)
(J)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
(L)
(J)
34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
(L)
(J)
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
(L),OUTER
OUTER
OUTER,TMC:SEE 35-01
INNER
OUTER,AISIN:SEE35-01
(J),OUTER
OUTER
34262DISC, UNDERDRIVE CLUTCH, NO.2
(L)
TOYOTA:REFER 35-01
(J)
AISIN:REFER 35-01
34263PLATE, UNDERDRIVE CLUTCH, NO.1
TOYOTA:REFER 35-01
(L)
AISIN:REFER 35-01
(J)
34264PLATE, UNDERDRIVE CLUTCH, NO.2
TOYOTA:REFER 35-01
(L)
AISIN:REFER 35-01
(J)
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
T=3.0 MARK 1
T=3.2 MARK 2
T=3.4 MARK 3
T=3.0 MARK 1
T=3.0 MARK 1,(L)
T=3.1 MARK 4
T=3.1 MARK 4,TOYOTA:REFER 35-01
T=3.2 MARK 2
T=3.2 MARK 2,(L)
T=3.3 MARK 5
T=3.3 MARK 5,TOYOTA:REFER 35-01
T=3.4 MARK 3
T=3.4 MARK 3,(L)
T=3.0 MARK 1,(J)
T=3.2 MARK 2,(J)
T=3.4 MARK 3,(J)
T=3.0 MARK A
T=3.2 MARK B
T=3.4 MARK C
T=3.1 MARK 4,AISIN:REFER 35-01
T=3.3 MARK 5,AISIN:REFER 35-01
T=3.1 MARK G
T=3.3 MARK H
T=3.5 MARK J
T=2.9 MARK F
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
(L)
(L)
(J)
(J)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
T=3.0 MARK 1
(L),T=3.0 MARK 1
T=3.2 MARK 2
(L),T=3.2 MARK 2
(L),T=3.4 MARK 3
T=3.4 MARK 3
T=3.0 MARK A
T=3.2 MARK B
T=3.4 MARK C
T=3.6,MARK 4
T=2.8,MARK 5
(J),T=3.0 MARK 1
(J),T=3.2 MARK 2
(J),T=3.4 MARK 3
T=3.0
T=3.2
T=3.4
T=3.6
T=2.8
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
(L)
(J)
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
(L)
(L)
(J)
(J)
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
(J)
(L)
34301EBEARING, TAPERED ROLLER (FOR UNDERDRIVE)
(L)
sub90363-A0005
AISIN:REFER 35-01
TOYOTA:REFER 35-01
(J)
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
TOYOTA:REFER 35-01
(L)
(J)
AISIN:REFER 35-01
34330GEAR ASSY, UNDERDRIVE PLANETARY
sub34330-45010
sub34330-33030
AISIN:REFER 35-01
sub34330-28H01
sub34330-33020
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
(J)
(L)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
TOYOTA:REFER 35-01
AISIN:REFER 35-01
34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
(L)
(L)
(J)
(J)
34365RETAINER, OUTER RACE
34736ARACE, THRUST BEARING UNDERDRIVE, NO.2
(L),T=3.8
T=3.5
T=3.8
(J),T=3.5
T=3.5
T=3.8
(J),T=3.8
34736BBEARING, THRUST NEEDLE ROLLER
(L)
(J)
34737ARACE, THRUST BEARING UNDERDRIVE, NO.3
(L)
(J)
31 parts on this diagram · 2 diagrams in section
