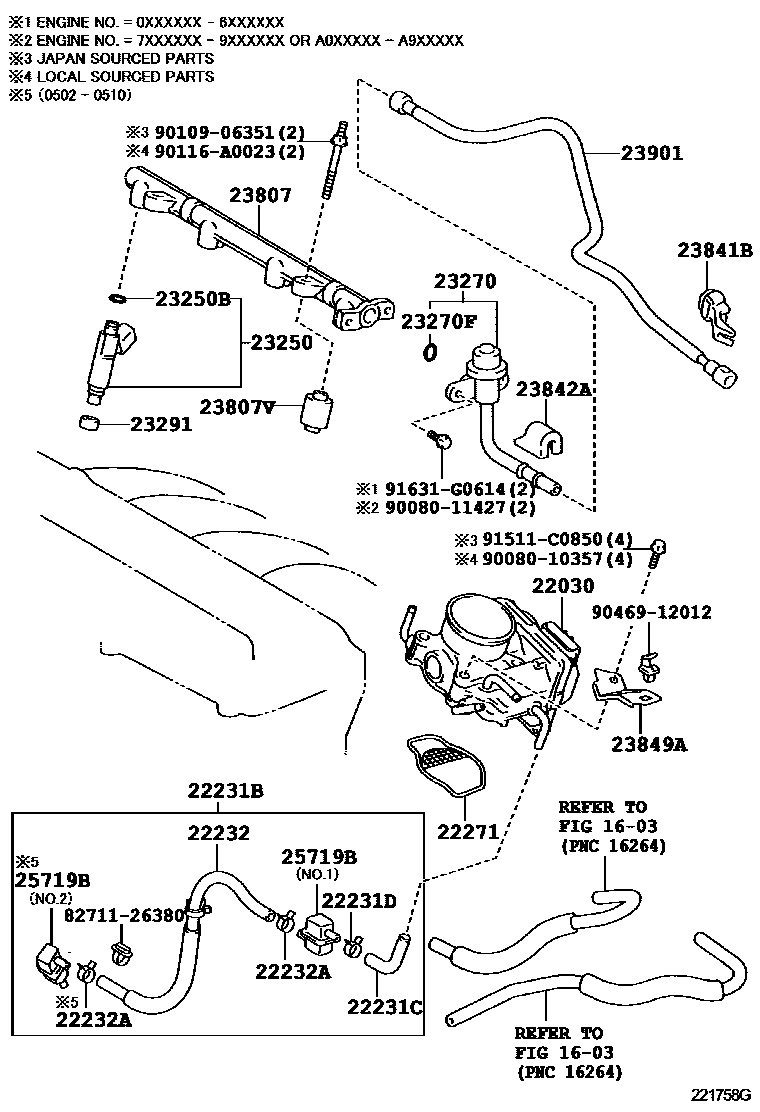

FUEL INJECTION SYSTEM
1603
22231CHOSE, THROTTLE BODY, NO.1
22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22232HOSE, THROTTLE BODY, NO.2
22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)
23250INJECTOR ASSY, FUEL
(L)
(L)
(L)
CALIFORNIA SPEC,(L),*108
(J)
CALIFORNIA SPEC,*107,(J),*108
CALIFORNIA SPEC
(J)
23250BRING, O(FOR FUEL INJECTOR)
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
CALIFOLNIA SPEC,ORANGE
CALIFORNIA SPEC
ORANGE
BLACK
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
sub23841-21050
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
CALIFORNIA SPEC
23901TUBE SUB-ASSY, FUEL
CALIFORNIA SPEC
25719BTANK, VACUUM SURGE
NO.1
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
9008010357
main90080-10357
9008011427
main90080-11427
9010906351
main90109-06351
90116A0023
main90116-A0023
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
28 parts on this diagram · 6 diagrams in section
