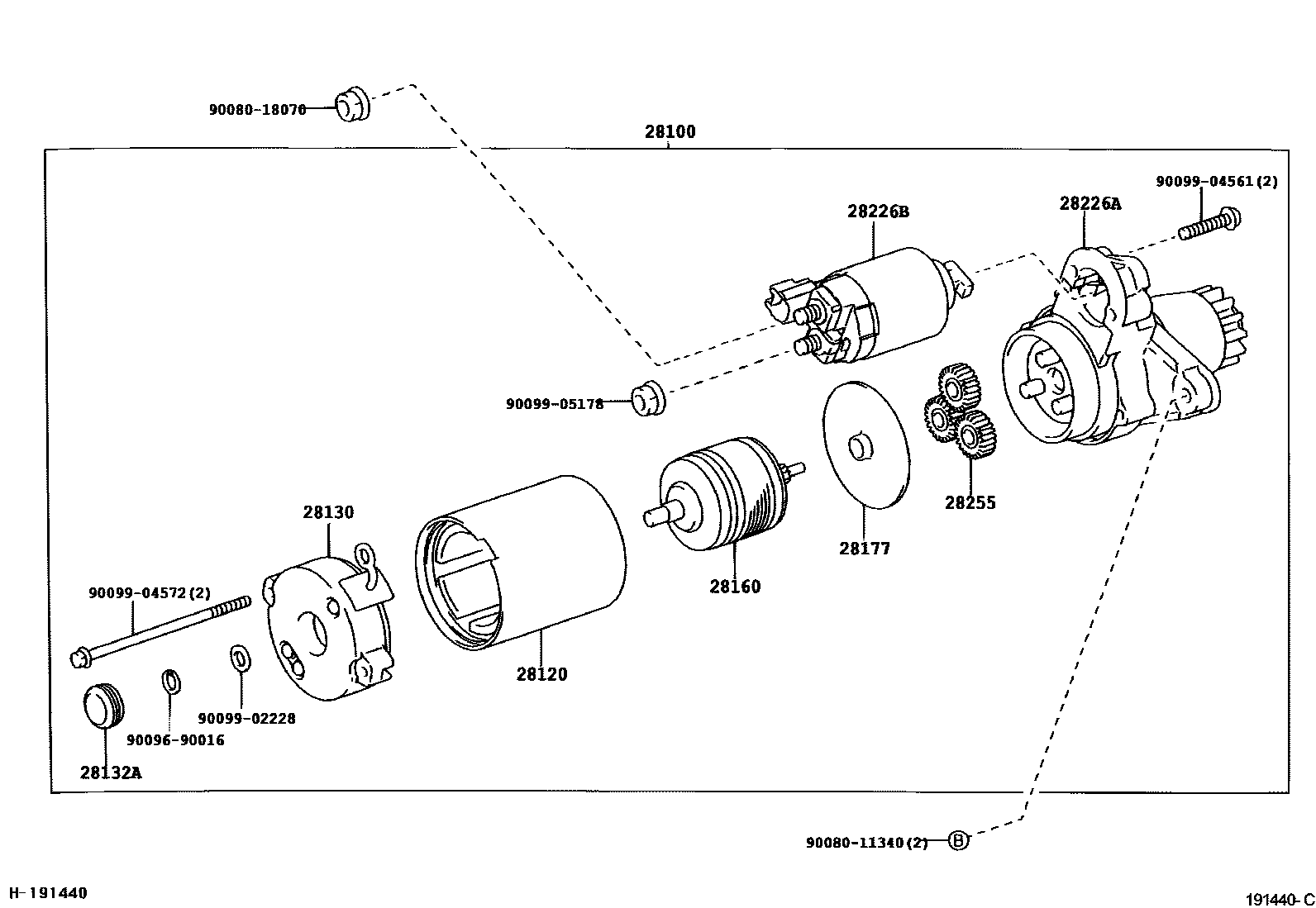

STARTER

28100STARTER ASSY

main28100-0A010i3MZFE..MCV31..NAP200309-200406

12V 1.7KW

sub28100-0A011

main28100-28040i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200108

12V 1.6KW

sub28100-28041

main28100-28041i1MZFE..MCV30..NAP..SE..5FC;2AZFE,1MZFE..ACV30,MCV30..NAP..4FC200108-200406

12V 1.6KW

sub28100-28042

28120YOKE ASSY, STARTER

main28120-28040i3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..(LE,XLE)..5FC200107-200406

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i3MZFE..MCV31..NAP200309-200406

main28130-28040i1MZFE..MCV30..NAP..(LE,XLE)..5FC200107-200406

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

28160ARMATURE ASSY, STARTER

main28160-28040i1MZFE..MCV30..NAP..SE..5FC;2AZFE,1MZFE..ACV30,MCV30..NAP..4FC200107-200406

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..(LE,XLE)..5FC200107-200406

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..NAP200107-200406

28226BSTARTER KIT, REPAIR SERVICE

main28226-28050i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200205

sub28226-28051

main28226-28051i1MZFE..MCV30..NAP..SE..5FC;2AZFE,1MZFE..ACV30,MCV30..NAP..4FC200205-200406

28255GEAR, PLANET

main28255-20020i3MZFE..MCV31..NAP200309-200406

main28255-28040i2AZFE,1MZFE..ACV30,MCV30..NAP200107-200406

9008011340

main90080-11340

9008018070

main90080-18070

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

16 parts on this diagram · 1 diagram in section
