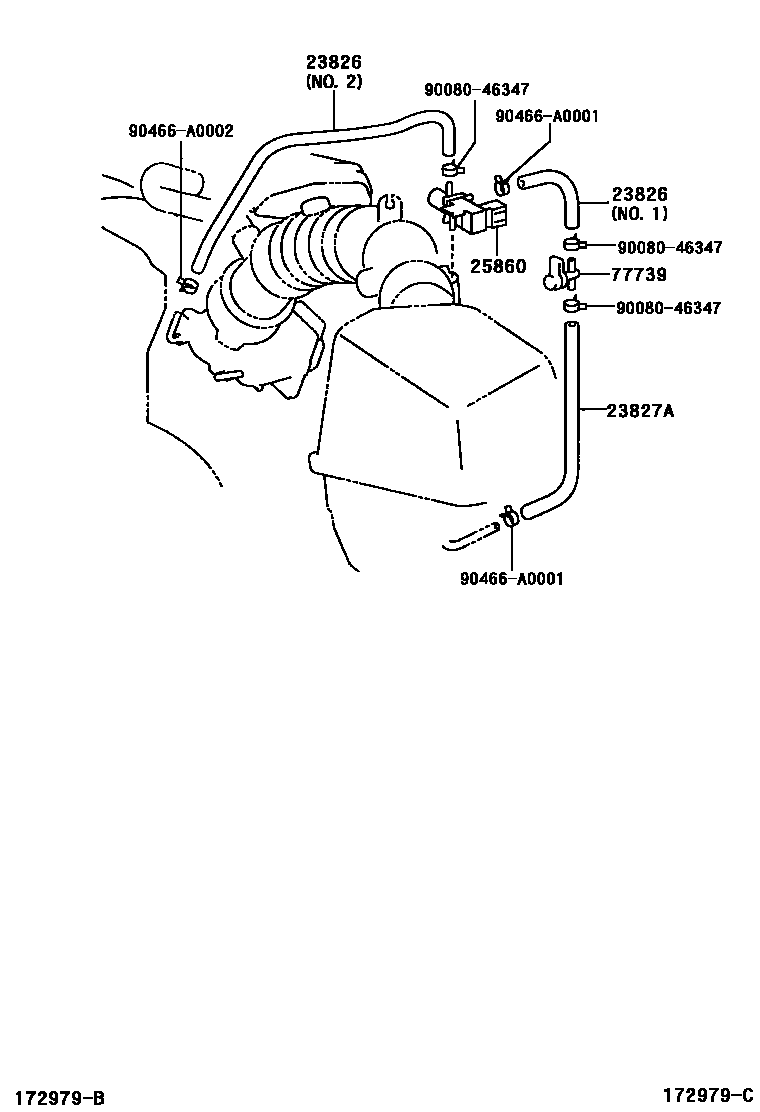

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0A050i1MZFE..MCV30..NAP200107-200301

main23826-0A051i1MZFE,3MZFE..MCV3#..NAP200301-200406

main23826-0H010i2AZFE..ACV30..NAP..4FC200302-200406

CALIFORNIA SPEC,NO.1

main23826-0H010i2AZFE..ACV30..NAP..4FC200107-200406

NO.1

main23826-0H020i2AZFE..ACV30..NAP200107-200309

NO.2

main23826-0H020i2AZFE..ACV30..NAP..4FC200302-200406

CALIFORNIA SPEC,NO.2

main23826-0H040i2AZFE..ACV30..NAP..4FC200309-200406

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0A040i1MZFE..MCV30..NAP200107-200301

main23827-0A041i1MZFE,3MZFE..MCV3#..NAP200301-200406

NO.2

main23827-0H010i2AZFE..ACV30..NAP..4FC200107-200406

main23827-20060i3MZFE..MCV31..NAP200309-200406

NO.1

main23827-20090i1MZFE..MCV30..NAP200301-200309

NO.1

main23827-20100i1MZFE..MCV30..NAP200309-200406

NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0H020i2AZFE..ACV30..NAP..4FC200302-200406

CALIFORNIA SPEC

main25860-0H020i2AZFE..ACV30..NAP200107-200309

main25860-0H050i2AZFE..ACV30..NAP200309-200406

main25860-62010i1MZFE..MCV30..NAP..(LE,XLE)200107-200406

77739VALVE, EVAP SERVICE PORT

main77739-06010iACV30..NAP..4FC200107-200406

sub77739-33010

9008046347

main90080-46347

90466A0001

main90466-A0001

90466A0002

main90466-A0002
