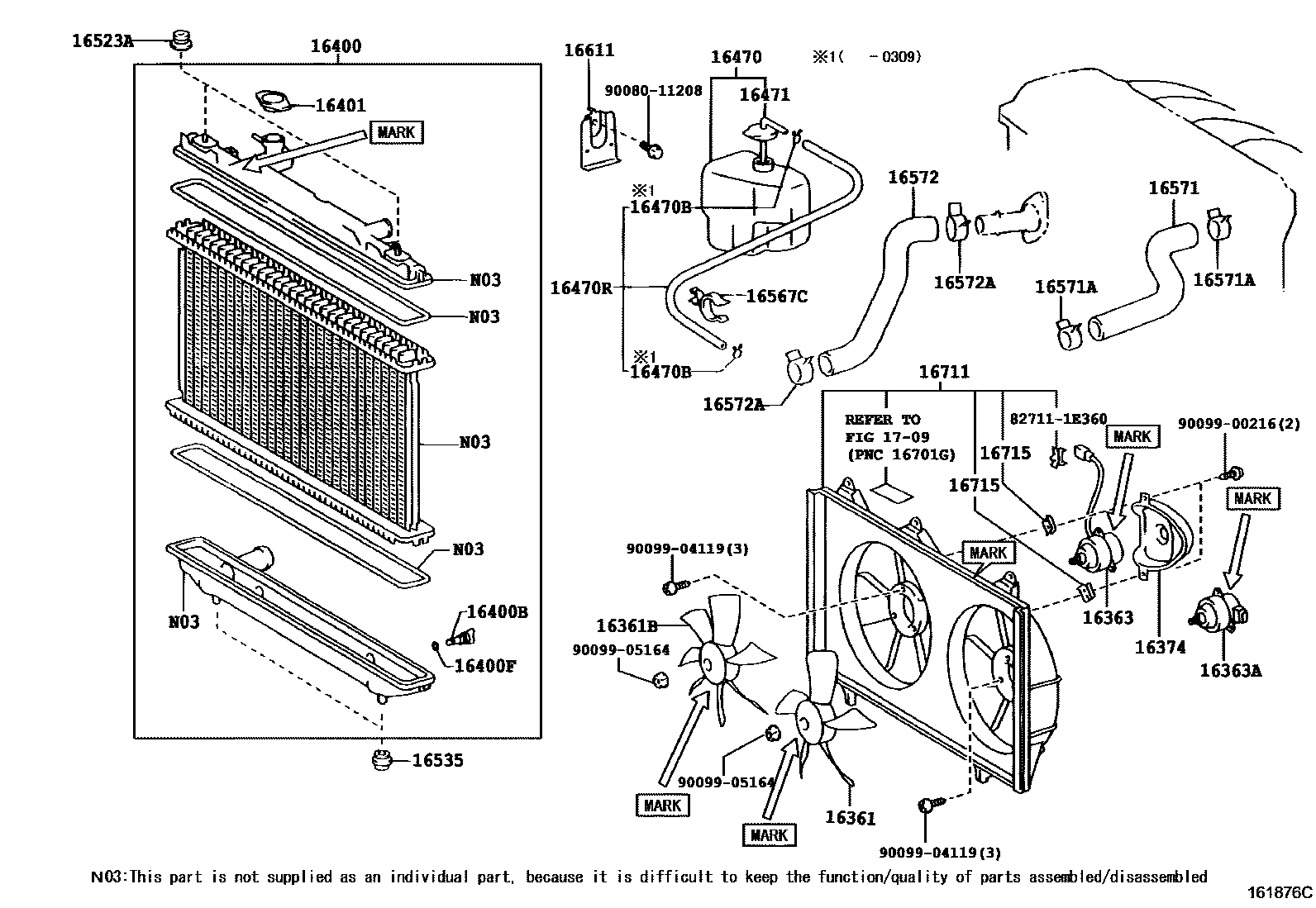

RADIATOR & WATER OUTLET
16361FAN
MARK 589
MARK 338
MARK 591
MARK 324
MARK 378
16361BFAN, NO.2
MARK 590
MARK 368
MARK 592
MARK 357
TOWING PACKAGE,MARK 486
16363MOTOR, COOLING FAN
MARK 16363-0A170
MARK 16363-23020
MARK 16363-28150
16363AMOTOR, COOLING FAN, NO.2
MARK 16363-27040
MARK 16363-27050
16374INSULATOR, COOLING FAN MOTOR
MARK OF FAN SHROUD=2
MARK OF FAN SHROUD=3
16400RADIATOR ASSY
MARK OF RADIATOR = 0A230
MARK OF RADIATOR = 0A420
MARK 0H030
MARK = 0H131
MARK 0H131
MARK=0H200 OR 0H011
(J)
MARK OF RADIATOR = 2026
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-31520
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
*H,L=625
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
sub16523-0A020
16535SUPPORT, RADIATOR, LOWER
16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
MARK OF FAN SHROUD=2
MARK OF FAN SHROUD=3
16715BRACKET, FAN SHROUD
MARK OF FAN SHROUD=3
1709
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9008011208
main90080-11208
9009900216
main90099-00216
9009904119
main90099-04119
9009905164
main90099-05164
29 parts on this diagram · 4 diagrams in section
