ELECTRONIC FUEL INJECTION SYSTEM

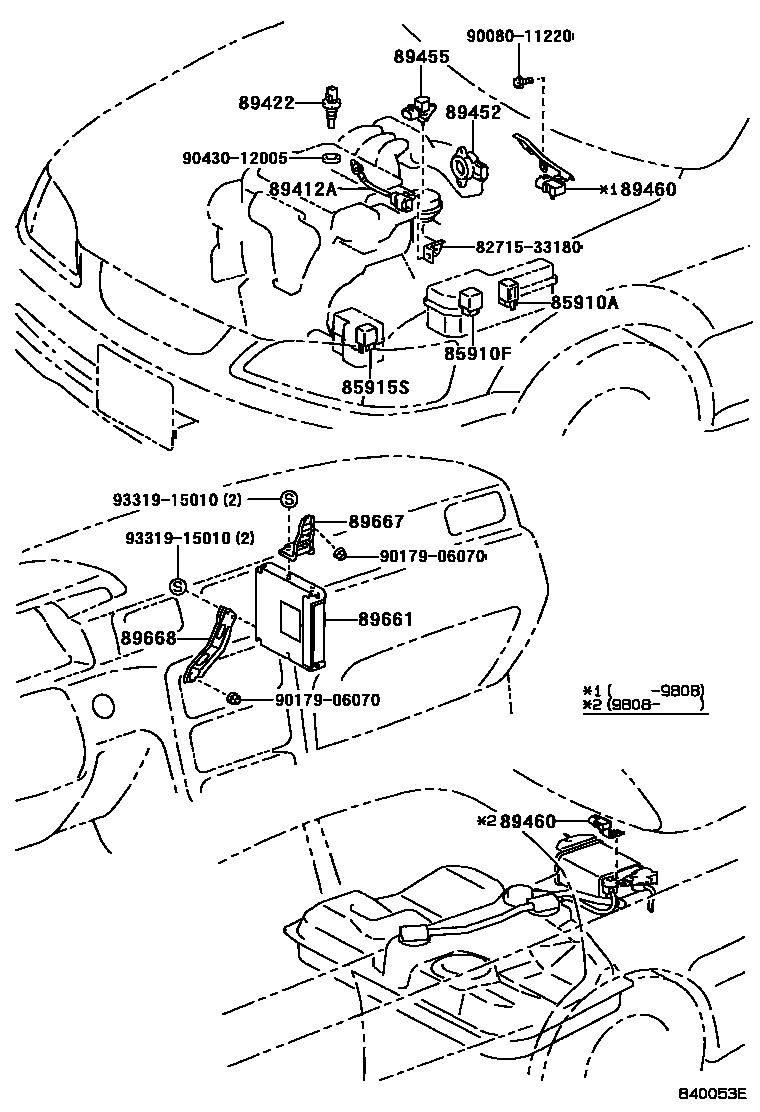

Parts diagram
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90084-98031i199607
85910FRELAY, COMPUTER (FOR EFI)
main90084-98031i199607
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
main90084-98031i199708-199712
89412ASENSOR, E.G.R GAS TEMPERATURE
main89412-33050i199607
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-20010i199607-199908
main89422-35010i199607-199908
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
main89452-06020i199708-200009
CTS
main89452-06020i199708-200005
(L)
main89452-33030i199607-200009
AISAN
main89452-33040i199607-200005
(J)
sub89452-33030
89455SENSOR, EGR VALVE POSITION
main89455-33020i199607
89460SENSOR ASSY, VAPOR PRESSURE
main89460-06030i199607-199808
main89460-06050i199708-199908
main89460-07030i199908
89661COMPUTER, ENGINE CONTROL
main89661-06320i199607-199703
sub89661-06321
main89661-06321i199703-199708
main89661-06330i199607-199703
W(TRACTION CONTROL)
sub89661-06331
main89661-06331i199703-199708
W(TRACTION CONTROL)
main89661-06340i199607-199703
TAIWAN SPEC
sub89661-06341
main89661-06341i199703-199708
TAIWAN SPEC
main89661-06350i199607-199705
sub89661-06351
main89661-06351i199705-199708
main89661-06360i199607-199705
sub89661-06361
main89661-06361i199705-199708
main89661-06370i199607-199705
CALIFORNIA SPEC
sub89661-06371
main89661-06371i199705-199708
CALIFORNIA SPEC
sub89661-06372
main89661-06380i199607-199705
CALIFORNIA SPEC
sub89661-06381
main89661-06381i199705-199708
CALIFORNIA SPEC
main89661-06390i199607-199705
TAIWAN SPEC
sub89661-06391
main89661-06391i199705-199708
TAIWAN SPEC
main89661-06400i199608-199708
main89661-06480i199708-199710
sub89661-06481
main89661-06481i199710-199803
sub89661-06482
main89661-06482i199803-199808
main89661-06490i199708-199710
sub89661-06491
main89661-06491i199710-199803
sub89661-06492
main89661-06492i199803-199808
main89661-06500i199708-199803
CALIFORNIA SPEC
sub89661-06501
main89661-06501i199803-199808
CALIFORNIA SPEC
sub89661-06502
main89661-06510i199708-199803
CALIFORNIA SPEC
sub89661-06511
main89661-06511i199803-199808
CALIFORNIA SPEC
main89661-06520i199708-199710
TAIWAN SPEC
sub89661-06521
main89661-06521i199710-199803
TAIWAN SPEC
sub89661-06522
main89661-06522i199803-199810
KOREA SPEC OR TAIWAN SPEC
main89661-06530i199708-199710
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06531
main89661-06531i199710-199803
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06532
main89661-06532i199803-199808
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06540i199708-199710
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06541
main89661-06541i199710-199803
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06542
main89661-06542i199803-199808
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06560i199708-199803
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06561
main89661-06561i199803-199808
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06570i199708-199802
sub89661-06571
main89661-06571i199802-199808
main89661-06580i199708-199802
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06581
main89661-06581i199802-199808
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06590i199708-199802
W(TRACTION CONTROL)
sub89661-06591
main89661-06591i199802-199808
W(TRACTION CONTROL)
main89661-06601i199708-199711
CALIFORNIA SPEC
sub89661-06602
main89661-06602i199711-199802
CALIFORNIA SPEC
sub89661-06603
main89661-06603i199802-199808
CALIFORNIA SPEC
main89661-06611i199708-199711
CALIFORNIA SPEC & W(TRACTION CONTROL)
sub89661-06612
main89661-06612i199711-199802
CALIFORNIA SPEC & W(TRACTION CONTROL)
sub89661-06613
main89661-06613i199802-199808
CALIFORNIA SPEC & W(TRACTION CONTROL)
main89661-06620i199708-199802
TAIWAN SPEC
sub89661-06621
main89661-06621i199802-199810
TAIWAN SPEC
main89661-06630i199808-199810
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06631
main89661-06631i199810-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06640i199808-199810
CALIFORNIA SPEC
sub89661-06641
main89661-06641i199810-199908
CALIFORNIA SPEC
main89661-06650i199708-199710
TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06651
main89661-06651i199710-199803
TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06652
main89661-06652i199803-199810
TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(ALARM ONLY))
main89661-06660i199808-199811
sub89661-06661
main89661-06661i199811-199908
main89661-06670i199808-199811
sub89661-06671
main89661-06671i199811-199908
main89661-06680i199808-199811
CALIFORNIA SPEC
sub89661-06681
main89661-06681i199811-199908
CALIFORNIA SPEC
sub89661-06682
main89661-06690i199808-199811
CALIFORNIA SPEC
sub89661-06691
main89661-06691i199811-199908
CALIFORNIA SPEC
main89661-06710i199808-199811
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06711
main89661-06711i199811-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06730i199808-199811
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06731
main89661-06731i199811-199908
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06771i199810-199908
TAIWAN SPEC
main89661-06780i199810-199811
KOREA SPEC OR TAIWAN SPEC
sub89661-06781
main89661-06781i199811-199908
KOREA SPEC OR TAIWAN SPEC
main89661-06790i199810-199811
KOREA SPEC OR TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-06791
main89661-06791i199811-199908
KOREA SPEC OR TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-06840i199908-200002
W(TRACTION CONTROL)
sub89661-06841
main89661-06841i200002-200008
DENSO
main89661-06850i199908-200002
CALIFORNIA SPEC
sub89661-06851
main89661-06850i200008-200107
CALIFORNIA SPEC & W(TRACTION CONTROL)
sub89661-06851
main89661-06851i200002-200008
CALIFORNIA SPEC
main89661-06860i199908-200002
TAIWAN SPEC
sub89661-06861
main89661-06861i200002-200008
TAIWAN SPEC
main89661-06890i200008-200011
TAIWAN SPEC
sub89661-06891
main89661-06891i200011-200107
TAIWAN SPEC
main89661-0W110i199908-200002
sub89661-0W111
main89661-0W111i200002-200008
DELCO
main89666-06010i199908-200002
sub89666-06011
main89666-06011i200002-200008
main89666-06020i199908-200001
sub89666-06021
main89666-06021i200001-200008
main89666-06030i199908-200002
CALIFORNIA SPEC
sub89666-06031
main89666-06031i200002-200006
CALIFORNIA SPEC
sub89666-06032
main89666-06032i200006-200008
CALIFORNIA SPEC
sub89666-06110
main89666-06040i199908-200002
CALIFORNIA SPEC
sub89666-06041
main89666-06041i200002-200006
CALIFORNIA SPEC
sub89666-06042
main89666-06042i200006-200008
CALIFORNIA SPEC
sub89666-06120
main89666-06060i199908-200005
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
sub89666-06061
main89666-06061i200005-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
main89666-06080i199908-200005
CALIFORNIA SPEC
sub89666-06081
main89666-06080i199908-200005
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
sub89666-06081
main89666-06081i200005-200006
CALIFORNIA SPEC
sub89666-06082
main89666-06081i200005-200006
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
sub89666-06082
main89666-06082i200006-200008
CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)
sub89666-06130
main89666-06082i200006-200008
CALIFORNIA SPEC
sub89666-06130
main89666-06090i199908-200001
TAIWAN SPEC
sub89666-06091
main89666-06091i200001-200008
TAIWAN SPEC
main89666-06100i199908-200001
TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
sub89666-06101
main89666-06100i199908-200001
KOREA SPEC OR TAIWAN SPEC
sub89666-06101
main89666-06101i200001-200008
KOREA SPEC OR TAIWAN SPEC
main89666-06101i200001-200008
TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
main89666-06110i200008-200107
sub89666-06111
main89666-06120i200008-200107
sub89666-06121
main89666-06130i200008-200107
W(ENGINE IMMOBILIZER SYSTEM)
sub89666-06131
main89666-06140i200009-200107
TAIWAN SPEC
main89666-06150i200009-200107
TAIWAN SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
main89666-06180i200008-200011
sub89666-06181
main89666-06181i200011-200104
sub89666-06182
main89666-06182i200104-200107
main89666-06190i200008-200011
sub89666-06191
main89666-06191i200011-200104
sub89666-06192
main89666-06192i200104-200107
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-06050i199607-199908
main89667-06050i199908-200008
W(TRACTION CONTROL)
main89667-06060i199708-199808
main89667-06060i199808-199908
TAIWAN SPEC
main89667-0W020i199908-200008
main89667-0W030i199908
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-06050i199607-199908
main89668-06050i199908-200008
W(TRACTION CONTROL)
main89668-06060i199708-199808
main89668-06060i199808-199908
TAIWAN SPEC
main89668-0W020i199908-200008
main89668-0W030i199908
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
8271533180BRACKET,WIRING HARNESS CLAMP
main82715-33180
9008011220
main90080-11220
9017906070
main90179-06070
9043012005
main90430-12005
9331915010
main93319-15010

16 parts on this diagram · 2 diagrams in section
